Description

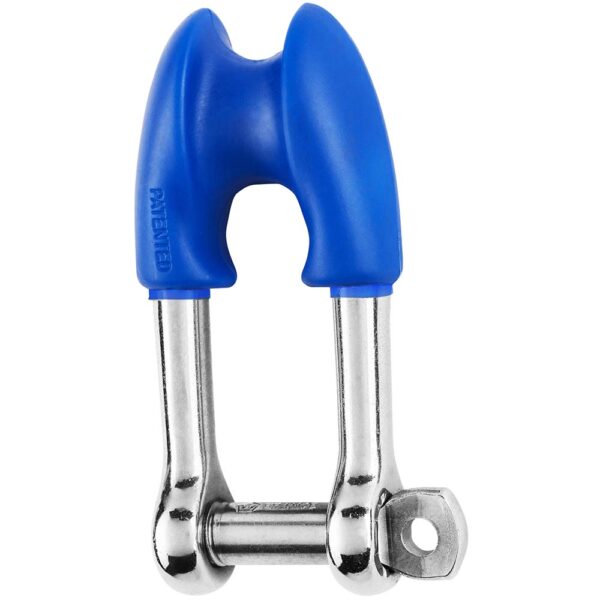

WICHARD 13/32 CAPTIVE THIMBLE SHACKLE
Thimble Shackle - Captive Pin - Diameter 10mm - 13/32"
Features:
- Thimble shackle with captive pin forged in grade 316L stainless steel
- Allows to spliced a rope without adding an additional thimble
- With the captive pin, no risk to lose the pin
- Outstanding working and breaking loads
Applications:
- Mainsheet halyards
- Max rope size: 16 mm
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 3350
- Breaking load (lb) 11020
- Weight (lb) 0.322

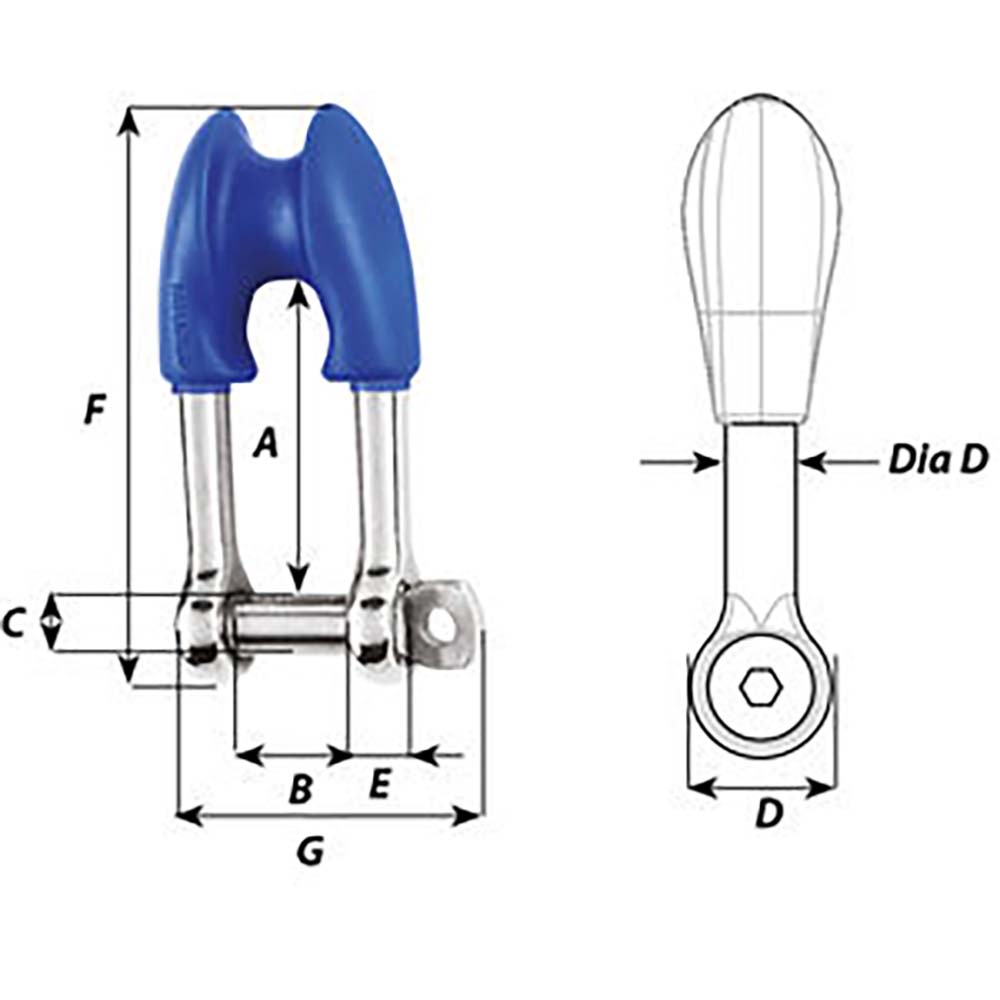

Dimensions (see 2nd image):
- A (inch) 2-1/64"
- B (inch) 25/32"
- C (inch) 25/64"
- D (inch) 25/32"
- D diameter (inch) 25/64"
- E (inch) 23/64"
- F (inch) 3-47/64"
- G (inch) 2-1/8"
Product SKU: 93132
Product Brand: Wichard Marine
Product Currency: USD
Product Price: 118.62
Price Valid Until: 1970-01-01
WICHARD 13/32 CAPTIVE THIMBLE SHACKLE
Thimble Shackle – Captive Pin – Diameter 10mm – 13/32″
Features:
- Thimble shackle with captive pin forged in grade 316L stainless steel
- Allows to spliced a rope without adding an additional thimble
- With the captive pin, no risk to lose the pin
- Outstanding working and breaking loads
Applications:
- Mainsheet halyards
- Max rope size: 16 mm
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 3350
- Breaking load (lb) 11020
- Weight (lb) 0.322
Dimensions (see 2nd image):
- A (inch) 2-1/64″
- B (inch) 25/32″
- C (inch) 25/64″
- D (inch) 25/32″
- D diameter (inch) 25/64″
- E (inch) 23/64″
- F (inch) 3-47/64″
- G (inch) 2-1/8″
You have questions please contact us
Additional information
| Weight | 0.4 lbs |
|---|---|
| Dimensions | 6 × 2 × 2 in |
| Brand | Wichard Marine |
| Manufacturer Part Number | 01495 |
| Model | 01495 |
| UPC | 768536014952 |
| Type | Wichard Marine |
