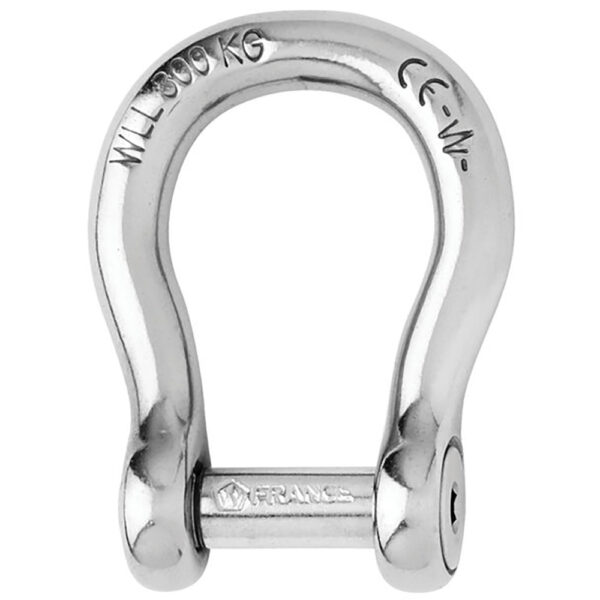

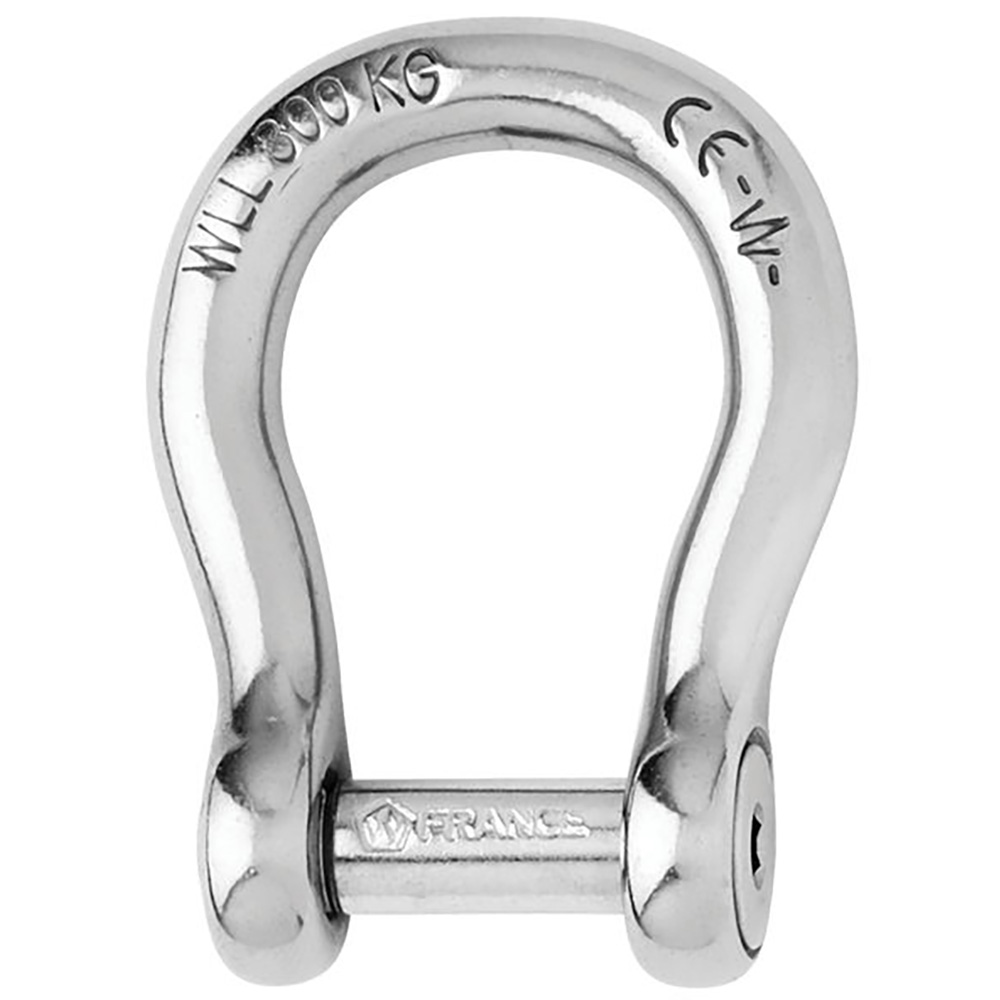

Wichard Self-Locking Allen Head Pin Bow Shackle – 10mm Diameter – 13/32″

Self-Locking Allen Head Pin Bow Shackle - 10mm Diameter - 13/32"

Features:

• Self-locking twisted shackle with allen head pin forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e…)
• CE marking

Applications:

• Ideal to link chain and anchor
• On the halyard, avoids to damage the sails
• To be used when the clutter is reduced
• To be used when ample room is required

Specifications:

• Materials: 316 stainless steel grade
• Working load: (lb) 3170 / (kg) 1440
• WLL: (lb) 1890 / (kg) 860
• Breaking load: (lb) 9470 / (kg) 4300
• Weight: (lb) 0.293 / (g) 133

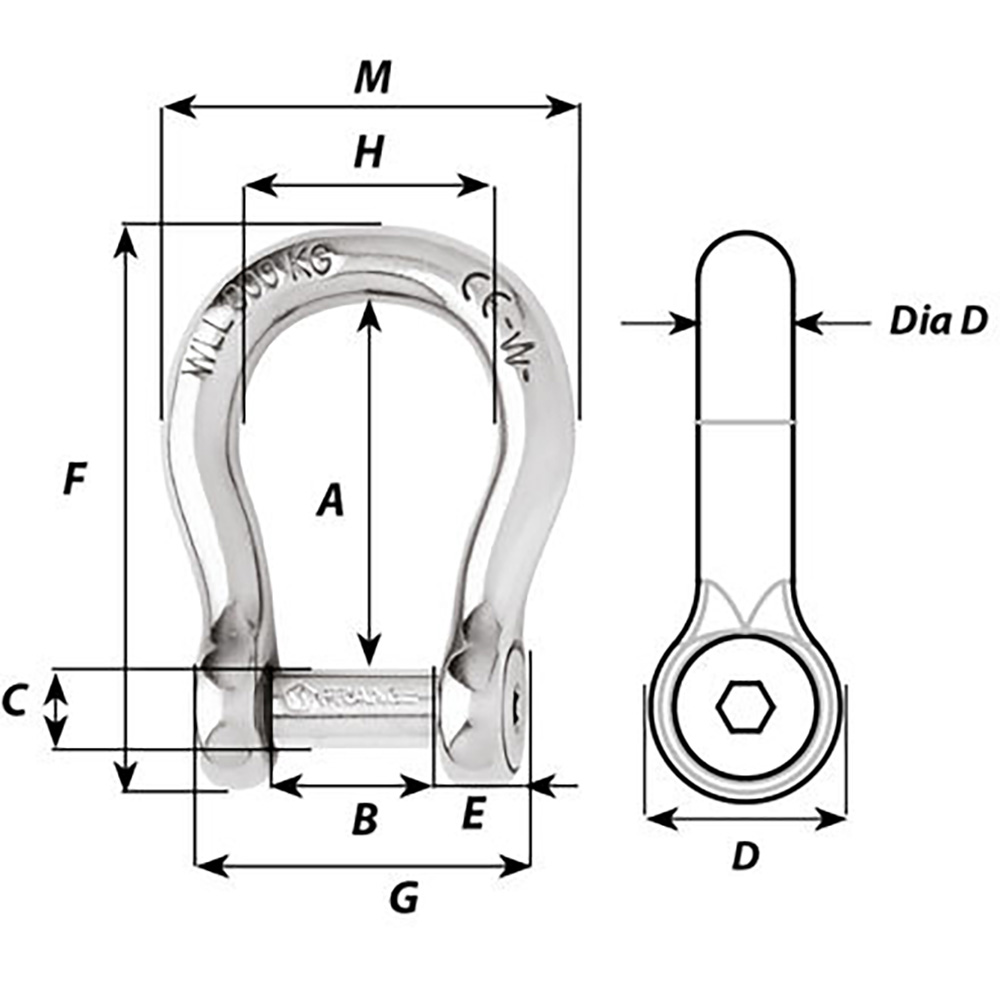

Dimensions:

• A: (inch) 1 27/32" / (mm) 47
• B: (inch) 25/32" / (mm) 20
• C: (inch) 25/64" / (mm) 10
• D: (inch) 25/32" / (mm) 20
• D diameter: (inch) 25/64" / (mm) 10
• E: (inch) 23/64" / (mm) 9
• F: (inch) 1 17/64" / (mm) 32
• M: (inch) 2 3/64" / (mm) 52

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
  WLL = Breaking load / 5

*Sold as an Individual

Product SKU: 97645
