Description

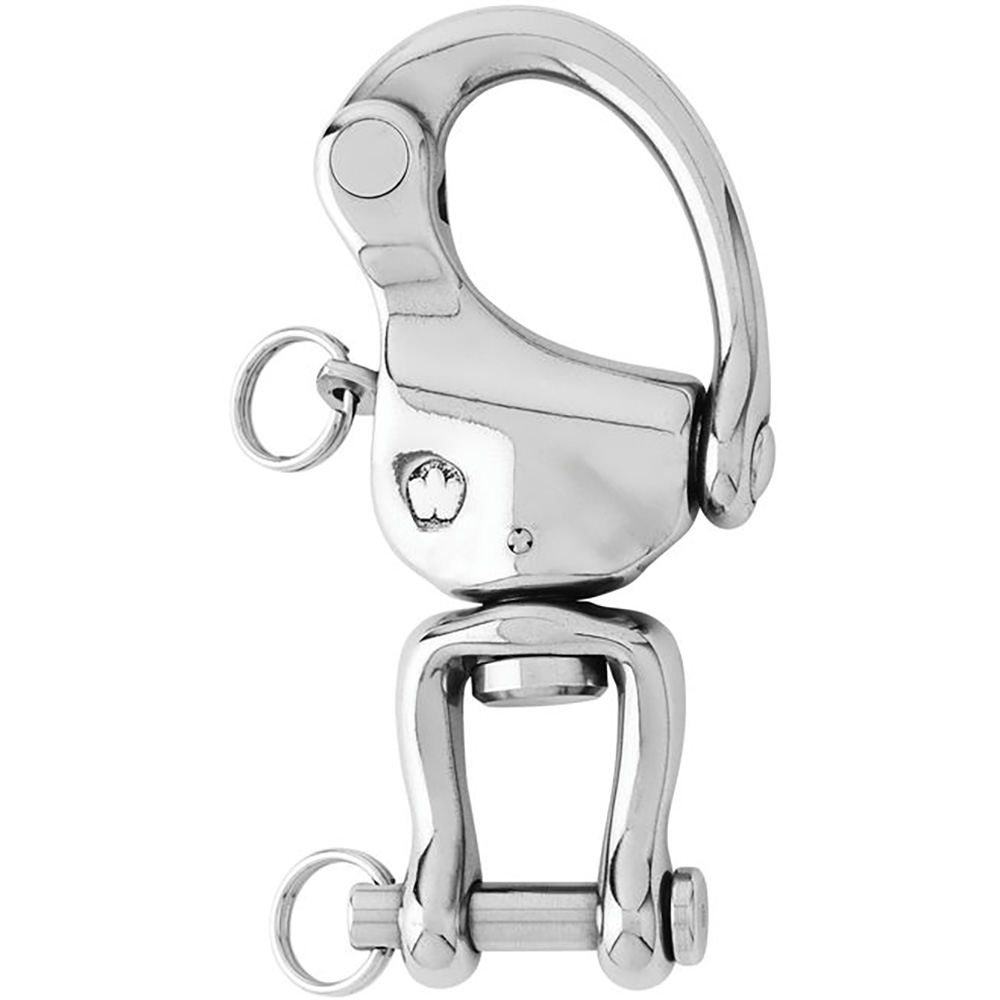

WICHARD 4 3/4 SNAP SWIVEL CLEVIS
HR Snap Shackle With Clevis Pin Swivel - 120mm Length - 4-23/32"
Features:
- HR Forged snap shackle (Grade 17.4 PH stainless steel) with clevis pin swivel
- Free rotation of the snap shackle thanks to the swivel eye
- The plunger pin is set captive into the hook and cannot become detached
- Excellent working and breaking loads
- Easy to open by pulling the plunger pin (possible to attach a lanyard)
Applications:
- Snap shackle applications
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 5290 / (kg) 2400
- Breaking load: (lb) 15430 / (kg) 7000
- Weight: (lb) 0.919 / (g) 417

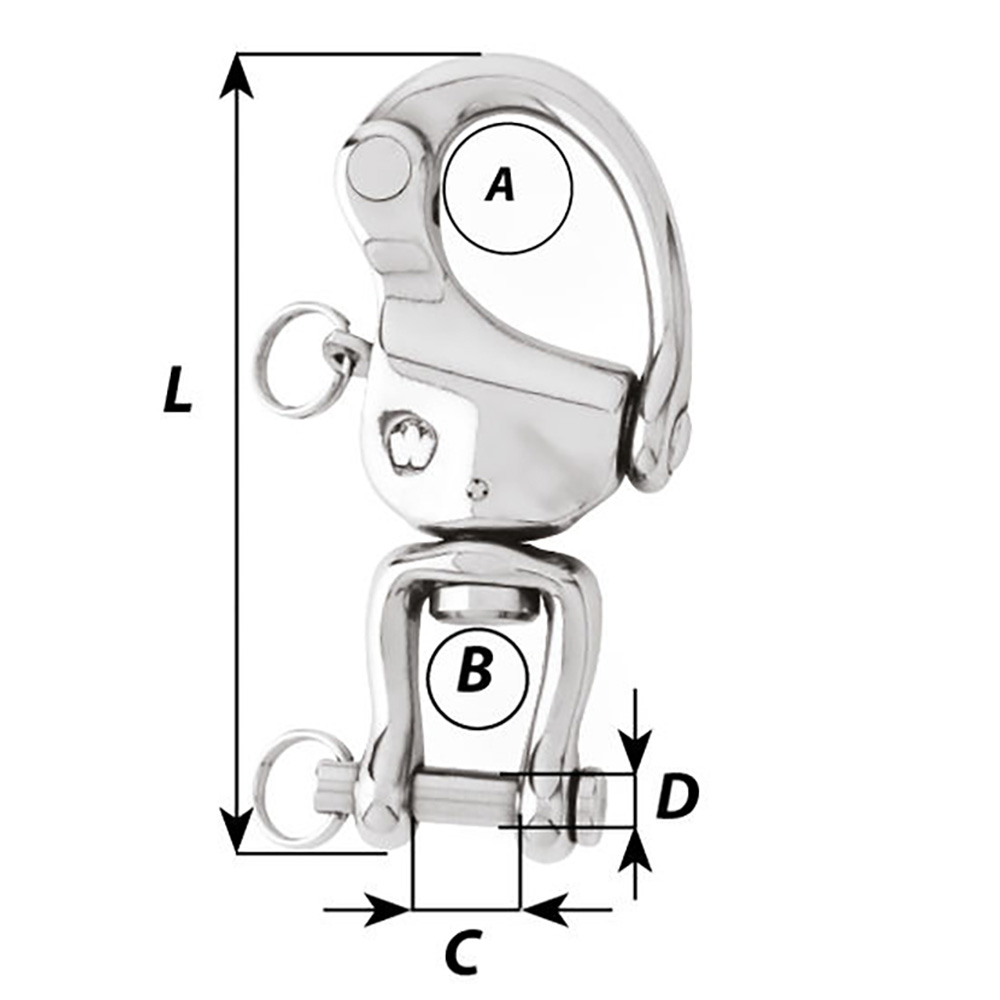

Dimensions:
- A: (inch) 1 1/32" / (mm) 26
- B: (inch) 1 1/16" / (mm) 27
- C: (inch) 45/64" / (mm) 18
- D diameter: (inch) 7/16" / (mm) 11
- Length: (inch) 4 23/32" / (mm) 120
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
Product SKU: 97656
Product Brand: Wichard Marine
Product Currency: USD
Product Price: 215.99
Price Valid Until: 1970-01-01
WICHARD 4 3/4 SNAP SWIVEL CLEVIS
HR Snap Shackle With Clevis Pin Swivel – 120mm Length – 4-23/32″
Features:
- HR Forged snap shackle (Grade 17.4 PH stainless steel) with clevis pin swivel
- Free rotation of the snap shackle thanks to the swivel eye
- The plunger pin is set captive into the hook and cannot become detached
- Excellent working and breaking loads
- Easy to open by pulling the plunger pin (possible to attach a lanyard)
Applications:
- Snap shackle applications
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 5290 / (kg) 2400
- Breaking load: (lb) 15430 / (kg) 7000
- Weight: (lb) 0.919 / (g) 417
Dimensions:
- A: (inch) 1 1/32″ / (mm) 26
- B: (inch) 1 1/16″ / (mm) 27
- C: (inch) 45/64″ / (mm) 18
- D diameter: (inch) 7/16″ / (mm) 11
- Length: (inch) 4 23/32″ / (mm) 120
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
You have questions please contact us
Additional information
| Weight | 0.95 lbs |
|---|---|
| Dimensions | 6 × 3 × 1 in |
| Brand | Wichard Marine |
| Manufacturer Part Number | 02478 |
| Model | 02478 |
| UPC | 768536024784 |
| Type | Wichard Marine |
