Description

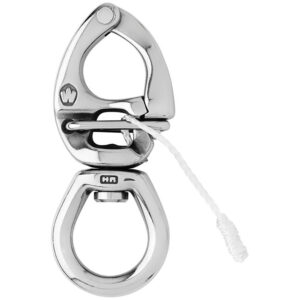

WICHARD 4 5/16 QUICK RELEASE LARGE EYE
HR Quick Release Snap Shackle With Large Bail-110mm Length - 4-21/64"
Features:
- HR forged (17.4 PH) quick-release snap shackle with large bail
- The opening is made by pulling the lanyard
- Perfect to attach several lines (spinnaker sheets...)
- Outstanding working and breaking loads
- Free rotation of the snap shackle thanks to the swivel
Applications:
- For spinnaker operations
- Perfect to attach several lines: spinnaker sheets...
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 3520 / (kg) 1600
- Breaking load: (lb) 6610 / (kg) 3000
- Weight: (lb) 0.353 / (g) 160

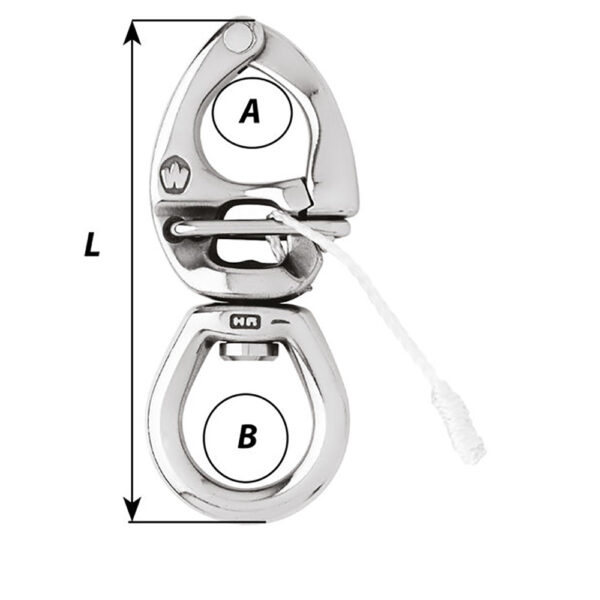

Dimensions:
- A: (inch) 25/32" / (mm) 20
- B: (inch) 1 3/64" / (mm) 26.5
- Length: (inch) 4 21/64" / (mm) 110
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
Product SKU: 97665
Product Brand: Wichard Marine
Product Currency: USD
Product Price: 183.86
Price Valid Until: 1970-01-01
WICHARD 4 5/16 QUICK RELEASE LARGE EYE
HR Quick Release Snap Shackle With Large Bail-110mm Length – 4-21/64″
Features:
- HR forged (17.4 PH) quick-release snap shackle with large bail
- The opening is made by pulling the lanyard
- Perfect to attach several lines (spinnaker sheets…)
- Outstanding working and breaking loads
- Free rotation of the snap shackle thanks to the swivel
Applications:
- For spinnaker operations
- Perfect to attach several lines: spinnaker sheets…
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 3520 / (kg) 1600
- Breaking load: (lb) 6610 / (kg) 3000
- Weight: (lb) 0.353 / (g) 160
Dimensions:
- A: (inch) 25/32″ / (mm) 20
- B: (inch) 1 3/64″ / (mm) 26.5
- Length: (inch) 4 21/64″ / (mm) 110
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
You have questions please contact us
Additional information
| Weight | 0.35 lbs |
|---|---|
| Dimensions | 4 × 2 × 1 in |
| Brand | Wichard Marine |
| Manufacturer Part Number | 02775 |
| Model | 02775 |
| Type | Wichard Marine |
