WICHARD 3/16 KEY PIN HR SHACKLE WITH BAR
HR Key Pin Shackle With Bar - 5mm Pin DiameterFeatures: Forged D shackle in HR stainless steel grade (17,4 PH)Outstanding working and breaking loadAn HR shackle can be up to 60% more resistant than a shackle in 316L stainless steelWLL: only for industrial applications (lifting i.e…)CE markingApplications:Applications requesting high loadsPerfect product for halyards or applications requiring opening/closing the shackle oftenDo not use it for mooring applicationsSpecifications: Materials: HR 17.4 PH stainless steel gradeWorking load: (lb) 1050 / (kg) 480 Breaking load: (lb) 3300 / (kg) 1500 Weight: (lb) 0.068 / (g) 31 Dimensions:A: (inch) 1 29/64" / (mm) 37 B: (inch) 33/64" / (mm) 13 C: (inch) 13/64" / (mm) 5 D: (inch) 7/16" / (mm) 11 E: (inch) 5/32" / (mm) 4 F: (inch) 1 59/64" / (mm) 49 G: (inch) 1 7/32" / (mm) 31 L: (inch) 15/32" / (mm) 12 Caption:Working Load (WL): For nautical applicationsWorking Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5High Resistance (HR)*Sold as an Individual
Product SKU: 97739
Product Brand: Wichard Marine
Product Currency: USD
Product Price: 50.02
Price Valid Until: 1970-01-01

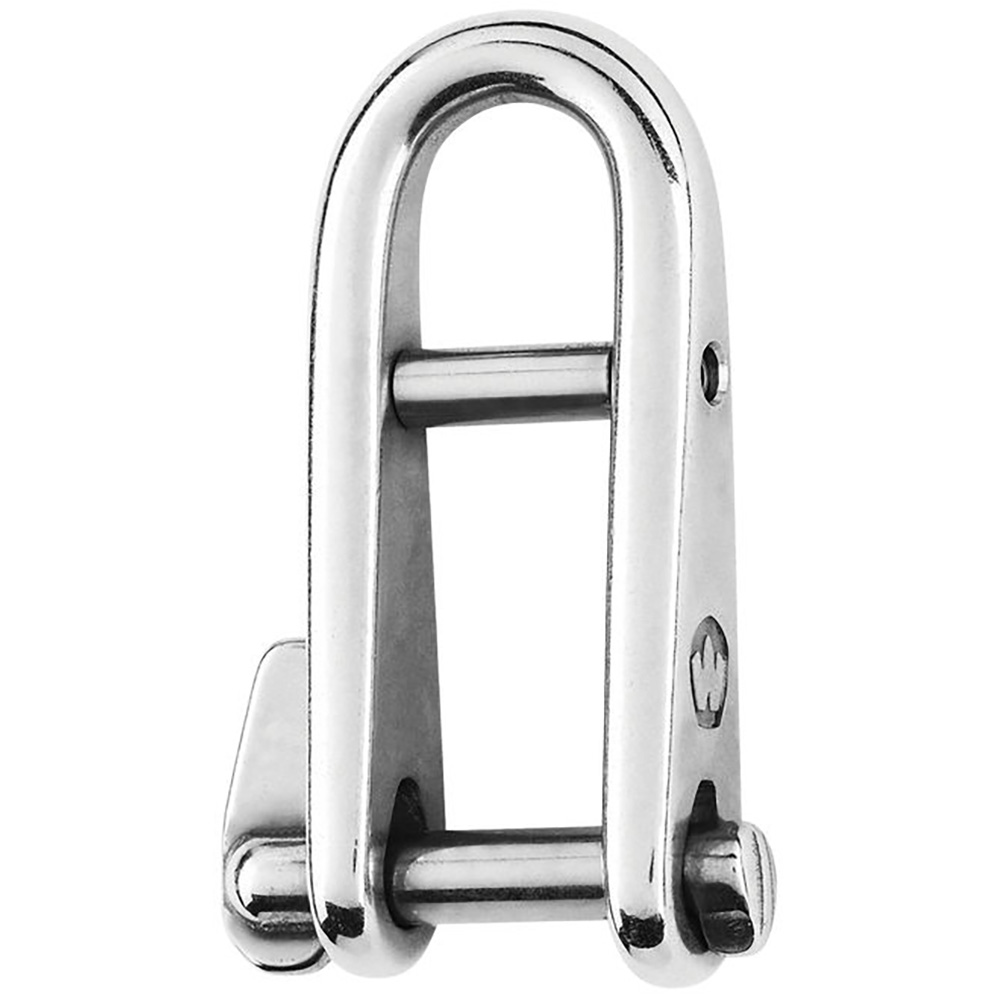

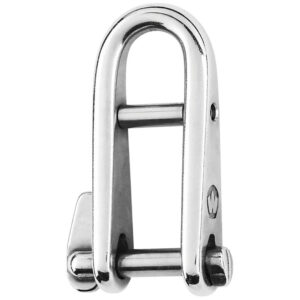

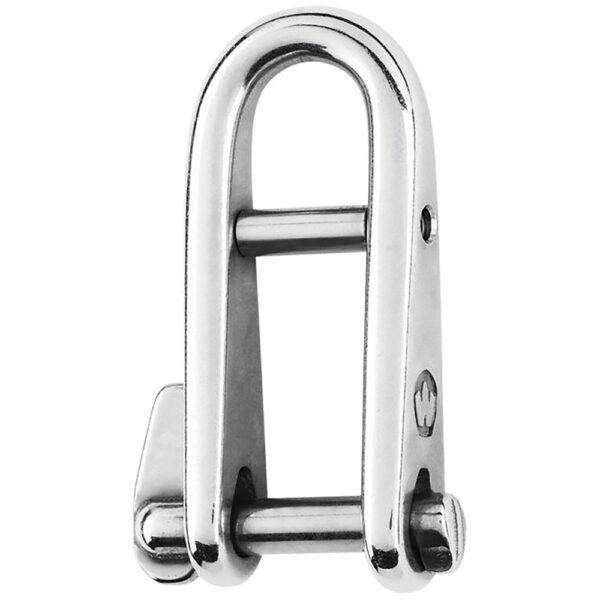

WICHARD 3/16 KEY PIN HR SHACKLE WITH BAR
HR Key Pin Shackle With Bar – 5mm Pin Diameter
Features:
- Forged D shackle in HR stainless steel grade (17,4 PH)
- Outstanding working and breaking load
- An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- Applications requesting high loads
- Perfect product for halyards or applications requiring opening/closing the shackle often
- Do not use it for mooring applications
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 1050 / (kg) 480
- Breaking load: (lb) 3300 / (kg) 1500
- Weight: (lb) 0.068 / (g) 31

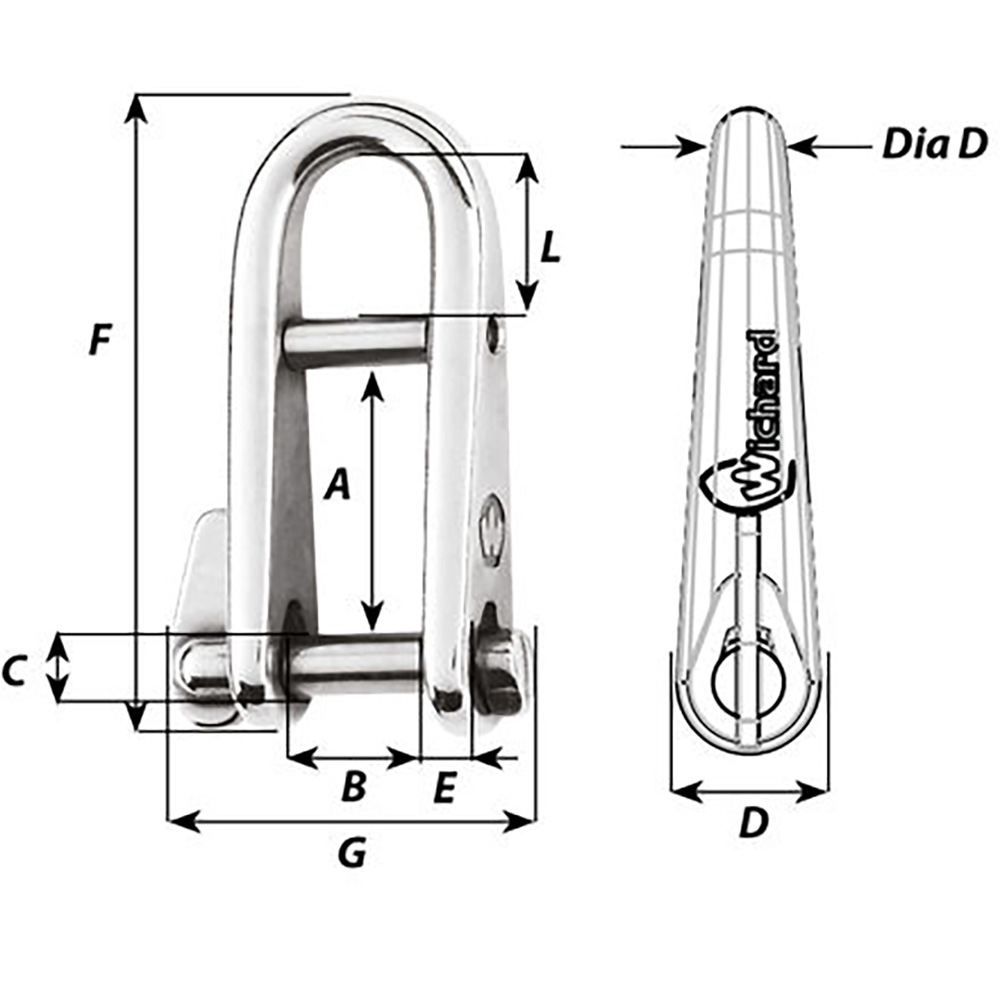

Dimensions:
- A: (inch) 1 29/64″ / (mm) 37
- B: (inch) 33/64″ / (mm) 13
- C: (inch) 13/64″ / (mm) 5
- D: (inch) 7/16″ / (mm) 11
- E: (inch) 5/32″ / (mm) 4
- F: (inch) 1 59/64″ / (mm) 49
- G: (inch) 1 7/32″ / (mm) 31
- L: (inch) 15/32″ / (mm) 12
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
You have questions please contact us
Additional information
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 6 × 2 × 1 in |
| Brand | Wichard Marine |
| Manufacturer Part Number | 91432 |
| Model | 91432 |
| UPC | 768536028522 |
| Type | Wichard Marine |
