WICHARD HR D SHACKLE 13/32"
HR D Shackle - Diameter 25/64"Features:Forged D shackle in HR stainless steel grade (17,4 PH)Outstanding working and breaking loadAn HR shackle can be up to 60% more resistant than a shackle in 316L stainless steelWLL: only for industrial applications (lifting i.e…)CE marking and batch numberApplicationsApplications requesting high loadsStandard applications of the shackleAttachment applications: blocks, headDo not use it for mooring applicationsSpecifications:Materials HR 17.4 PH stainless steel gradeWorking load (lb) 5820WLL (lb) 2640Breaking load (lb) 13220Weight (lb) 0.225A (inch) 1 19/64"B (inch) 25/32"D diameter (inch) 25/64"
Product SKU: 94415
Product Brand: Wichard Marine
Product Currency: USD
Product Price: 100.90
Price Valid Until: 1970-01-01
WICHARD HR D SHACKLE 13/32″

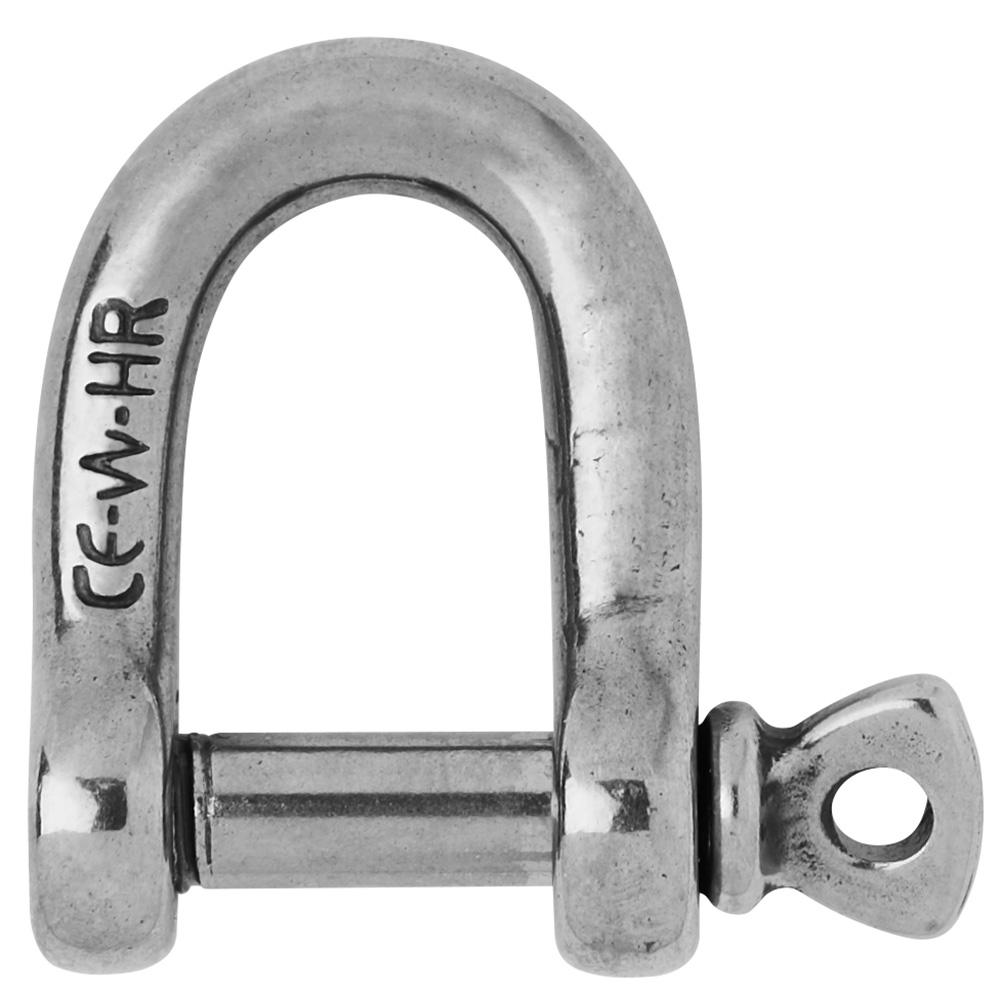

HR D Shackle – Diameter 25/64″
Features:
- Forged D shackle in HR stainless steel grade (17,4 PH)
- Outstanding working and breaking load
- An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking and batch number
Applications
- Applications requesting high loads
- Standard applications of the shackle
- Attachment applications: blocks, head
- Do not use it for mooring applications

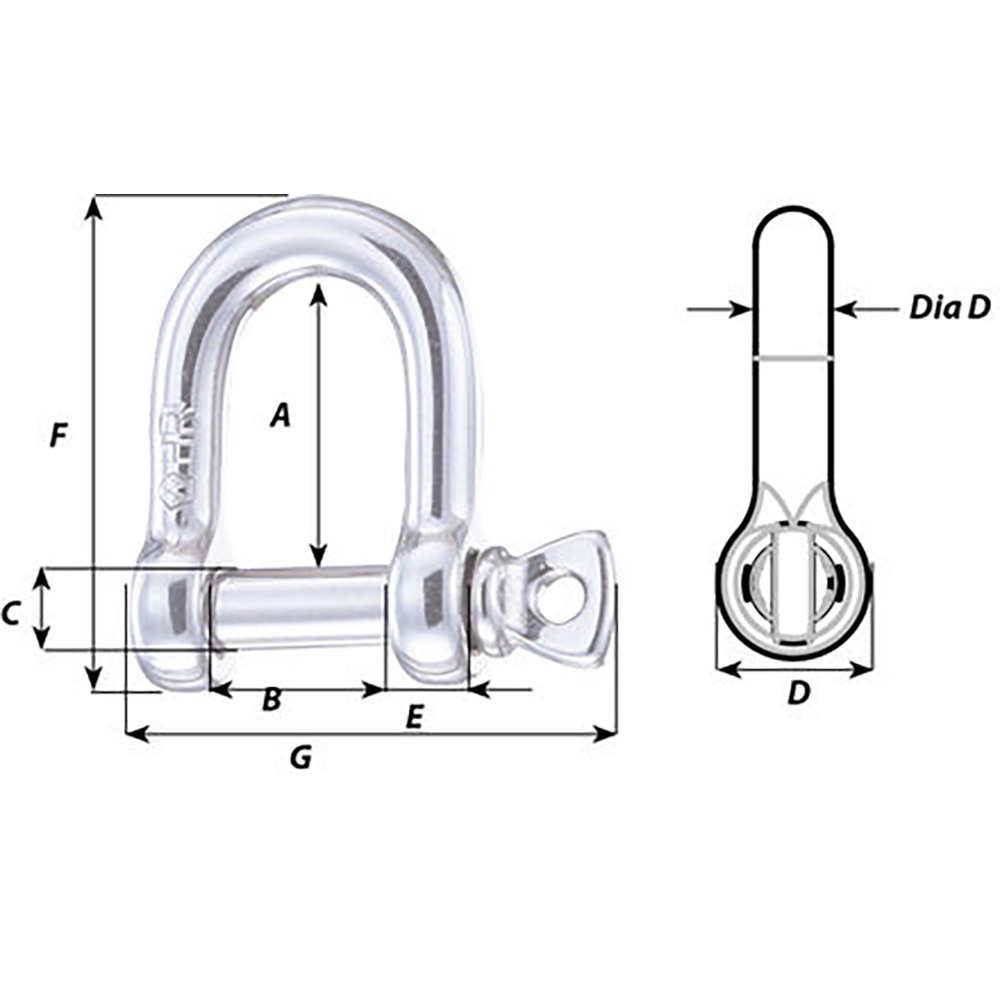

Specifications:
- Materials HR 17.4 PH stainless steel grade
- Working load (lb) 5820
- WLL (lb) 2640
- Breaking load (lb) 13220
- Weight (lb) 0.225
- A (inch) 1 19/64″
- B (inch) 25/32″
- D diameter (inch) 25/64″
You have questions please contact us
Additional information
| Weight | 0.25 lbs |
|---|---|
| Dimensions | 6 × 2 × 1 in |
| Brand | Wichard Marine |
| Manufacturer Part Number | 11205 |
| Model | 11205 |
| UPC | 3587790112054 |
| Type | Wichard Marine |
