WICHARD 5/16 HR BOW SHACKLE

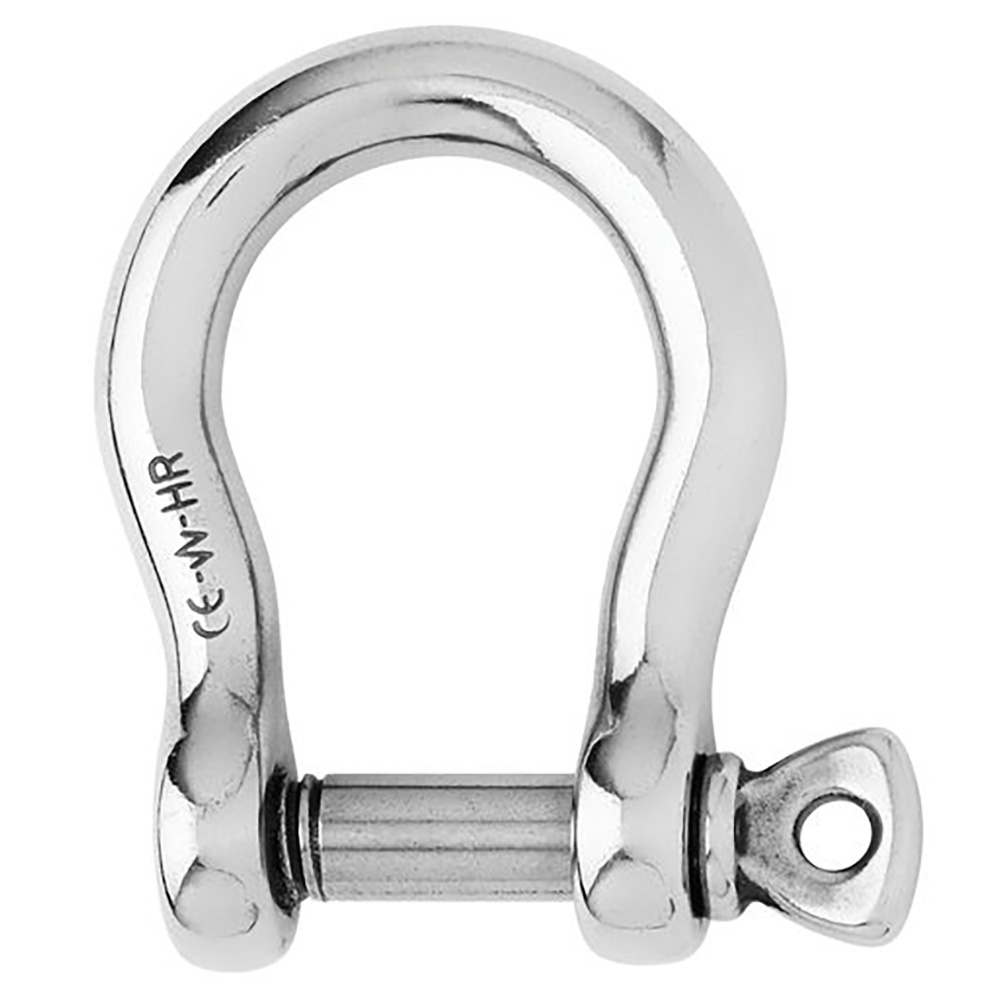

HR Bow Shackle – 8mm Pin Diameter
Features:
- Forged bow shackle in HR stainless steel grade (17,4 PH)
- Outstanding working and breaking load
- A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- Applications requesting high loads
- To be used when ample room is required
- Possibility to attach several lines or cables
- Do not use for mooring applications
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 3880 / (kg) 1760
- WLL: (lb) 1800 / (kg) 820
- Breaking load: (lb) 9030 / (kg) 4100
- Weight: (lb) 0.15 / (g) 68

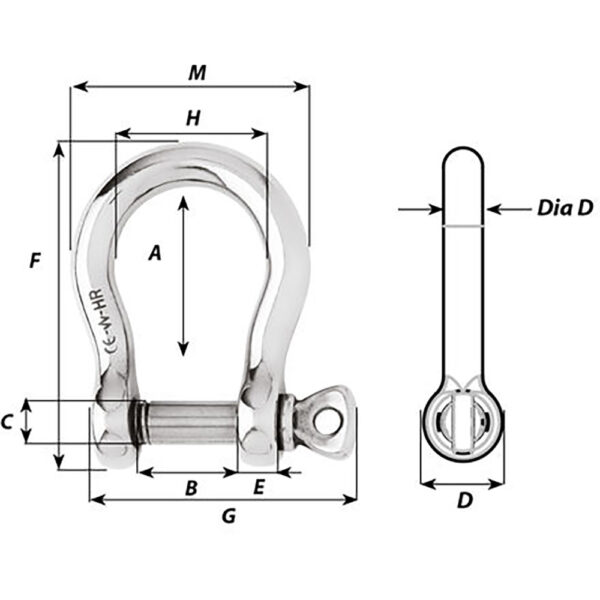

Dimensions:
- A: (inch) 1 29/64″ / (mm) 37
- B: (inch) 5/8″ / (mm) 16
- C: (inch) 5/16″ / (mm) 8
- D: (inch) 5/8″ / (mm) 16
- D diameter: (inch) 25/64″ / (mm) 10
- E: (inch) 9/32″ / (mm) 7
- M: (inch) 1 21/32″ / (mm) 42
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
You have questions please contact us
Additional information
| Weight | 0.15 lbs |
|---|---|
| Dimensions | 6 × 3 × 1 in |
| Brand | Wichard Marine |
| Manufacturer Part Number | 11244 |
| Model | 11244 |
| UPC | 358779011247 |
| Type | Wichard Marine |
