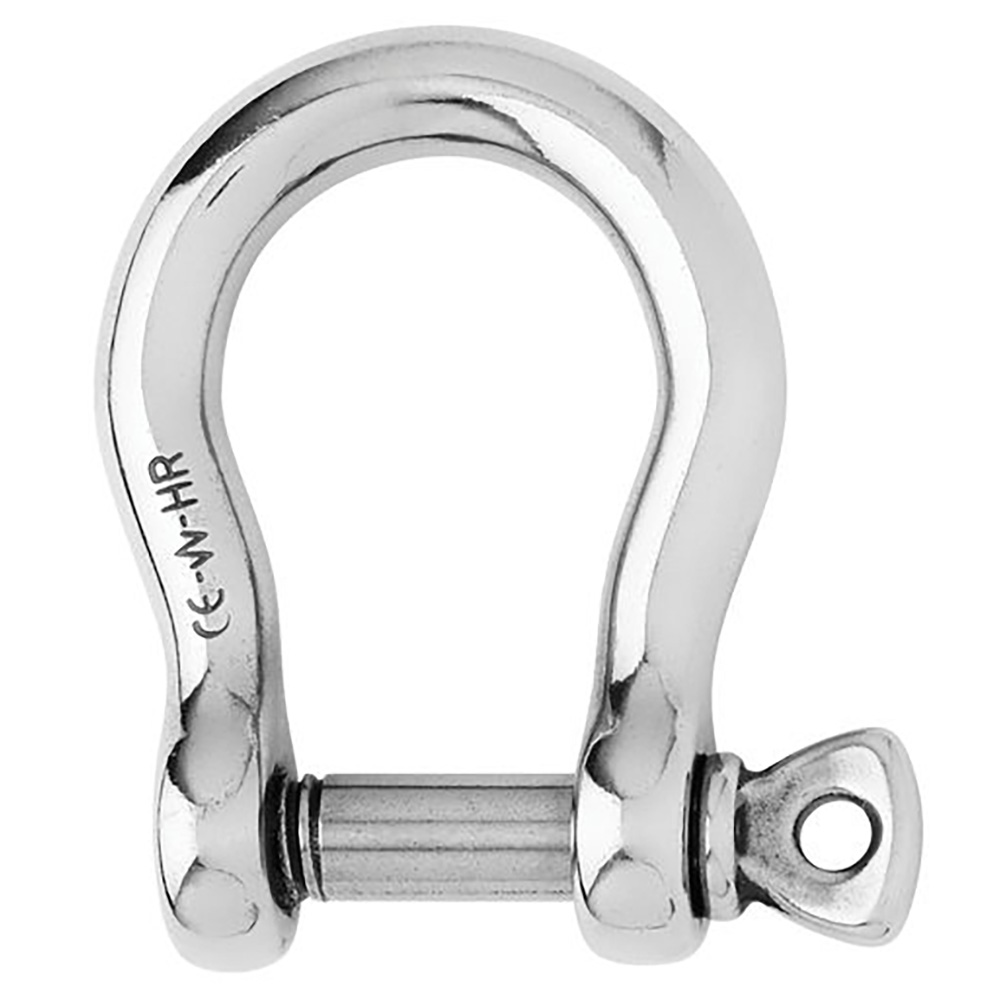

WICHARD 13/32 HR BOW SHACKLE
HR Bow Shackle – 10mm Pin Diameter
Features:
- Forged bow shackle in HR stainless steel grade (17,4 PH)
- Outstanding working and breaking load
- A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- Applications requesting high loads
- To be used when ample room is required
- Possibility to attach several lines or cables
- Do not use for mooring applications
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 5820 / (kg) 2640
- WLL: (lb) 2640 / (kg) 1200
- Breaking load: (lb) 13220 / (kg) 6000
- Weight: (lb) 0.3 / (g) 136

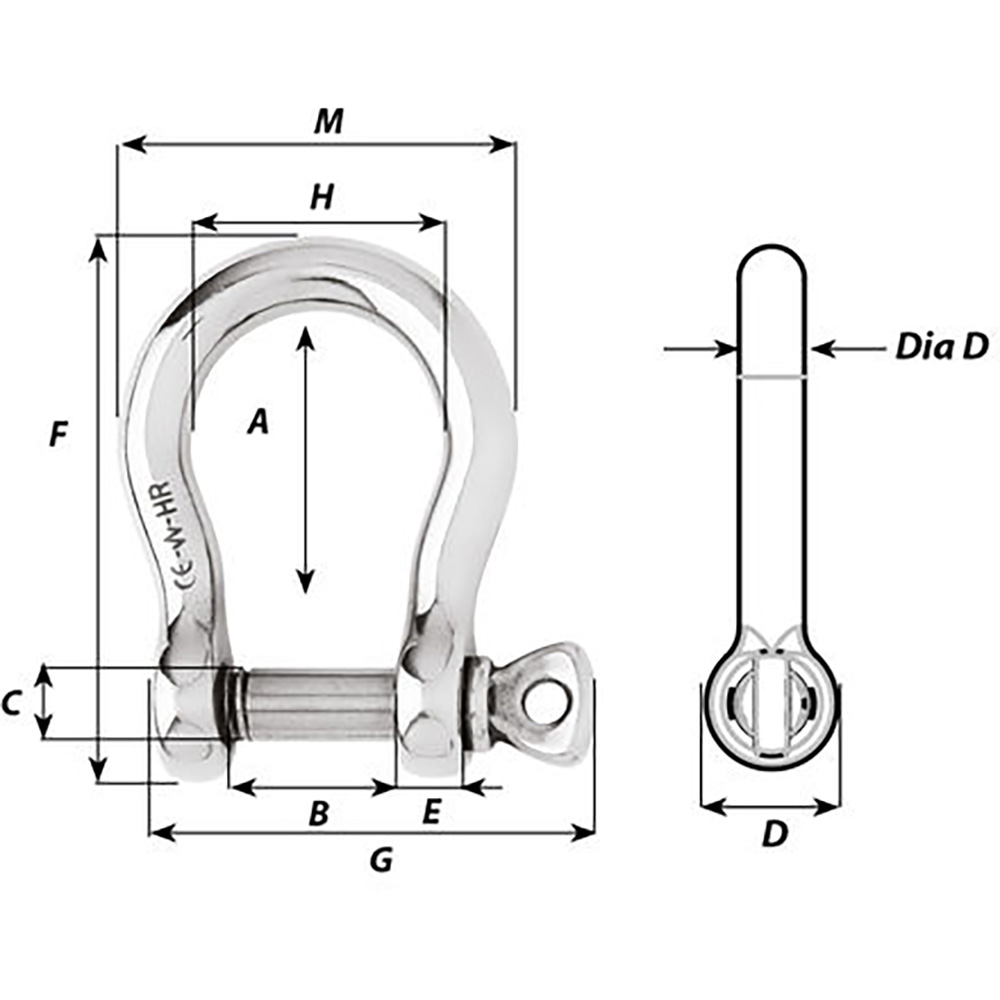

Dimensions:
- A: (inch) 1 27/32″ / (mm) 47
- B: (inch) 55/64″ / (mm) 22
- C: (inch) 25/64″ / (mm) 10
- D: (inch) 25/32″ / (mm) 20
- D diameter: (inch) 15/32″ / (mm) 12
- E: (inch) 23/64″ / (mm) 9
- M: (inch) 2 3/64″ / (mm) 52
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
You have questions please contact us
Additional information
| Weight | 0.3 lbs |
|---|---|
| Dimensions | 6 × 3 × 1 in |
| Brand | Wichard Marine |
| Manufacturer Part Number | 11245 |
| Model | 11245 |
| UPC | 768536015089 |
| Type | Wichard Marine |
