Description

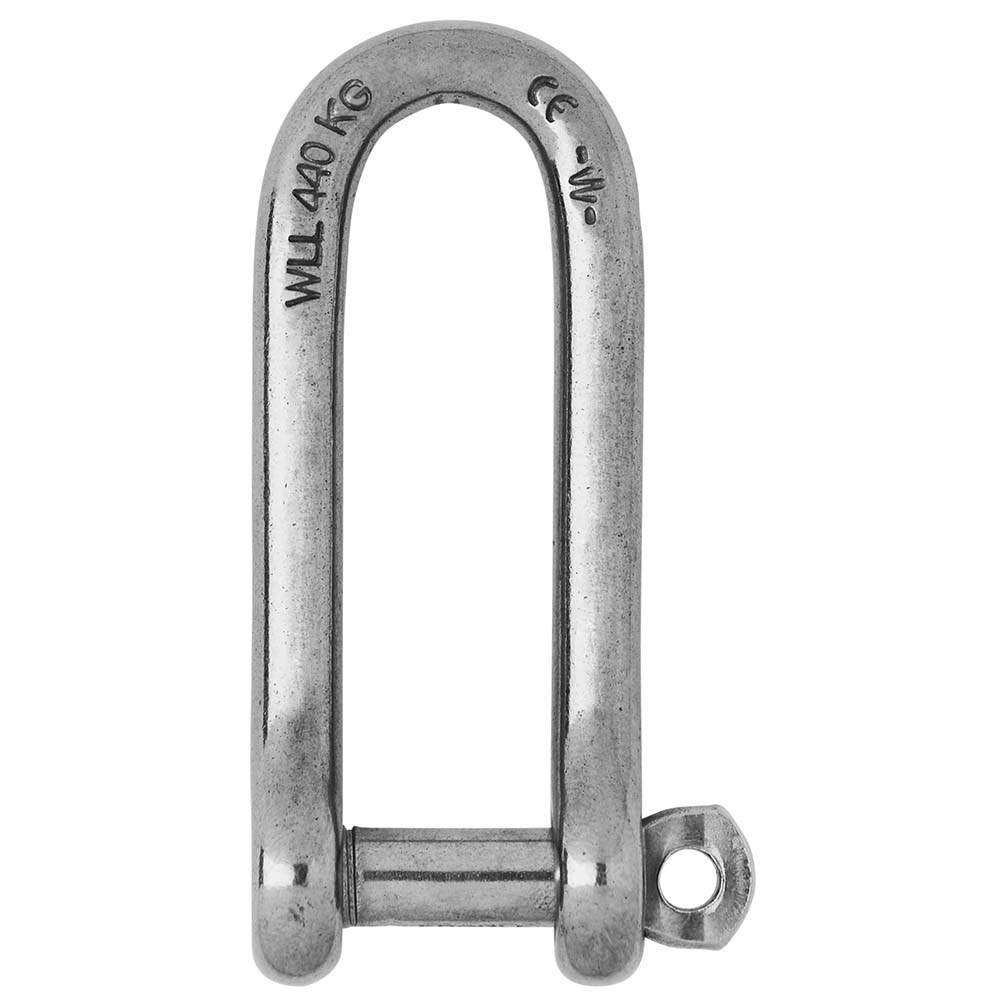

WICHARD 5/16 CAPTIVE LONG SHACKLE
Captive Pin Long D Shackle - Diameter 8mm - 5/16"
Features:
- Captive pin long "D" shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Standard applications of shackle requiring more length
- Attachment applications: blocks, head...
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 2200
- WLL (lb) 1580
- Breaking load (lb) 7930
- Weight (lb) 0.203

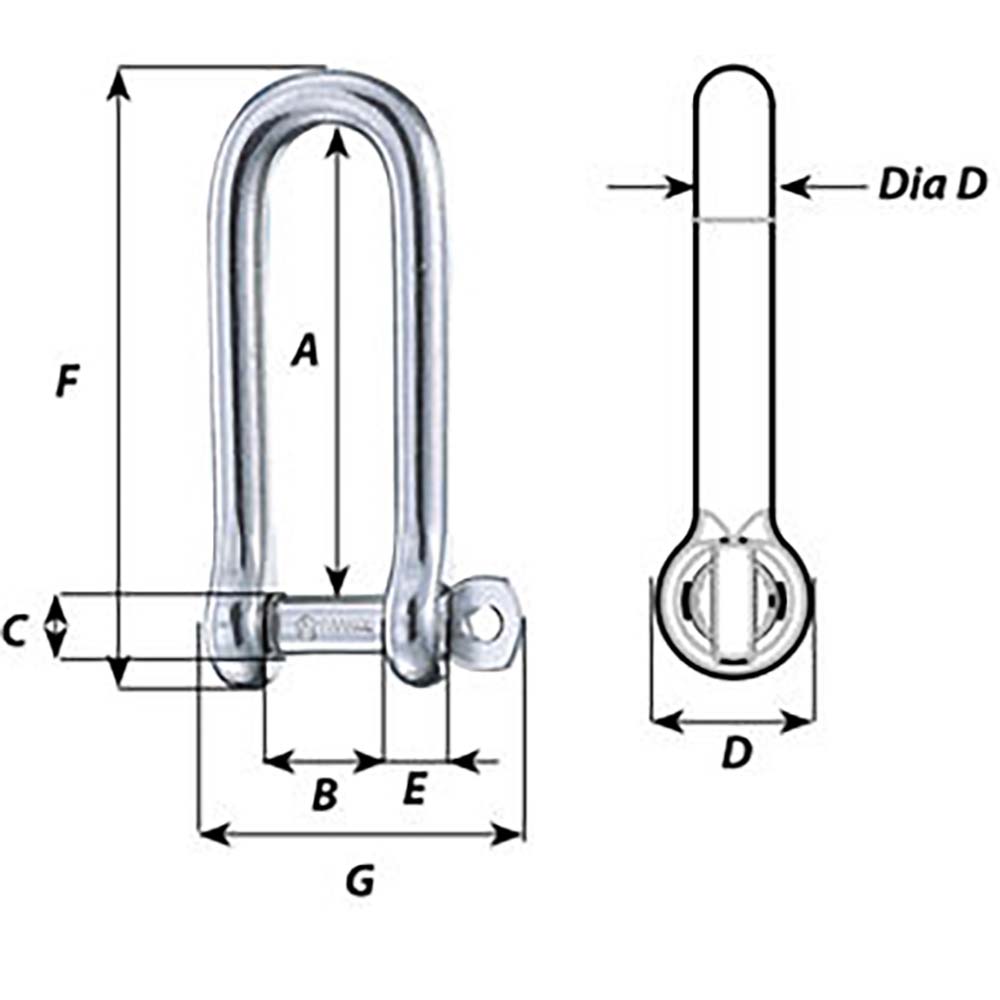

Dimensions (see 2nd image):
- A (inch) 2-7/16"
- B (inch) 5/8"
- C (inch) 23/64"
- D (inch) 43/64"
- D diameter (inch) 5/16"
- E (inch) 5/16"
- F (inch) 3-15/64"
- G (inch) 1-11/16"
Product SKU: 93118
Product Brand: Wichard Marine
Product Currency: USD
Product Price: 56.99
Price Valid Until: 1970-01-01
WICHARD 5/16 CAPTIVE LONG SHACKLE
Captive Pin Long D Shackle – Diameter 8mm – 5/16″
Features:
- Captive pin long “D” shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Standard applications of shackle requiring more length
- Attachment applications: blocks, head…
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 2200
- WLL (lb) 1580
- Breaking load (lb) 7930
- Weight (lb) 0.203
Dimensions (see 2nd image):
- A (inch) 2-7/16″
- B (inch) 5/8″
- C (inch) 23/64″
- D (inch) 43/64″
- D diameter (inch) 5/16″
- E (inch) 5/16″
- F (inch) 3-15/64″
- G (inch) 1-11/16″
You have questions please contact us
Additional information
| Weight | 0.22 lbs |
|---|---|
| Dimensions | 6 × 2 × 1 in |
| Brand | Wichard Marine |
| Manufacturer Part Number | 01414 |
| Model | 01414 |
| UPC | 3587790014143 |
| Type | Wichard Marine |
