Description

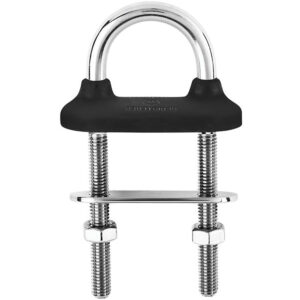

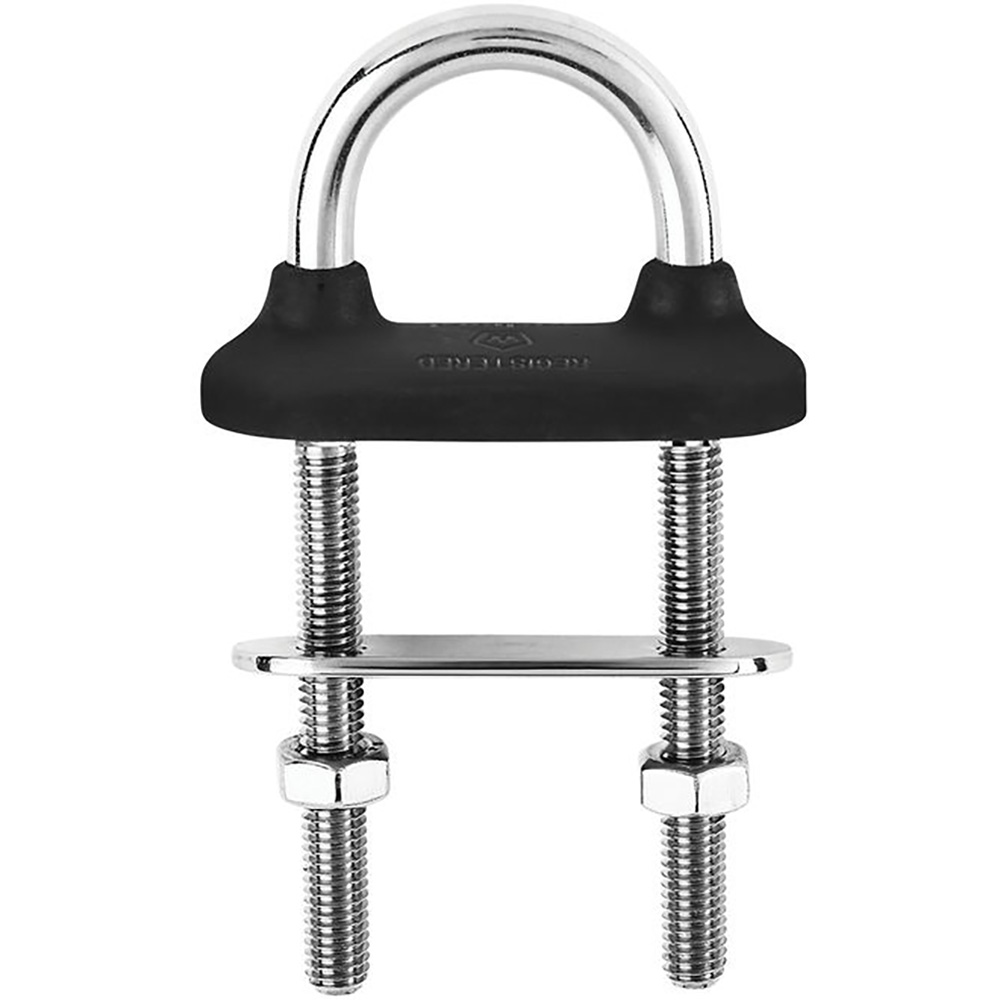

WICHARD 15/32 BLACK WATERPROOF U-BOLT - L 4 1
Black Watertight U-Bolt - 12mm Diameter - 15/32" - 110mm Length - 4 21/64"
Features:
- Fully dropforged product with high quality stainless steel
- Outstanding working and breaking loads
- Complete water-tightness thanks to the resistant rubber collar (black color)
- Easy installation (no need to use a waterproof sealant)
- Delivered with bolts and counter-plate
- Max tightening torque: 60 Nm
Applications:
- Various fastening applications: shrouds, lifelines, blocks…
Specifications:
- Materials; 316L stainless steel grade
- Color: Black
- Working load: (lb) 14100 / (kg) 6400
- Breaking load: (lb) 22040 / (kg) 10000
- Weight: (lb) 0.761 / (g) 345

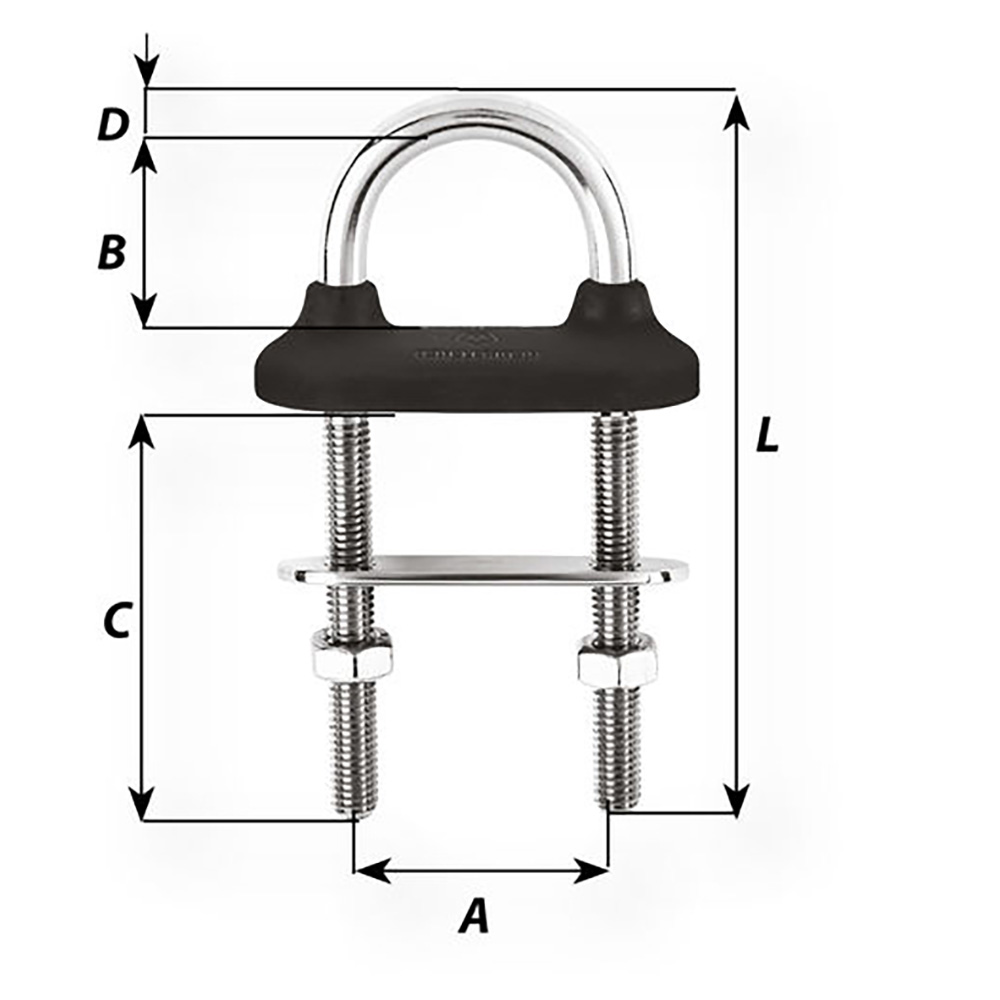

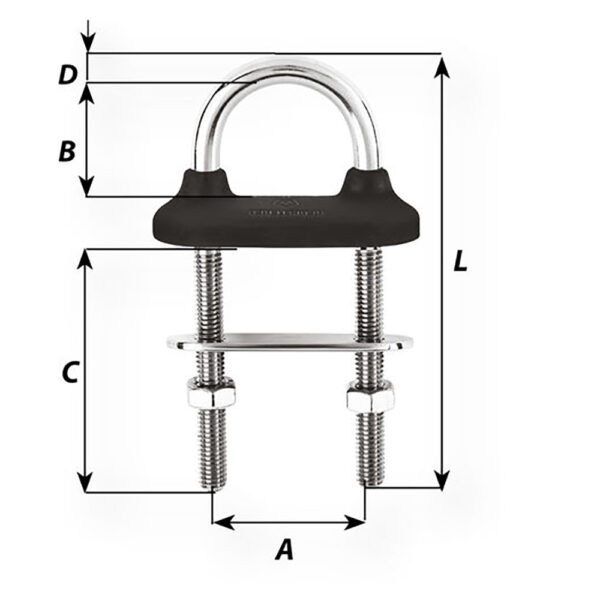

Dimensions:
- Length: (inch) 4 21/64" / (mm) 110
- A: (inch) 1 47/64" / (mm) 44
- B: (inch) 1 1/16" / (mm) 27
- C: (inch) 1 31/32" / (mm) 50
- D diameter: (inch) 15/32" / (mm) 12
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Product SKU: 97735
Product Brand: Wichard Marine
Product Currency: USD
Product Price: 101.19
Price Valid Until: 1970-01-01
WICHARD 15/32 BLACK WATERPROOF U-BOLT – L 4 1
Black Watertight U-Bolt – 12mm Diameter – 15/32″ – 110mm Length – 4 21/64″
Features:
- Fully dropforged product with high quality stainless steel
- Outstanding working and breaking loads
- Complete water-tightness thanks to the resistant rubber collar (black color)
- Easy installation (no need to use a waterproof sealant)
- Delivered with bolts and counter-plate
- Max tightening torque: 60 Nm
Applications:
- Various fastening applications: shrouds, lifelines, blocks…
Specifications:
- Materials; 316L stainless steel grade
- Color: Black
- Working load: (lb) 14100 / (kg) 6400
- Breaking load: (lb) 22040 / (kg) 10000
- Weight: (lb) 0.761 / (g) 345
Dimensions:
- Length: (inch) 4 21/64″ / (mm) 110
- A: (inch) 1 47/64″ / (mm) 44
- B: (inch) 1 1/16″ / (mm) 27
- C: (inch) 1 31/32″ / (mm) 50
- D diameter: (inch) 15/32″ / (mm) 12
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
You have questions please contact us
Additional information
| Weight | 0.75 lbs |
|---|---|
| Dimensions | 5 × 3 × 1 in |
| Brand | Wichard Marine |
| Manufacturer Part Number | 65361 |
| Model | 65361 |
| Type | Wichard Marine |
