Description
TRIDENT MARINE 3" ID 90 DEGREE EPDM BLACK RUBBER MOLDED

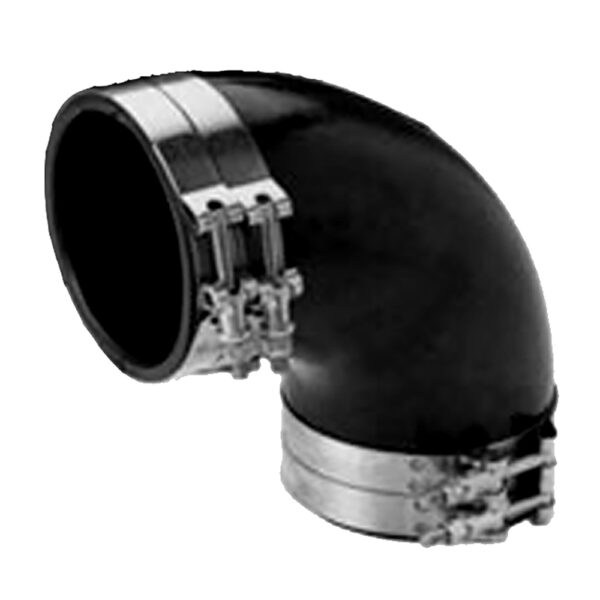

3" ID 90-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt Clamps
Trident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside.
Features:
- Four stainless steel clamps are included
- This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging
- Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards)
- Black high-temp EDPM rubber
Construction:
- Color: Black
- Reinforcement: Reinforcing ribs on 6” I.D. and above
- Temperature Range: up to 250°F (121°C)

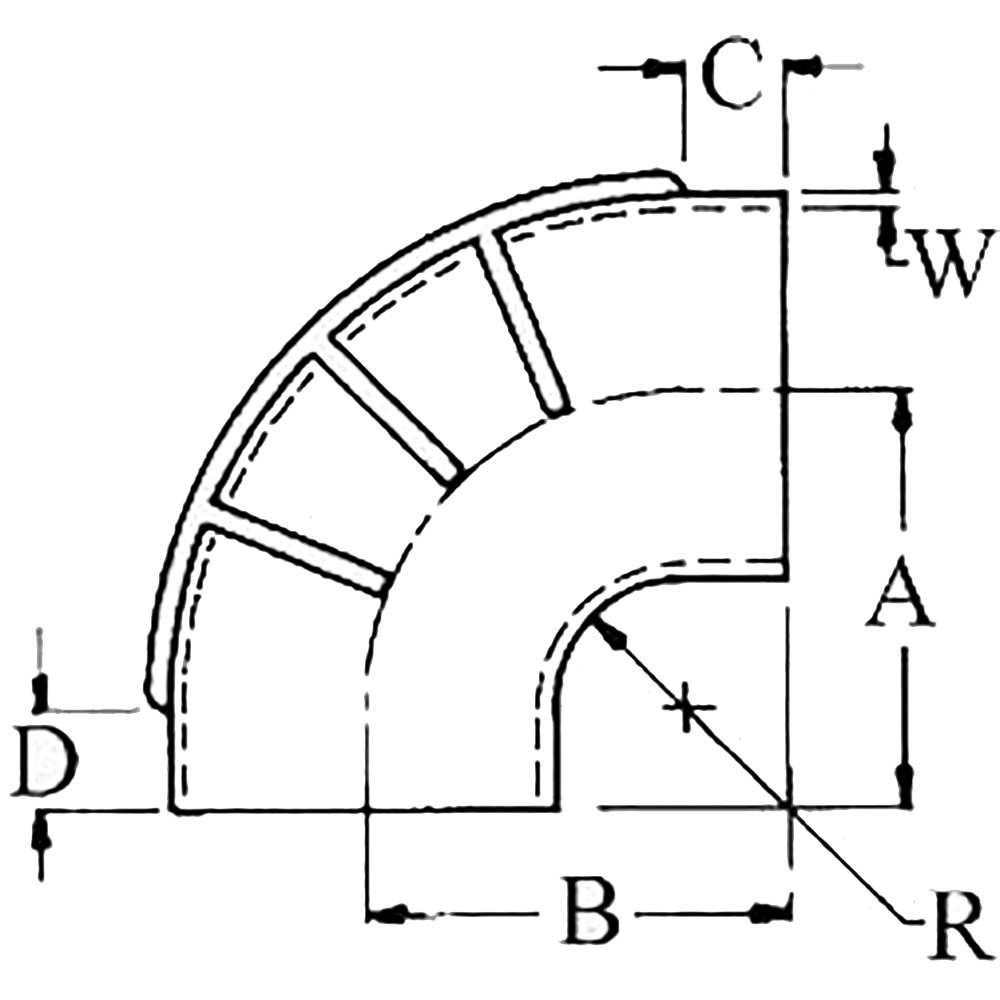

Specifications:
- Inner Diameter: (inch) 3” / (mm) 76.2
- A: (inch) 5.25" / (mm) 133
- B: (inch) 5.25” / (mm) 133
- C: (inch) 1.75” / (mm) 44.4
- D: (inch) 1.75” / (mm) 44.4
- R: (inch) 2” / (mm) 50.8
- W: (inch) 0.25” / (mm) 6.4
- Elbow Degree: 90 degrees
Product SKU: 100833
Product Brand: Trident Marine
Product Currency: USD
Product Price: 63.58
Price Valid Until: 1970-01-01
TRIDENT MARINE 3″ ID 90 DEGREE EPDM BLACK RUBBER MOLDED
3″ ID 90-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt Clamps
Trident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside.
Features:
- Four stainless steel clamps are included
- This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging
- Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards)
- Black high-temp EDPM rubber
Construction:
- Color: Black
- Reinforcement: Reinforcing ribs on 6” I.D. and above
- Temperature Range: up to 250°F (121°C)
Specifications:
- Inner Diameter: (inch) 3” / (mm) 76.2
- A: (inch) 5.25″ / (mm) 133
- B: (inch) 5.25” / (mm) 133
- C: (inch) 1.75” / (mm) 44.4
- D: (inch) 1.75” / (mm) 44.4
- R: (inch) 2” / (mm) 50.8
- W: (inch) 0.25” / (mm) 6.4
- Elbow Degree: 90 degrees
You have questions please contact us
Additional information
| Weight | 1.6 lbs |
|---|---|
| Dimensions | 9 × 4 × 4 in |
| Brand | Trident Marine |
| Manufacturer Part Number | TRL-390-S/S |
| Model | TRL-390-S/S |
| UPC | 704917000404 |
| Type | Trident Marine |
