Description
TRIDENT MARINE 1-1/8" X 50' BOX CLEAR W/ BLACK HELIX XHD

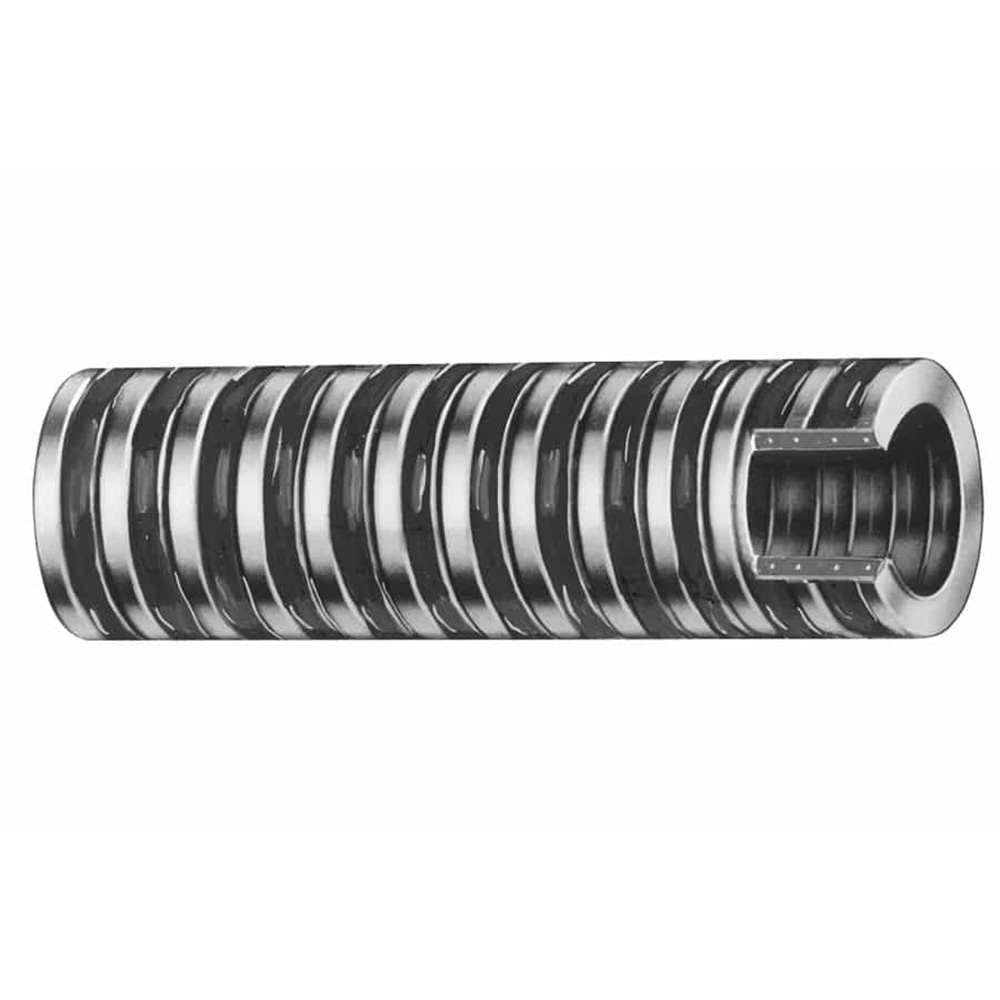

1-1/8" x 50' Heavy Duty PVC Bilge & Livewell Hose (FDA) - Clear with Black Helix
Trident Smooth extra heavy wall vinyl (FDA) well hose. All clear (see thru) with black helix. Excellent durability, flexibility & bend radius for XHD bilge, live well, drain, scupper lines, etc. No cuffs are required.
Features:
- Flexible, but the 147 series is less flexible than the 149 series of hoses
Application:
- Bilge and live well hose
Specifications:
- Tube & Cover: Clear vinyl reinforced with black helix
- Color: Clear with black helix
- Reinforcement: PVC Helix
- Temperature Range: 10°F-120°F (-12°C-49°C)
- Boxed: 50ft. / (15.24m)
- Inner Diameter: (inch) 1-1/8" / (mm) 28.6
- Outer Diameter: (inch) 1.39" / (mm) 35.4
- Working Pressure: (Psi Vac In./Hg) 28
- Weight: (Lb./ 50 ft.) 15 / (Kg/m) 0.45
- Bend Radius: (inch) 3.5" / (mm) 8.9
*Burst Pressure is 4 x Working Pressure
Product SKU: 98795
Product Brand: Trident Marine
Product Currency: USD
Product Price: 108.97
Price Valid Until: 1970-01-01
TRIDENT MARINE 1-1/8″ X 50′ BOX CLEAR W/ BLACK HELIX XHD
1-1/8″ x 50′ Heavy Duty PVC Bilge & Livewell Hose (FDA) – Clear with Black Helix
Trident Smooth extra heavy wall vinyl (FDA) well hose. All clear (see thru) with black helix. Excellent durability, flexibility & bend radius for XHD bilge, live well, drain, scupper lines, etc. No cuffs are required.
Features:
- Flexible, but the 147 series is less flexible than the 149 series of hoses
Application:
- Bilge and live well hose
Specifications:
- Tube & Cover: Clear vinyl reinforced with black helix
- Color: Clear with black helix
- Reinforcement: PVC Helix
- Temperature Range: 10°F-120°F (-12°C-49°C)
- Boxed: 50ft. / (15.24m)
- Inner Diameter: (inch) 1-1/8″ / (mm) 28.6
- Outer Diameter: (inch) 1.39″ / (mm) 35.4
- Working Pressure: (Psi Vac In./Hg) 28
- Weight: (Lb./ 50 ft.) 15 / (Kg/m) 0.45
- Bend Radius: (inch) 3.5″ / (mm) 8.9
*Burst Pressure is 4 x Working Pressure
You have questions please contact us
Additional information
| Weight | 14.2 lbs |
|---|---|
| Dimensions | 23 × 23 × 8 in |
| Brand | Trident Marine |
| Manufacturer Part Number | 147-1186 |
| Model | 147-1186 |
| UPC | 704917006192 |
| Country | UNITED STATES |
| Type | Trident Marine |
