Description

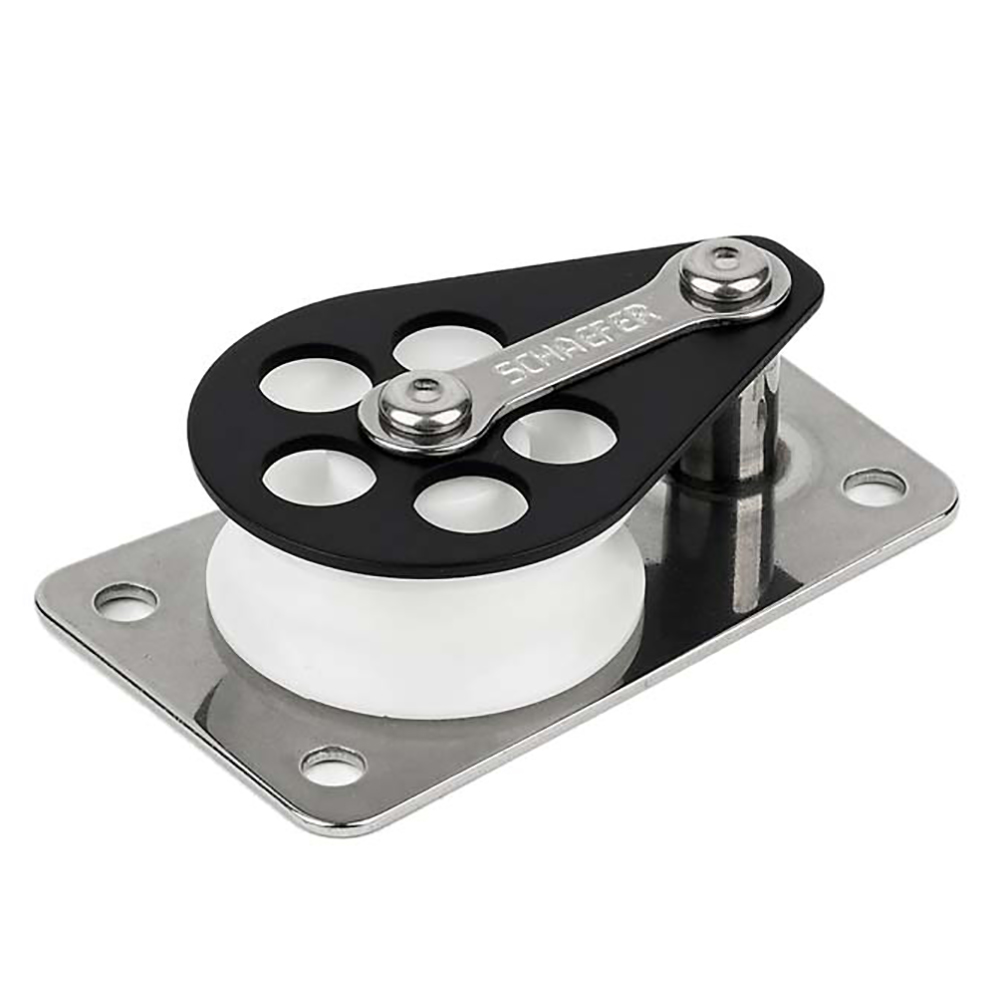

SCHAEFER 3 SERIES CHEEK BLOCK FLAT BASE
Series 3 Flat Base/Alum Cheek/Delrin Sheave
Delrin™ plain bearing sheave ensures smooth operation and high safe working load. Stainless Steel base distributes loads to a larger surface area.
Specifications:
- Sheave Dia. 1-7/16″ (37 mm)
- Max Line 7/16″ (11 m)
- Length 2-7/8″ (73 mm)
- Width 1-3/4″ (44 mm)
- Height 3/4″ (19 mm)
- Fasteners (4) #10- RH (5 mm)
- C/C 2-3/8″ (60 mm)
- SWL 1000 lbs. (450 kg)
- Weight Alum. 2.5 oz. (71 g)
You have questions please contact us
Additional information
| Weight | 0.15 lbs |
|---|---|
| Dimensions | 4 × 2 × 1 in |
| Brand | Schaefer Marine |
| Manufacturer Part Number | 303-09 |
| Model | 303-09 |
| UPC | 740507003240 |
| Country | UNITED STATES |
| Type | Schaefer Marine |
