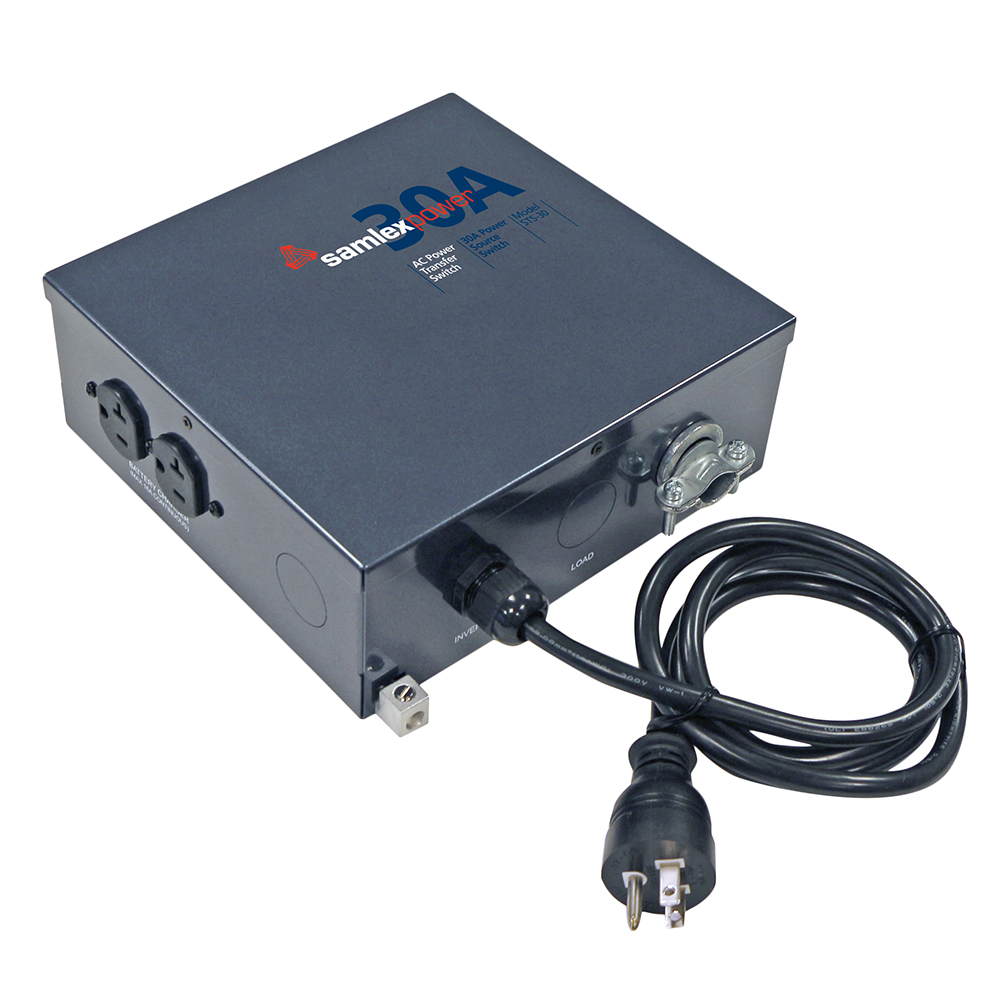

SAMLEX STS-30 TRANSFER SWITCH WITH INVERTER QUICK CONNECT
30A Transfer Switch w/Inverter Quick Connect
Whether you’re using solar, batteries or a generator to power your AC devices on the road, chances are, you’re going to want to use shore power when it’s available. Connect a Samlex Transfer Switch to your generator, or to your inverter/battery bank and have your AC source switched automatically to shore power when you plug in.
Features:
- Automatically switches between 2 separate AC input sources: Utility Power and a Generator; or Utility Power and Inverter; or Generator and Inverter
- Has rated capacity of 30 Amps at 120 VAC and is suitable for 30 Amp Utility Power Cord and Generator of up to 3.6 KVA capacity
- Uses heavy duty Double Pole Double Throw (DPDT) relay for switching both the Line and Neutral
- Can be installed on the line side of the main breaker panel allowing switching of the entire load or on the load side to only switch dedicated circuits
- DIP Switch select to enable time delay of 20 to 25 sec when transferring to a generator
- Comes with a standard North American power cord for convenient connection to 15 Amp NEMA5-15R receptacles on a generator or an inverter with up to 1800 VA capacity (Replace this cord with 30 Amp cord if full 30 Amp capacity is required)
- NEMA5-20R Duplex Receptacle for convenient connection of battery charger
Specifications:
- Output: 120 VAC
- Amps: 30 Amps
- Weight: 4.4 (lbs)
- Weight: 1.99 (kg)
- Dimensions: 9 x 8.25 x 3.25 (in)
- Dimensions: 22.9 x 21 x 8.3 (cm)
- Warranty: 2 Year Limited
Applications:
- Solar power systems
- Emergency backup power
- Mobile offices
- Boats
- Lighting systems
- Recreational vehicles, camping
- Automotive
- Telecommunications
- Field work/construction sites
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
