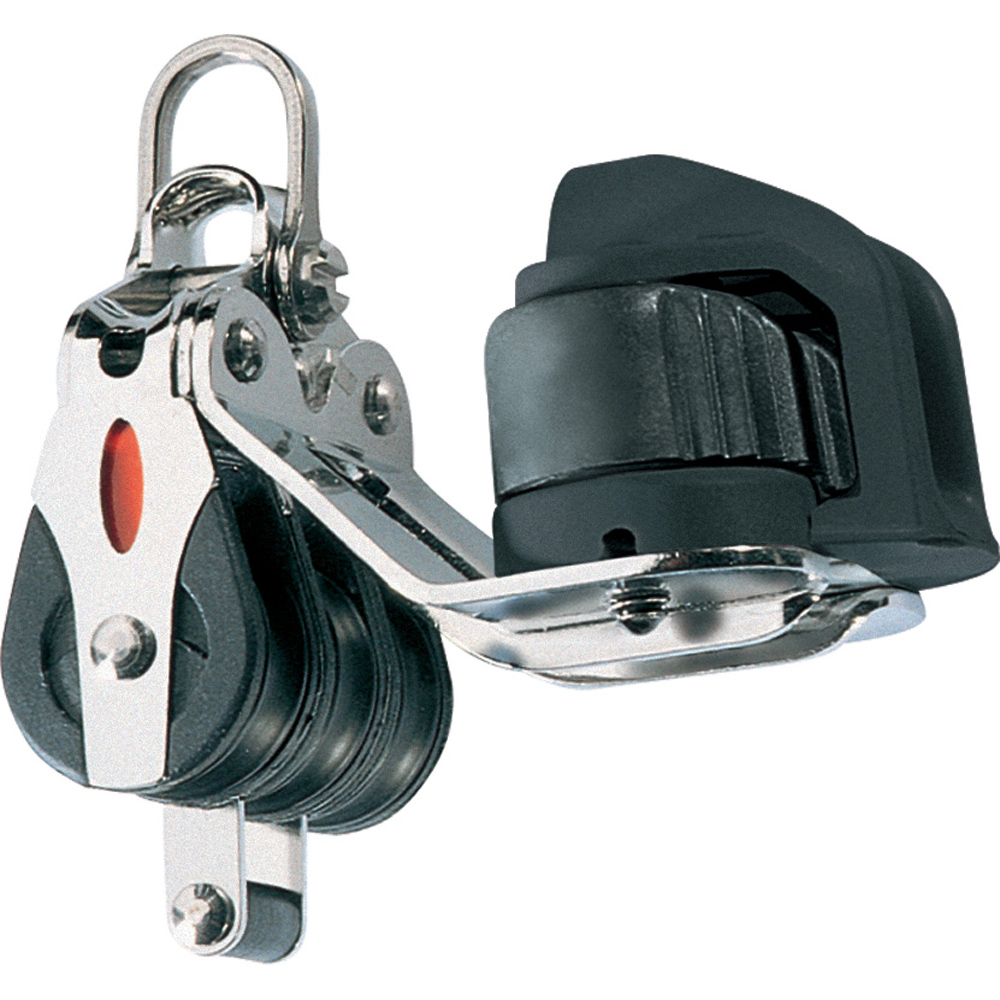

Ronstan Series 20 Ball Bearing Block – Triple – Becket – Cam Cleat – 2-Axis Shackle Head

RONSTAN SERIES 20 BB BLOCK TRIPLE CLEAT BECKET

Series 20 Ball Bearing Block - Triple - Becket - Cam Cleat - 2-Axis Shackle Head

Features:

• Low friction

• High static and dynamic load capacity

• Lightweight

• Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction

• Two-Way head can be fixed at 0° or 90°

Applications:

• Dinghy control lines

• Dinghy vangs

• Cunninghams

• Traveller controls

Materials:

• Stainless steel ball bearings

• UV Stabilized Acetal sheave

• Grade 316 stainless steel load strap and head fitting

• Impact and UV resistant, fiber reinforced Nylon cheeks

Specifications:
Sheave Ø: 20mm(3/4")
Max. Rope Ø: 6mm(1/4")
PinØ: 4mm(5/32")
M.W.L.: 400kg(880lbs)
B. L.: 850kg(1,870lbs)
Weight: 122g(4.3oz)

*Line Load through cleat not to exceed 125kg(275lbs)

Product SKU: 55143

Product Brand: Ronstan

Product Currency: USD

Product Price: 94.47

Price Valid Until: 1970-01-01

RONSTAN SERIES 20 BB BLOCK TRIPLE CLEAT BECKET

Series 20 Ball Bearing Block – Triple – Becket – Cam Cleat – 2-Axis Shackle Head

Features:

• Low friction

• High static and dynamic load capacity

• Lightweight

• Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction

• Two-Way head can be fixed at 0° or 90°

Applications:

• Dinghy control lines

• Dinghy vangs

• Cunninghams

• Traveller controls

Materials:

• Stainless steel ball bearings

• UV Stabilized Acetal sheave

• Grade 316 stainless steel load strap and head fitting

• Impact and UV resistant, fiber reinforced Nylon cheeks

Specifications:
Sheave Ø: 20mm(3/4″)
Max. Rope Ø: 6mm(1/4″)
PinØ: 4mm(5/32″)
M.W.L.: 400kg(880lbs)
B. L.: 850kg(1,870lbs)
Weight: 122g(4.3oz)

*Line Load through cleat not to exceed 125kg(275lbs)
