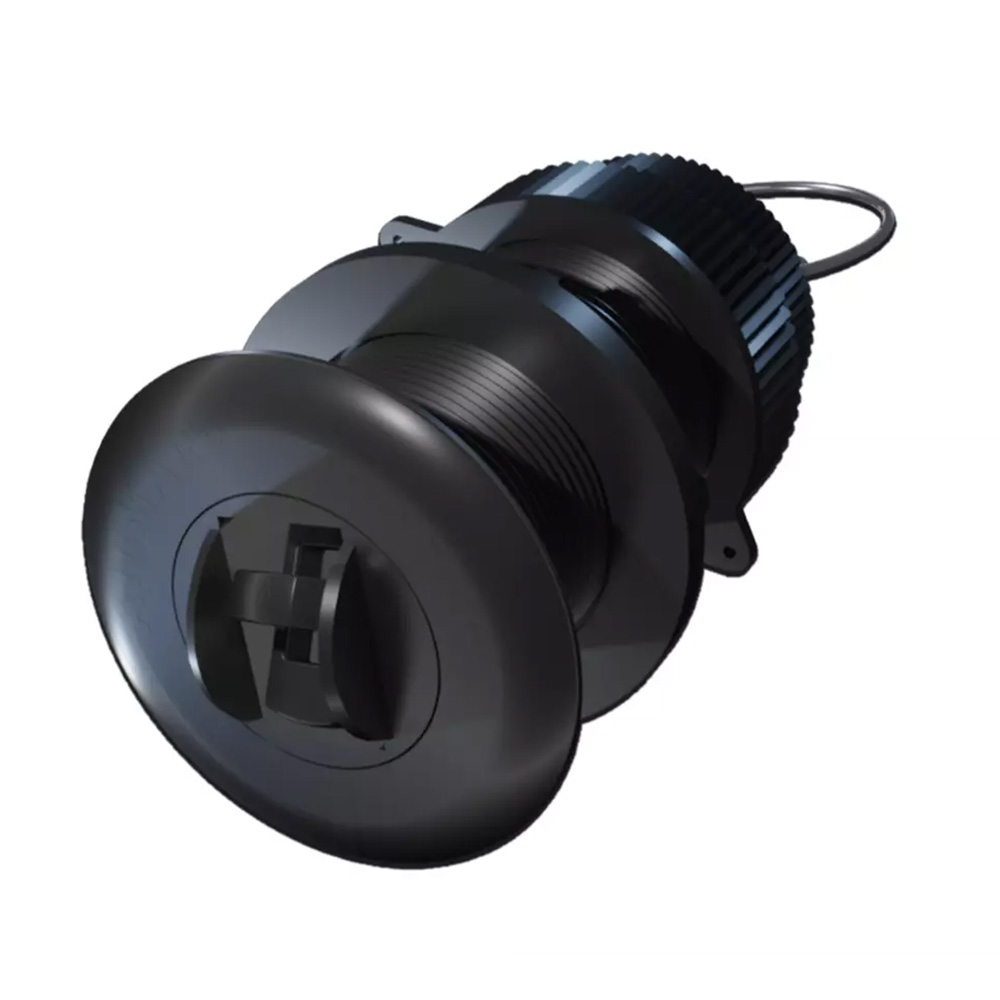

RAYMARIEN ST900/P120 SPEED AND TEMP THRU HULL DUCER
ST900/P120 Speed & Temp Thru-Hull Transducer Retractable with 13.7M (45') Cable
Speed performance has been taken to the next level with the ST900 Speed/Temperature sensor. Featuring the new Gen2 Paddlewheel, the ST900 outperforms all other paddlewheel sensors for responsive startup and linearity. The Gen2 Paddlewheel begins delivering accurate speed reporting as low as 0.3 knots and maintains smooth speed output through 45 knots.
Available with a plastic or bronze transducer housing, they sit nearly flush with the boat's hull and minimize drag with only 5mm (3/16") extending outside the hull. The housing has a valve assembly that helps to minimize water ingress in the bilge when the sensor is removed for routine maintenance of the paddlewheel.
Features:
- Speed and fast-response water temperature sensor
- Analog output for use with Raymarine instruments like i40, i50, iTC-5, and legacy systems
- Retractable for easy maintenance
- ST900 transducer core is retrofittable into existing Airmar P120 and B120 transducer housings
Specifications:
- Plastic
- Hull Material: Fiberglass/Metal
- Cable Length: 13.7M (45')
- Records: Speed/Temperature
- Hole Size: 51 mm (2")
- Mounting Style: Low Profile Thru-Hull
- Speed Range: 0.3 to 45 knots (.34 to 52 MPH/.55 to 83 KPH)
- Temperature Range: -10° to 40°C (14° to 104°F)
Product SKU: 107014
Product Brand: Raymarine
Product Currency: USD
Product Price: 215.61
Price Valid Until: 1970-01-01
RAYMARIEN ST900/P120 SPEED AND TEMP THRU HULL DUCER
ST900/P120 Speed & Temp Thru-Hull Transducer Retractable with 13.7M (45′) Cable
Speed performance has been taken to the next level with the ST900 Speed/Temperature sensor. Featuring the new Gen2 Paddlewheel, the ST900 outperforms all other paddlewheel sensors for responsive startup and linearity. The Gen2 Paddlewheel begins delivering accurate speed reporting as low as 0.3 knots and maintains smooth speed output through 45 knots.
Available with a plastic or bronze transducer housing, they sit nearly flush with the boat’s hull and minimize drag with only 5mm (3/16″) extending outside the hull. The housing has a valve assembly that helps to minimize water ingress in the bilge when the sensor is removed for routine maintenance of the paddlewheel.
Features:
- Speed and fast-response water temperature sensor
- Analog output for use with Raymarine instruments like i40, i50, iTC-5, and legacy systems
- Retractable for easy maintenance
- ST900 transducer core is retrofittable into existing Airmar P120 and B120 transducer housings
Specifications:
- Plastic
- Hull Material: Fiberglass/Metal
- Cable Length: 13.7M (45′)
- Records: Speed/Temperature
- Hole Size: 51 mm (2″)
- Mounting Style: Low Profile Thru-Hull
- Speed Range: 0.3 to 45 knots (.34 to 52 MPH/.55 to 83 KPH)
- Temperature Range: -10° to 40°C (14° to 104°F)
You have questions please contact us
Additional information
| Weight | 2.15 lbs |
|---|---|
| Dimensions | 8 × 6 × 4 in |
| Brand | Raymarine |
| Manufacturer Part Number | E70673 |
| Model | E70673 |
| UPC | 723193846940 |
| Type | Raymarine |
