NavPod RMX4500-08 RailMount Pre-Cut f/Garmin 922 / 922xs / 942 / 942xs

NAVPOD PRE CUT FOR GARMIN 922/922XS/942/942XS

RailMount Pre-Cut f/Garmin 922 / 922xs / 942 / 942xs

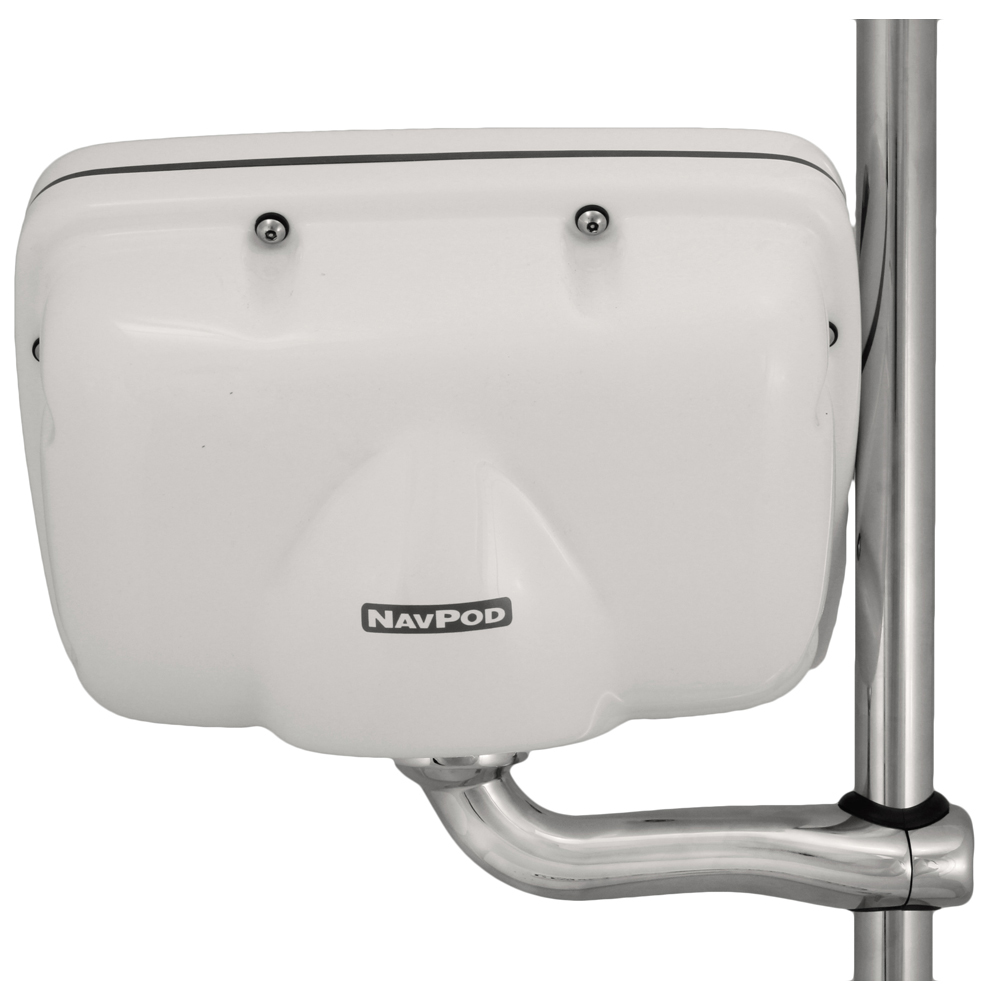

RailMount NavPods are best used for mounting of an autopilot control, sailing instrument, or small chartplotter onto an existing pedestal guard. Fits onto any 1” or 1.25” diameter tube. A Nickel Chrome Plated Stainless Steel arm is used to mount a NavPod. The NavPod can rotate 180 degrees for easy viewing while sitting under the dodger on a rainy day. All wiring runs from the NavPod, down the center of the stainless steel arm, and into the pedestal guard. This application provides a clean and sturdy installation for electronics, without replacement of the pedestal guard.

RailMounts are designed for all popular standard size instruments as well as 7 and 9 inch charplotters.

Gen3 – “The best just got better”

Structural Rigidity
The Gen3 enhancements now include a thicker gauge Acrylic Capped ABS material that improves strength and provides better structural rigidity. This thicker material allows for a larger waterproof seal. The better the structural rigidity, the less flexing when tightening and more uniform pressure on the seal. The excellent UV stability of the Acrylic is combined with the durability of the ABS. The Acrylic cap protects the ABS from UV and it’s potentially damaging effects on plastic. These new NavPods are really strong!

Waterproof Seal
All NavPods are manufactured with a double gasket system providing an excellent watertight seal between the front and back of the NavPod. This seal provides the best protection of your Marine Electronics. NavPods are made to withstand the harshest wet offshore boating conditions. Gen3 enhancements include a thicker external silicone gasket with improved flush fit. The internal Poran Microcell Polyurathane gasket is now 50% thicker and is not subject to “compression set” like many rubber compounds. This is important when you need to open the NavPod in the future in order to service your electronics. The gasket will continue to do its job.

Nickel Chrome Plated Stainless Steel
We use all 316 stainless steel hardware that is supplied with each NavPod. Large round head tamperproof screws have deeper sockets for the NavPod wrench for better holding ability when tightening than screws used on our Traditional Series NavPod. For Gen3 NavPods we provide nickel chrome-plated stainless steel tamperproof screws for security combined with a little bling!

Commitment to quality
We are committed to producing high quality Waterproof Housings for Marine Electronics. We stand behind our commitment by offering a 10-year warranty on all new Gen3 NavPods. We want you to be a NavPod customer for life and are willing to earn your trust and loyalty.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

You have questions please contact us
