Description

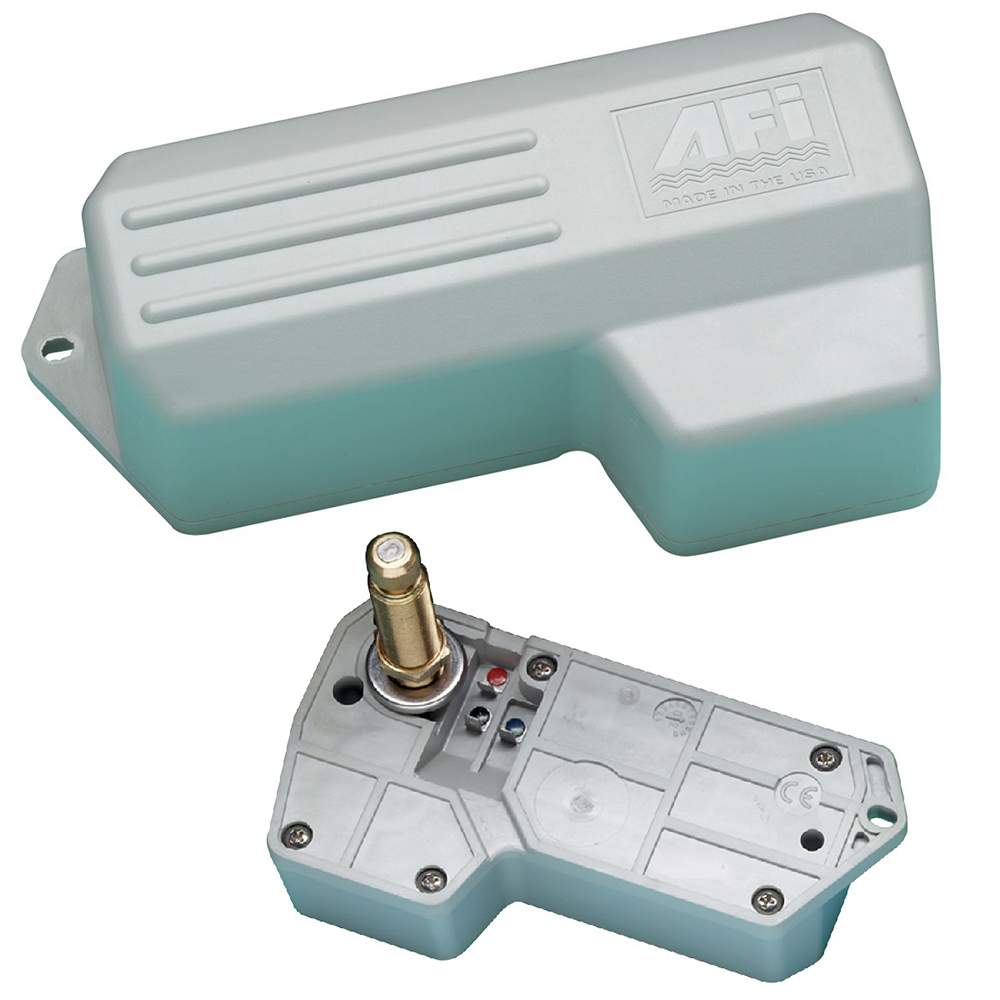

MARINCO 12V 1000 WATERPROOF WIPER MOTOR W 2.5" SHAFT AND
Wiper Motor, 1000 Series, 12V, 2.5" Shaft, 65° Sweep
The 1000 Waterproof Wiper Motor has a fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic. It powers 18" Deluxe arm and 18" Deluxe blade combination at sweep sets of 80 degree or less or 16" Deluxe arm and 16" Deluxe blade combinations at a sweep set of 110 degree.
Features:
- Factory pre-set sweep of 80 degree or 110 degree adjustable to 50 degree, 65 degree, 80 degree or 110 degree
- 0.625" diameter shaft (16 mm)
- 12 volt heavy-duty motor with anti-rotation drive shaft
- Knurled drive shaft and solid brass arm drive nut
- Coast to park with adjustable right or left self parking
- Retail version includes 5 amp fuse and holder (on/off switch not included)
- RF shielded circuitry
- Weight: 1.75 lbs
- Available in two shaft lengths: 1.5" and 2.5" (includes .5" length of knurled arm fitting)
- Measures approximately 6.625" L x 3.375"W x 2" D
- Stall torque: 55 in-lbs (63 kgf/cm; 6.2 Nm)
- Stall current: 9.8-10.0 amps
- No load current: 0.8-1.2 amps
Product SKU: 86898
Product Brand: Marinco
Product Currency: USD
Product Price: 121.41
Price Valid Until: 1970-01-01
MARINCO 12V 1000 WATERPROOF WIPER MOTOR W 2.5″ SHAFT AND
Wiper Motor, 1000 Series, 12V, 2.5″ Shaft, 65° Sweep
The 1000 Waterproof Wiper Motor has a fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic. It powers 18″ Deluxe arm and 18″ Deluxe blade combination at sweep sets of 80 degree or less or 16″ Deluxe arm and 16″ Deluxe blade combinations at a sweep set of 110 degree.
Features:
- Factory pre-set sweep of 80 degree or 110 degree adjustable to 50 degree, 65 degree, 80 degree or 110 degree
- 0.625″ diameter shaft (16 mm)
- 12 volt heavy-duty motor with anti-rotation drive shaft
- Knurled drive shaft and solid brass arm drive nut
- Coast to park with adjustable right or left self parking
- Retail version includes 5 amp fuse and holder (on/off switch not included)
- RF shielded circuitry
- Weight: 1.75 lbs
- Available in two shaft lengths: 1.5″ and 2.5″ (includes .5″ length of knurled arm fitting)
- Measures approximately 6.625″ L x 3.375″W x 2″ D
- Stall torque: 55 in-lbs (63 kgf/cm; 6.2 Nm)
- Stall current: 9.8-10.0 amps
- No load current: 0.8-1.2 amps
You have questions please contact us
Additional information
| Weight | 1.8 lbs |
|---|---|
| Dimensions | 7 × 4 × 2 in |
| Brand | Marinco |
| Manufacturer Part Number | 37161 |
| Model | 37161 |
| UPC | 035028371610 |
| Type | Marinco |
