Marinco Waterproof Wiper Motor 12V – 2.5″ Shaft – 80° Sweep

MARINCO WATERPROOF WIPER MOTOR 12V 2.5″ SHAFT 80 DEGREE SWEEP

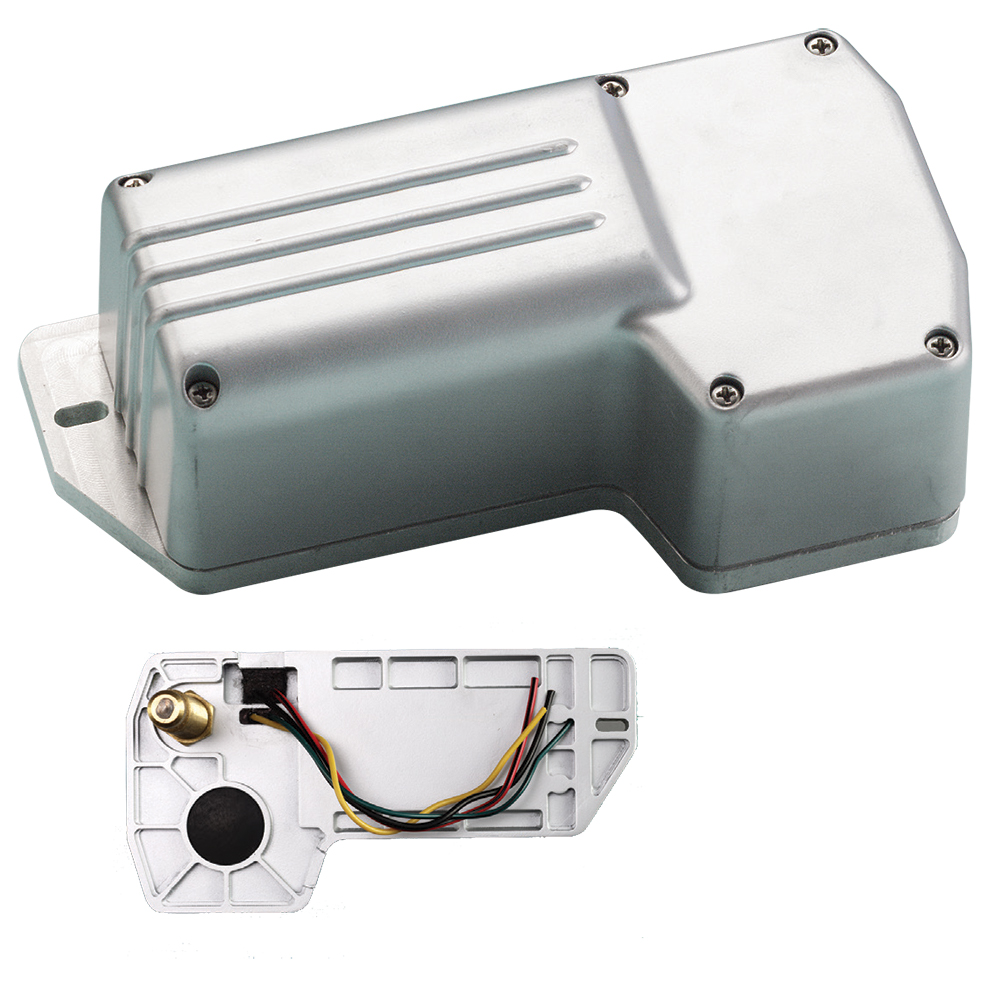

Waterproof Wiper Motor 12V – 2.5″ Shaft – 80° Sweep

The 1.5 Waterproof Wiper Motor is made with a fully sealed powder coated aluminum waterproof base and housing to power a 22″ Deluxe arm and 22″ Deluxe blade combination or a 20″ Premier arm and 20″ Premier blade combination.

Features:

• Available in three shaft lengths: 1.5″, 2.5″ and 3.5″ (includes .5″ length of knurled arm fitting)
• Factory pre-set sweep angles of 80 degrees or 110 degrees, with easy adjustment to 45 degrees or 60 degree
• Chrome plated solid brass knurled drive nut with brass and stainless steel driveshaft
• Two-speed motor
• Sealed 6″ wire leads, 16 AWG
• Adjustable right or left self-parking
• 0.625″ diameter shaft (16 mm)
• Available in 12V and 24V models
• Coast to park
• RF shielded circuitry
• Retail version includes 5 amp fuse and holder (operating switch not included)
• Measures approximately 7.75″ L x 4″ W x 2.75″ D
• Stall torque: 109 in-lbs (125 kgf/cm; 12.3 Nm)
• Stall current: 11.5-13.0 amps
• No load current: 0.5-1.2 amps
• Replaces AFI 2000 motor
