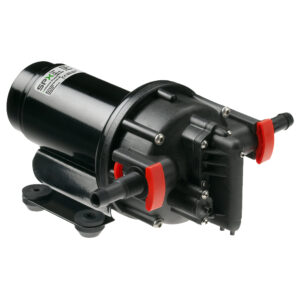

JOHNSON PUMP AQUA JET 3.5 GPM WATER PRESSURE SYSTEM 12V
Aqua Jet Water Pressure Systems - 3.5GPM - 12V
The five chamber Aqua Jet WPS-series provides a reliable heart for small boat and recreational vehicle water pressure systems. Compared to conventional three or four-chamber diaphragm pumps, the Aqua Jet demonstrates dramatically lower noise and water pulsation characteristics. It is recommended to install the WPS-pumps with an accumulator tank. Always use a PUMProtector inlet strainer before the pump intake.
Diaphragm: Santoprene
Valves EPDM
Body: PP/PPA
Motor: 85W
Capacity: 13 l/min - 3.5 GPM
Pressure Cut Off:2.8 bar - 41psi
Fuze Size: 10 A
Connection:3/8" NPT/hose 1/2", 1/2"NPT/Hose 3/4", 1/2" NPT, 3/4" Hose
Weight: 2 kg /4.5lbs
Length: 236,5 mm/9.31"
Width: 210 mm/8.25"
Height: 116 mm/4.575"
Product SKU: 49137
Product Brand: Johnson Pump
Product Currency: USD
Product Price: 124.96
Price Valid Until: 1970-01-01
JOHNSON PUMP AQUA JET 3.5 GPM WATER PRESSURE SYSTEM 12V
Aqua Jet Water Pressure Systems – 3.5GPM – 12V
The five chamber Aqua Jet WPS-series provides a reliable heart for small boat and recreational vehicle water pressure systems. Compared to conventional three or four-chamber diaphragm pumps, the Aqua Jet demonstrates dramatically lower noise and water pulsation characteristics. It is recommended to install the WPS-pumps with an accumulator tank. Always use a PUMProtector inlet strainer before the pump intake.
Diaphragm: Santoprene
Valves EPDM
Body: PP/PPA
Motor: 85W
Capacity: 13 l/min – 3.5 GPM
Pressure Cut Off:2.8 bar – 41psi
Fuze Size: 10 A
Connection:3/8″ NPT/hose 1/2″, 1/2″NPT/Hose 3/4″, 1/2″ NPT, 3/4″ Hose
Weight: 2 kg /4.5lbs
Length: 236,5 mm/9.31″
Width: 210 mm/8.25″
Height: 116 mm/4.575″
You have questions please contact us
Additional information
| Weight | 6.3 lbs |
|---|---|
| Dimensions | 11 × 8 × 6 in |
| Brand | Johnson Pump |
| Manufacturer Part Number | 10-13395-103 |
| Model | 10-13395-103 |
| UPC | 7330717010461 |
| Country | CHINA |
| Type | Johnson Pump |
