Description

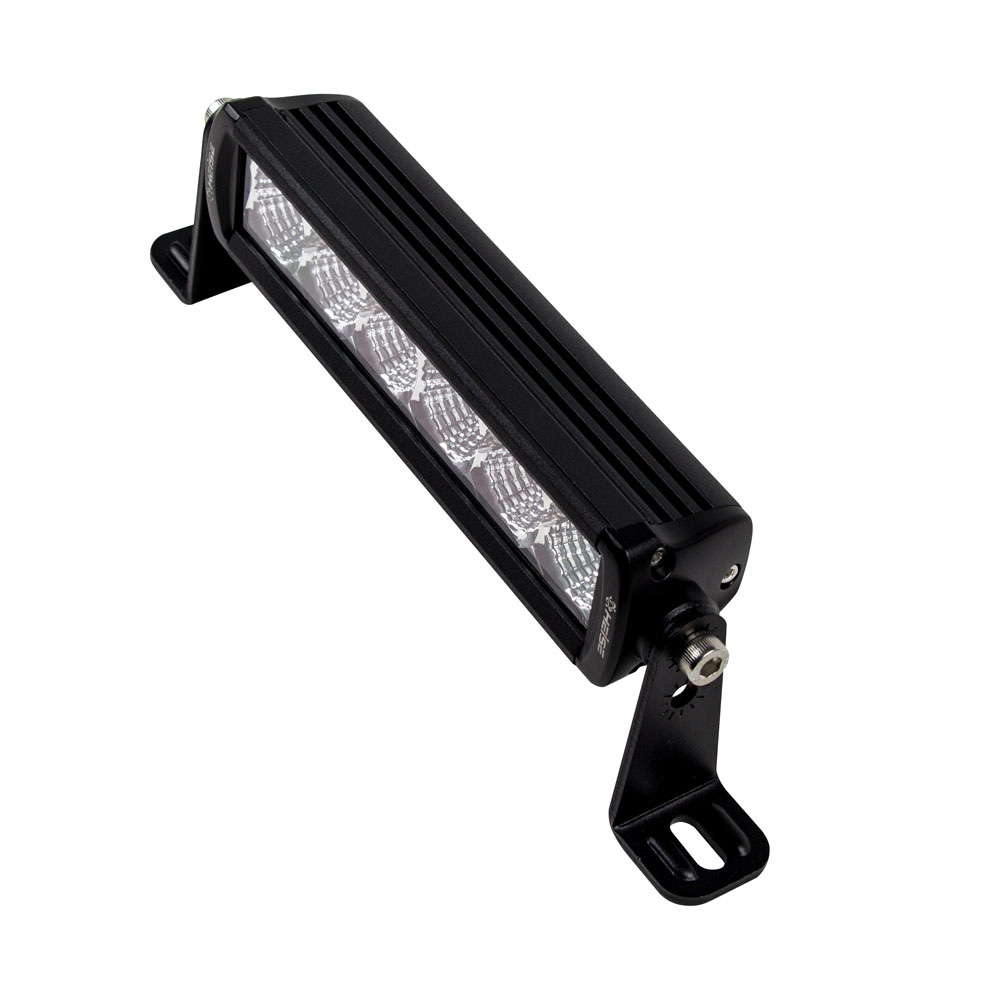

HEISE 9 1/4 SINGLE ROW LED LIGHT BAR SLIMLINE
Single Row Slimline LED Light Bar - 9-1/4"
SPECS
- Input Voltage: 10–30V DC
- Wattage: 18W (6–3W OSRAM LEDs)
- Raw Lumens: 1440
- LUX @ 10M: 22
- Color Temperature: 6000K
- Beam Pattern: 90° Flood
CONSTRUCTION
- Housing Material: Powder Coated Aluminum
- Housing Color: Black
- Membrane: Gore™
- Lens Material: PC
- Mounting Bracket: Side and Bottom Mounting
- Mounting: Side and Bottom
- Hole Dimensions:
- Brackets turned inward – 9"
- Brackets turned outward – 11"
- Mounting Bolt Drill – .25"
- Height of Light Bar Itself: 2"
- Depth of Light Bar Itself: 2"
- Electronics: Integrated–Epoxy Encapsulated
- Hardware: Stainless 316
OPERATION
- Operating Temperature: –40°C to +60°C
- Current Consumption: .9 amps @ 13.8 volts
- IP Rating: IP67
- Protections: Reverse Polarity
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product SKU: 69742
Product Brand: HEISE LED Lighting Systems
Product Currency: USD
Product Price: 188.85
Price Valid Until: 1970-01-01
HEISE 9 1/4 SINGLE ROW LED LIGHT BAR SLIMLINE
Single Row Slimline LED Light Bar – 9-1/4″
SPECS
- Input Voltage: 10–30V DC
- Wattage: 18W (6–3W OSRAM LEDs)
- Raw Lumens: 1440
- LUX @ 10M: 22
- Color Temperature: 6000K
- Beam Pattern: 90° Flood
CONSTRUCTION
- Housing Material: Powder Coated Aluminum
- Housing Color: Black
- Membrane: Gore™
- Lens Material: PC
- Mounting Bracket: Side and Bottom Mounting
- Mounting: Side and Bottom
- Hole Dimensions:
- Brackets turned inward – 9″
- Brackets turned outward – 11″
- Mounting Bolt Drill – .25″
- Height of Light Bar Itself: 2″
- Depth of Light Bar Itself: 2″
- Electronics: Integrated–Epoxy Encapsulated
- Hardware: Stainless 316
OPERATION
- Operating Temperature: –40°C to +60°C
- Current Consumption: .9 amps @ 13.8 volts
- IP Rating: IP67
- Protections: Reverse Polarity
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
You have questions please contact us
Additional information
| Weight | 2.85 lbs |
|---|---|
| Dimensions | 19 × 5 × 5 in |
| Brand | HEISE LED Lighting Systems |
| Manufacturer Part Number | HE-SL914 |
| Model | HE-SL914 |
| UPC | 086429317417 |
| Country | CHINA |
| Type | HEISE LED Lighting Systems |
