Description

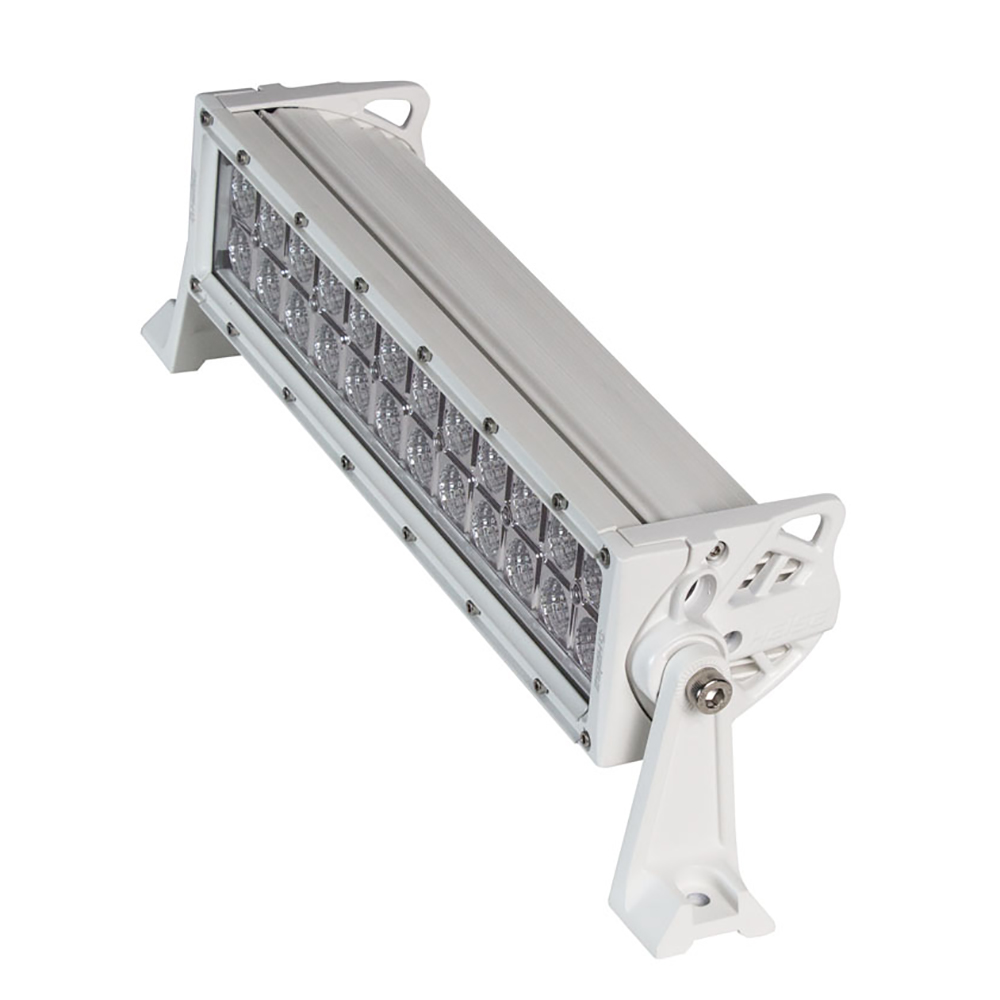

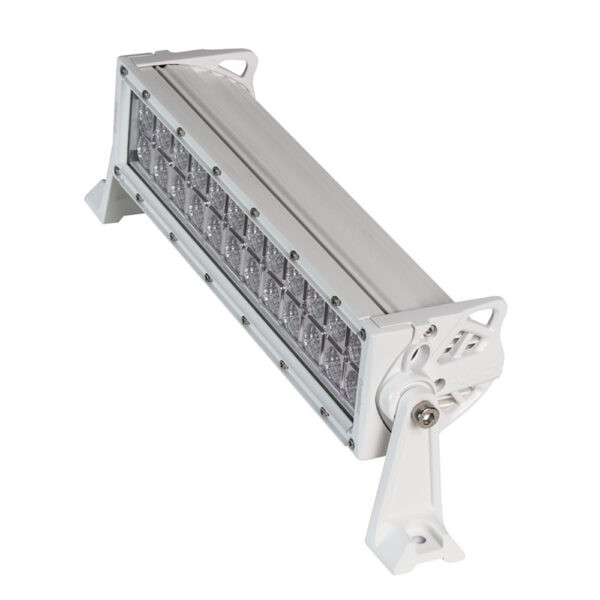

HEISE 14" DUAL ROW MARINE LED LIGHT BAR - WHITE CASE
Dual Row Marine LED Light Light Bar - 14"
SPECS
- Input Voltage: 10-30V DC
- Wattage: 72W (24-3W CREE LEDs)
- Raw Lumens: 5400
- Color Temperature: 6000K
- Beam Pattern: Combo/Flood(90deg)/Spot(8deg)
CONSTRUCTION
- Housing Material: Die-cast Aluminum Housing
- Housing Color: White Coating with UV Inhibitors
- Membrane: Gore™
- Lens Material: PC
- Mounting Bracket: Die-cast Aluminum
- Hole Dimensions: Brackets turned inward – 13.50in
- Brackets turned outward – 14.75in
- Mounting Bolt Drill – .25in
- Electronics: Integrated-Epoxy Encapsulated
- Hardware: Stainless 316
OPERATION
- Operating Temperature: -40degC to +60degC
- Current Consumption: 3.7amps at 13.8 volts
- IP Rating: IP68
- Protections: Reverse Polarity
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product SKU: 69771
Product Brand: HEISE LED Lighting Systems
Product Currency: USD
Product Price: 306.16
Price Valid Until: 1970-01-01
HEISE 14″ DUAL ROW MARINE LED LIGHT BAR – WHITE CASE
Dual Row Marine LED Light Light Bar – 14″
SPECS
- Input Voltage: 10-30V DC
- Wattage: 72W (24-3W CREE LEDs)
- Raw Lumens: 5400
- Color Temperature: 6000K
- Beam Pattern: Combo/Flood(90deg)/Spot(8deg)
CONSTRUCTION
- Housing Material: Die-cast Aluminum Housing
- Housing Color: White Coating with UV Inhibitors
- Membrane: Gore™
- Lens Material: PC
- Mounting Bracket: Die-cast Aluminum
- Hole Dimensions: Brackets turned inward – 13.50in
- Brackets turned outward – 14.75in
- Mounting Bolt Drill – .25in
- Electronics: Integrated-Epoxy Encapsulated
- Hardware: Stainless 316
OPERATION
- Operating Temperature: -40degC to +60degC
- Current Consumption: 3.7amps at 13.8 volts
- IP Rating: IP68
- Protections: Reverse Polarity
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
You have questions please contact us
Additional information
| Weight | 5.2 lbs |
|---|---|
| Dimensions | 19 × 6 × 6 in |
| Brand | HEISE LED Lighting Systems |
| Manufacturer Part Number | HE-MDR14 |
| Model | HE-MDR14 |
| UPC | 086429312894 |
| Country | CHINA |
| Type | HEISE LED Lighting Systems |
