Description

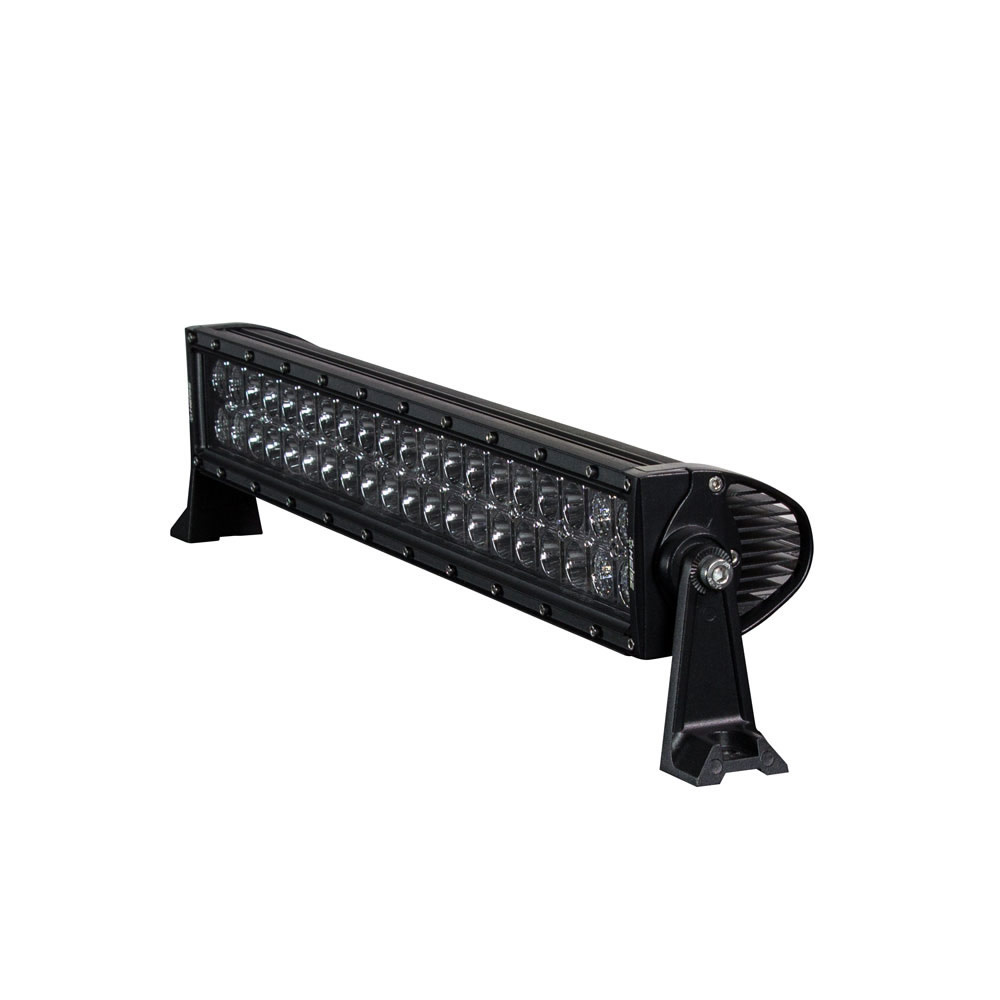

HEISE 22" DUAL ROW LED LIGHT BAR - BLACK CASE
Dual Row LED Light Bar - 22"
SPECS
- Input Voltage: 10-30V DC
- Power Consumption: 120W
- (40-3W CREE LEDs)
- Raw Lumens: 9600
- LUX @ 10M: 655
- Color Temperature: 6000K
- Beam Pattern: Combo/Flood(90°)/Spot(8°)
CONSTRUCTION
- Housing Material: Die-cast Aluminum Housing
- Housing Color: Black
- Lens Material: PC
- Mounting Bracket: Die-cast Aluminum
- Length of Bar without Mounting Brackets: 22.12"
- Hole Dimensions:
- Brackets turned inward - 21.50"
- Brackets turned outward - 23.75"
- Mounting Bolt Drill - .25"
- Height of Light Bar Itself: 3"
- Depth of Light Bar Itself: 3.50"
- Electronics: Integrated-Epoxy Encapsulated
- Hardware: Stainless 316
OPERATION
- Operating Temperature: -40°C to +60°C
- Current Consumption: 6.3 amps @ 13.8 volts
- IP Rating: IP67
- Protections: Reverse Polarity
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product SKU: 69721
Product Brand: HEISE LED Lighting Systems
Product Currency: USD
Product Price: 386.58
Price Valid Until: 1970-01-01
HEISE 22″ DUAL ROW LED LIGHT BAR – BLACK CASE
Dual Row LED Light Bar – 22″
SPECS
- Input Voltage: 10-30V DC
- Power Consumption: 120W
- (40-3W CREE LEDs)
- Raw Lumens: 9600
- LUX @ 10M: 655
- Color Temperature: 6000K
- Beam Pattern: Combo/Flood(90°)/Spot(8°)
CONSTRUCTION
- Housing Material: Die-cast Aluminum Housing
- Housing Color: Black
- Lens Material: PC
- Mounting Bracket: Die-cast Aluminum
- Length of Bar without Mounting Brackets: 22.12″
- Hole Dimensions:
- Brackets turned inward – 21.50″
- Brackets turned outward – 23.75″
- Mounting Bolt Drill – .25″
- Height of Light Bar Itself: 3″
- Depth of Light Bar Itself: 3.50″
- Electronics: Integrated-Epoxy Encapsulated
- Hardware: Stainless 316
OPERATION
- Operating Temperature: -40°C to +60°C
- Current Consumption: 6.3 amps @ 13.8 volts
- IP Rating: IP67
- Protections: Reverse Polarity
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
You have questions please contact us
Additional information
| Weight | 8 lbs |
|---|---|
| Dimensions | 27 × 7 × 6 in |
| Brand | HEISE LED Lighting Systems |
| Manufacturer Part Number | HE-DR22 |
| Model | HE-DR22 |
| UPC | 086429297924 |
| Country | CHINA |
| Type | HEISE LED Lighting Systems |
