Description
BLUE SEA 3092 ELCI 230VAC 16A 2 POLE

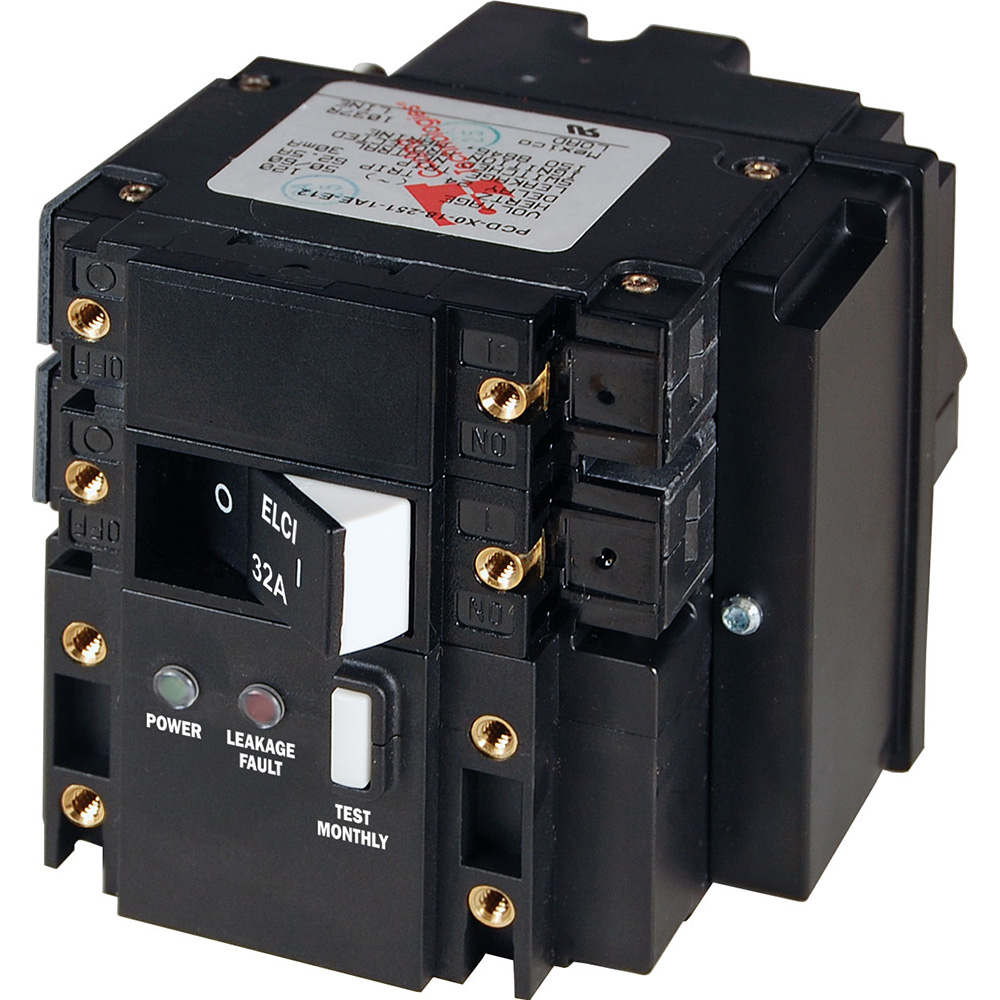

C-Series ELCI Main Circuit Breaker - Double Pole 230V AC 32A
Features:
- Trips on short circuit, overload, or leakage to ground
- Front panel mount—installed in a power distribution panel
Specifications:
- Amperage: 32A
- Actuator Style: Flat actuator
- Poles: 2
- Ignition Protected: Yes
- Maximum Voltage: 240V AC per pole
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Interrupt Capacity: 5000A
- Minimum Operating Temperature: -35 degrees C
- Maximum Operating Temperature: 66 degrees C
- Leakage Trip Amps: 30mA
- Mounting Screw: #6-32 Stainless Steel
- Mounting Screw Torque: 6in-lb (0.68 Nm)
- Switching Cycles: 10000
- Weight: 1.05 lbs (0.48kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product SKU: 105845
Product Brand: Blue Sea Systems
Product Currency: USD
Product Price: 486.16
Price Valid Until: 1970-01-01
BLUE SEA 3092 ELCI 230VAC 16A 2 POLE
C-Series ELCI Main Circuit Breaker – Double Pole 230V AC 32A
Features:
- Trips on short circuit, overload, or leakage to ground
- Front panel mount—installed in a power distribution panel
Specifications:
- Amperage: 32A
- Actuator Style: Flat actuator
- Poles: 2
- Ignition Protected: Yes
- Maximum Voltage: 240V AC per pole
- Circuit Breaker Type: Magnetic Hydraulic – trip free
- Interrupt Capacity: 5000A
- Minimum Operating Temperature: -35 degrees C
- Maximum Operating Temperature: 66 degrees C
- Leakage Trip Amps: 30mA
- Mounting Screw: #6-32 Stainless Steel
- Mounting Screw Torque: 6in-lb (0.68 Nm)
- Switching Cycles: 10000
- Weight: 1.05 lbs (0.48kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
You have questions please contact us
Additional information
| Weight | 1.2 lbs |
|---|---|
| Dimensions | 6 × 5 × 5 in |
| Brand | Blue Sea Systems |
| Manufacturer Part Number | 3092 |
| Model | 3092 |
| UPC | 632085030926 |
| Country | MEXICO |
| Type | Blue Sea Systems |
