Description

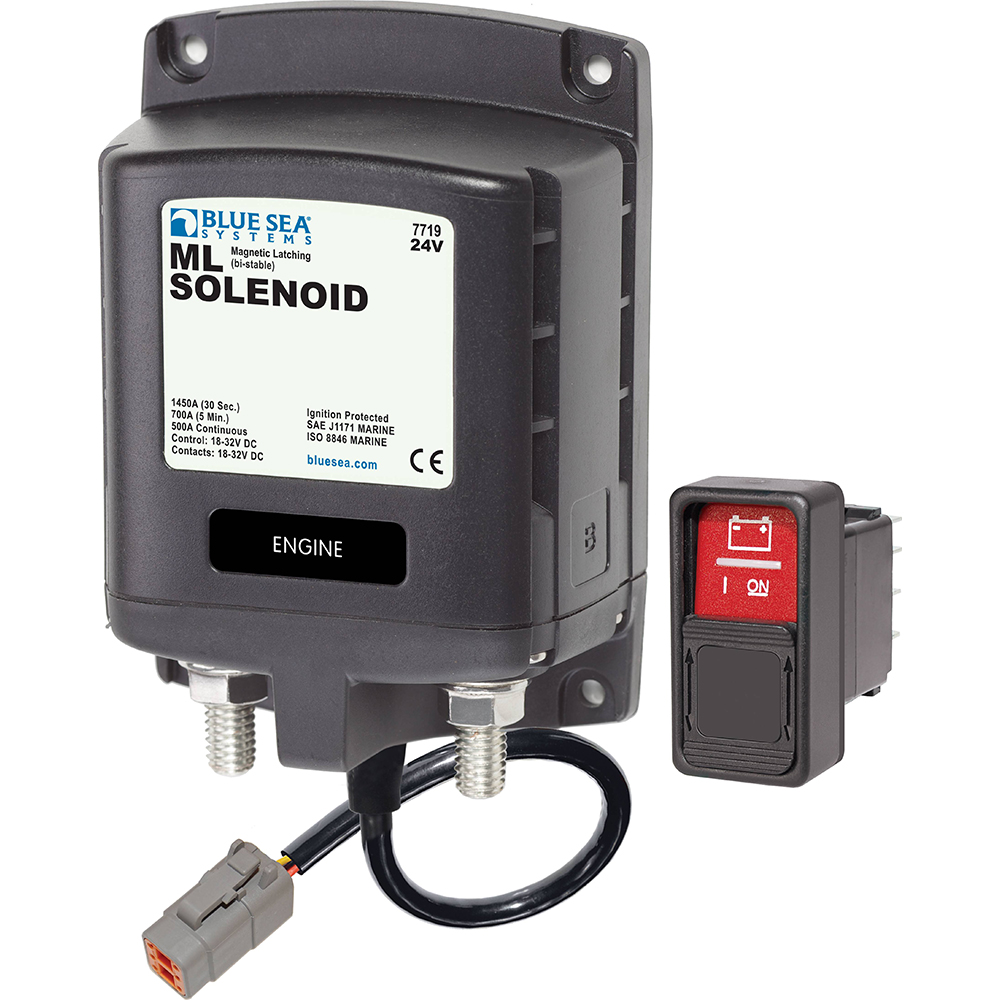

BLUE SEA 7719100 SOLENOID ML 24V WITH DEUTSCH CONNECTOR
7719100 - ML-Series Solenoid Switch - Deutsch Connector - 24V
For applications where sustained control signals are needed to emulate a normally open relay with a lower current draw.
Features:
- Silver alloy contacts provide high reliability for switching live loads
- LED output to remotely indicate switch state
- 3/8"- 16 tin-plated copper studs for maximum conductivity and corrosion resistance
- One-piece stainless flange nuts for safe and secure connections
- Label recesses for circuit identification
Technical Specifications:
- Control Circuit Voltage - 20.2 to 32.9 V DC
- Control Circuit Connection - Deutsch DTM
- Nominal Voltage - 24V DC
- Coil Function - Auto-releasing
- Amperage Operating Current - OFF - 8mA and ON 13mA
- Mechanical Endurance - 100,000 Cycles
- Terminal Ring Diameter Clearance - 1.18" (30mm)
- Terminal Stud Length - .875" (22mm)
- Terminal Stud Size - 3/8" - 16 (M10)
In the Box:
- 7719100 Solenoid
- Contura Switch w/integrated LED
- Instruction Manual
*Sold as an Individual
Product SKU: 94758
Product Brand: Blue Sea Systems
Product Currency: USD
Product Price: 177.93
Price Valid Until: 1970-01-01
BLUE SEA 7719100 SOLENOID ML 24V WITH DEUTSCH CONNECTOR
7719100 – ML-Series Solenoid Switch – Deutsch Connector – 24V
For applications where sustained control signals are needed to emulate a normally open relay with a lower current draw.
Features:
- Silver alloy contacts provide high reliability for switching live loads
- LED output to remotely indicate switch state
- 3/8″- 16 tin-plated copper studs for maximum conductivity and corrosion resistance
- One-piece stainless flange nuts for safe and secure connections
- Label recesses for circuit identification
Technical Specifications:
- Control Circuit Voltage – 20.2 to 32.9 V DC
- Control Circuit Connection – Deutsch DTM
- Nominal Voltage – 24V DC
- Coil Function – Auto-releasing
- Amperage Operating Current – OFF – 8mA and ON 13mA
- Mechanical Endurance – 100,000 Cycles
- Terminal Ring Diameter Clearance – 1.18″ (30mm)
- Terminal Stud Length – .875″ (22mm)
- Terminal Stud Size – 3/8″ – 16 (M10)
In the Box:
- 7719100 Solenoid
- Contura Switch w/integrated LED
- Instruction Manual
*Sold as an Individual
You have questions please contact us
Additional information
| Brand | Blue Sea Systems |
|---|---|
| Manufacturer Part Number | 7719100 |
| Model | 7719100 |
| Country | MEXICO |
| Type | Blue Sea Systems |
