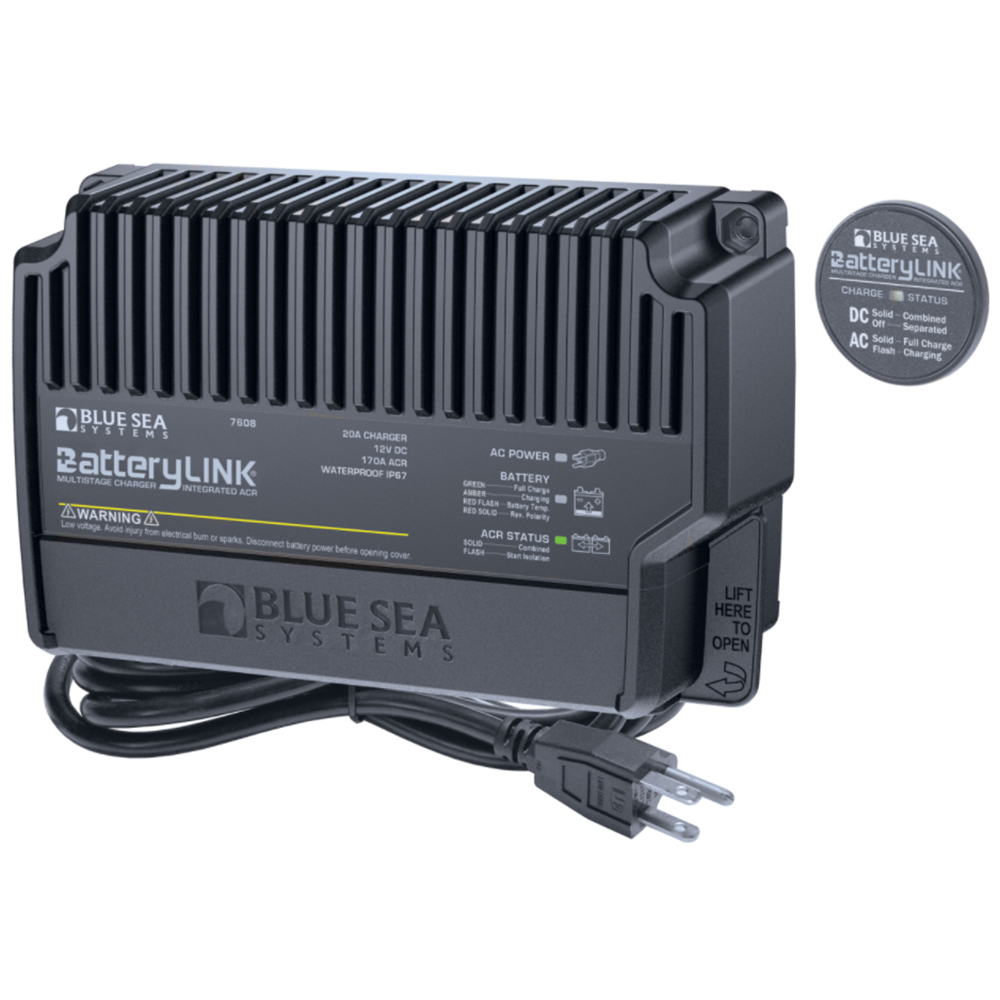

BLUE SEA 7608 BATTERYLINK 12V 20 AMP 2 BANK CHARGER
7608 BatteryLink® Charger (North America) - 12V - 20Amp - 2 Bank
Charge at or away from the Dock
- Compact 12V 20A – 2 Bank AC Charger
- 170A Continuous ACR
- Remote Emergency Jump Start
- Battery Temperature Compensation
- Remote Display Included
- IP67 Waterproof
Specifications:
- Total Output Current: 20A
- Nominal Voltage: 12V DC
- Number of Outputs: 1 Negative/2 Positive
- Terminal Stud Torque: 60 in-lb (6.78 Nm)
- Continuous Rating: 65A
- Intermittent Rating: 115A
- Universal AC Input Voltage: 90-265V AC
- AC Input Frequency: 50/60Hz
- Typical Float Voltage: 13.5V DC
- Battery Types: AGM/Flooded/TPPL
- Cable Size to Meet Ratings: 10 AWG Negative Cable/6 AWG Positive cable
- Maximum Battery CCA: 850CCA
- Maximum Cable Size: 1/0 AWG (50mm)
- Operating Current: 10mA/60mA
- Plug Style: North American: NEMA 5-15P
- Recommended Battery Bank Sizes: 60Ah Minimum
- Terminal Stud Size: 1/4"-20
- Warranty: 5 Year
- Combine 30 sec: 13.5V
- Combine 2 Min: 13.0V
- Open 10 sec: 12.35V
- Open 30 sec: 12.75V
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product SKU: 68712
Product Brand: Blue Sea Systems
Product Currency: USD
Product Price: 322.73
Price Valid Until: 1970-01-01
BLUE SEA 7608 BATTERYLINK 12V 20 AMP 2 BANK CHARGER
7608 BatteryLink® Charger (North America) – 12V – 20Amp – 2 Bank
Charge at or away from the Dock
- Compact 12V 20A – 2 Bank AC Charger
- 170A Continuous ACR
- Remote Emergency Jump Start
- Battery Temperature Compensation
- Remote Display Included
- IP67 Waterproof
Specifications:
- Total Output Current: 20A
- Nominal Voltage: 12V DC
- Number of Outputs: 1 Negative/2 Positive
- Terminal Stud Torque: 60 in-lb (6.78 Nm)
- Continuous Rating: 65A
- Intermittent Rating: 115A
- Universal AC Input Voltage: 90-265V AC
- AC Input Frequency: 50/60Hz
- Typical Float Voltage: 13.5V DC
- Battery Types: AGM/Flooded/TPPL
- Cable Size to Meet Ratings: 10 AWG Negative Cable/6 AWG Positive cable
- Maximum Battery CCA: 850CCA
- Maximum Cable Size: 1/0 AWG (50mm)
- Operating Current: 10mA/60mA
- Plug Style: North American: NEMA 5-15P
- Recommended Battery Bank Sizes: 60Ah Minimum
- Terminal Stud Size: 1/4″-20
- Warranty: 5 Year
- Combine 30 sec: 13.5V
- Combine 2 Min: 13.0V
- Open 10 sec: 12.35V
- Open 30 sec: 12.75V
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
You have questions please contact us
Additional information
| Weight | 7.95 lbs |
|---|---|
| Dimensions | 13 × 9 × 5 in |
| Brand | Blue Sea Systems |
| Manufacturer Part Number | 7608 |
| Model | 7608 |
| UPC | 632085076085 |
| Country | CHINA |
| Type | Blue Sea Systems |
