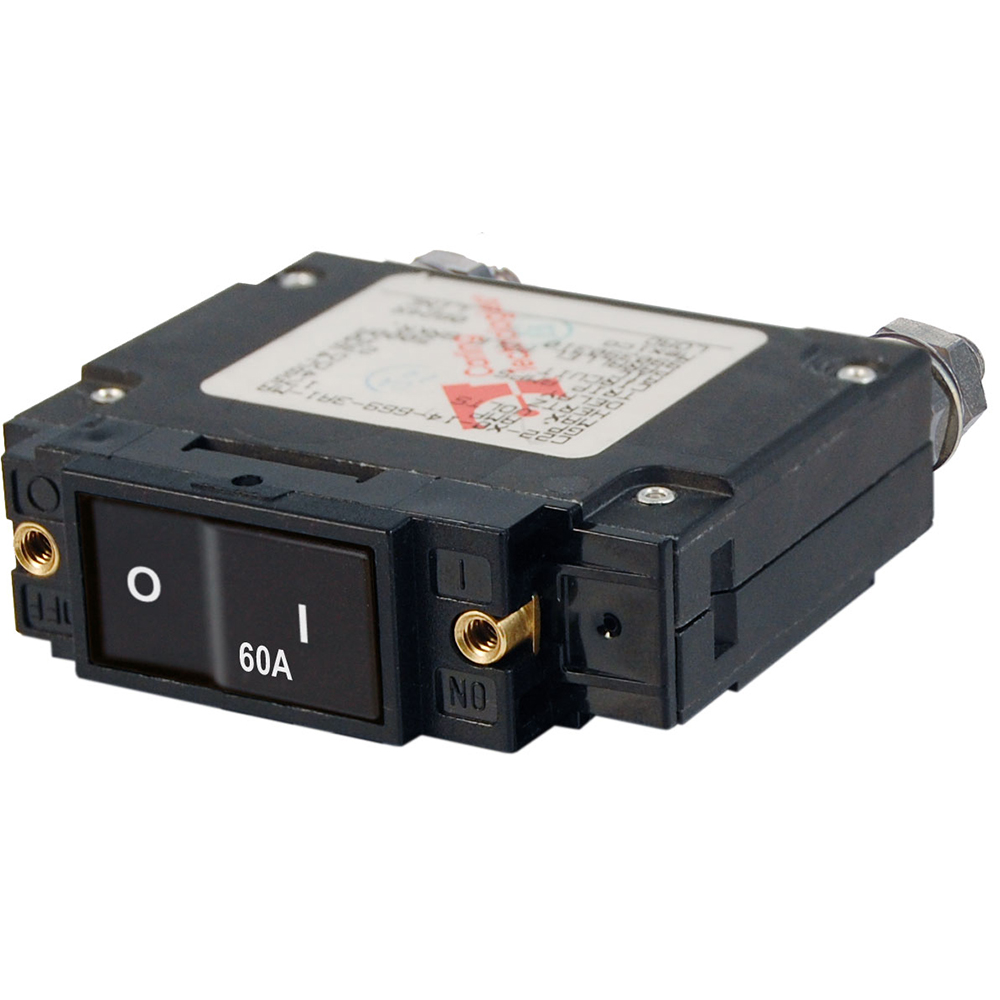

Blue Sea 7547 C-Series Flat Rocker Circuit Breaker – Single Pole – 60A

BLUE SEA 7547 C-SERIES ROCKER CIRCUIT BREAKER 60A

C-Series Flat Rocker Circuit Breaker – Single Pole – 60A

Features:

• Rocker actuator is flush in the “ON” position, eliminating the risk of accidential switching

• Color actuator indicates “OFF” position

• Provides overcurrent protection for inverters, bow thrusters, and windlasses

• Combines switching and circuit protection into a single device

• “Trip Free” – cannot be held closed after trip

• Ignition protectedsafe for installation aboard gasoline powered boats

Specifications:

• Amperage: 60A AC / 60A DC

• Actuator Style: Flat Rocker

• Poles: 1

• Maximum Voltage: 240V AC / 48V DC

• Circuit Breaker Type: Magnetic Hydraulic – trip free

• Terminal Stud Torque: 35 in-lb (3.95 Nm)
• Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC

• Minimum Operating Temperature: -40° C

• Maximum Operating Temperature: 85° C

• Mounting Screw: #6-32 Stainless Steel

• Mounting Screw Torque: 6 in-lb (0.68 Nm)

• Switching Cycles: 10000

• Terminal Stud: 1/4-20 Tin-Plated Brass

• Weight: 0.38lb (0.17 kg)
