Description

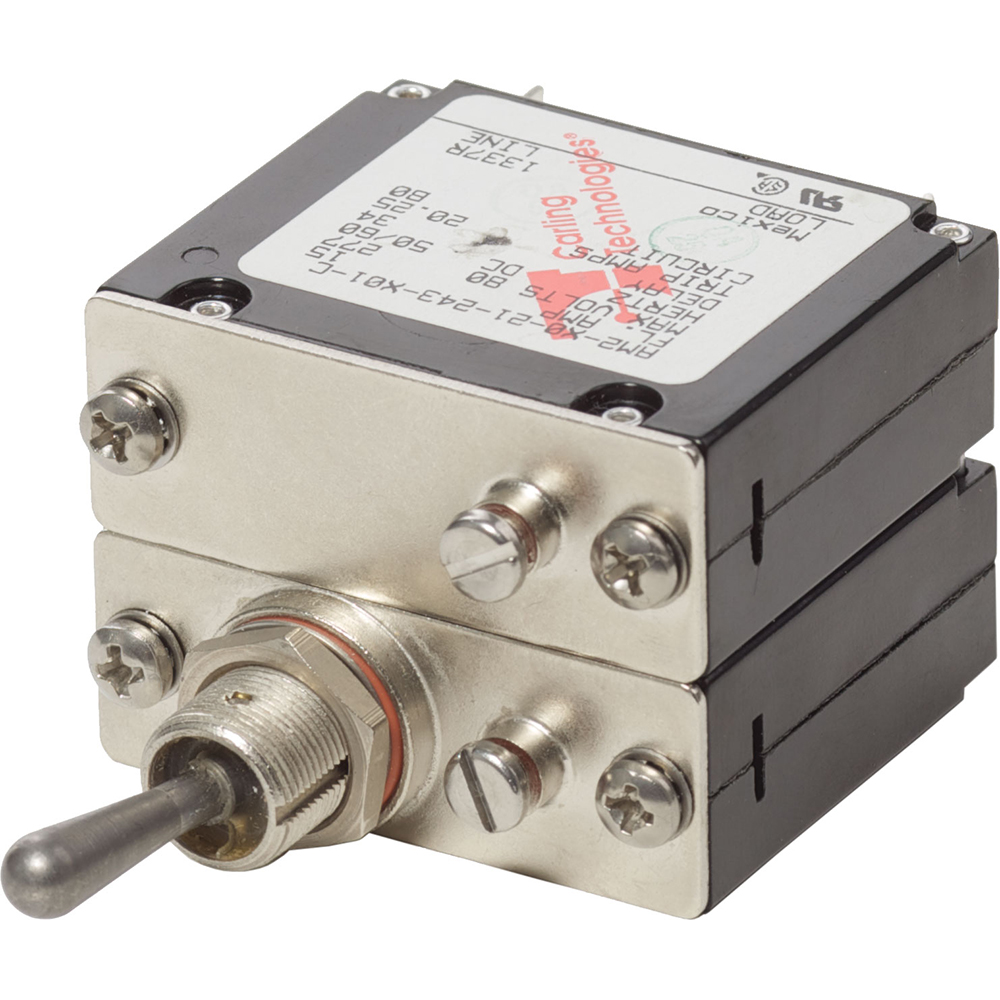

BLUE SEA 7312 COTS 15A MILSPEC CIRCUIT BREAKER
7312 COTS Military Grade A-Series 15 Amp
May be suitable for use when military specifications are required under CFR 46.
Specifications:
- Amperage: 15A
- Actuator Style: Metal Toggle
- Poles: 2
- Max Voltage: 277V AC, 65V DC
- Circuit Breaker Type: Magnetic Hydraulic - Trip Free
- Interrupt Capacity: 1500 A AC, 7500A DC
- Min Operating Temp: -40°C
- Max Operating Temp: 85°C
- Mounting Boss: 1/2-32 Hex Nut SS
- Mounting Nut Torque: 30"-lb
- Screw Terminal Torque: 14"-lb
- Switching Cycles: 6000 Electrical/4000 Mechanical
- Terminal Screw: #10-32 SS
- Weight: 0.13lb (0.06 kg)
- UL 1077
Product SKU: 78670
Product Brand: Blue Sea Systems
Product Currency: USD
Product Price: 71.76
Price Valid Until: 1970-01-01
BLUE SEA 7312 COTS 15A MILSPEC CIRCUIT BREAKER
7312 COTS Military Grade A-Series 15 Amp
May be suitable for use when military specifications are required under CFR 46.
Specifications:
- Amperage: 15A
- Actuator Style: Metal Toggle
- Poles: 2
- Max Voltage: 277V AC, 65V DC
- Circuit Breaker Type: Magnetic Hydraulic – Trip Free
- Interrupt Capacity: 1500 A AC, 7500A DC
- Min Operating Temp: -40°C
- Max Operating Temp: 85°C
- Mounting Boss: 1/2-32 Hex Nut SS
- Mounting Nut Torque: 30″-lb
- Screw Terminal Torque: 14″-lb
- Switching Cycles: 6000 Electrical/4000 Mechanical
- Terminal Screw: #10-32 SS
- Weight: 0.13lb (0.06 kg)
- UL 1077
You have questions please contact us
Additional information
| Weight | 0.35 lbs |
|---|---|
| Dimensions | 4 × 3 × 2 in |
| Brand | Blue Sea Systems |
| Manufacturer Part Number | 7312 |
| Model | 7312 |
| UPC | 632085173128 |
| Country | MEXICO |
| Type | Blue Sea Systems |
