Description
BLUE SEA 7138 CIRCUIT BREAKER 40A
187 - Series Thermal Circuit Breakers - Surface Mount40 Amp Circuit BreakerPN: 7138Features: Combines switching and circuit protection into a single deviceAll components meet SAE J1171 external ignition protection requirementsClear, single lever operation"Trip Free" design cannot be held "ON" during fault current conditionWaterproofRecessed mounting holes for clean appearanceLarge clearance around terminal studs accept heavy gauge wire lugsRobust 5/16 terminals provide high torque connectionsLarge lever with vertical/horizontal orientation provides indication of trip statusIgnition protected - safe for installation aboard gasoline powered boatsSpecifications Circuit Breaker Class:Type III - Switchable / Manual Reset - Trip FreeType:Thermally Responsive Bi-Metal BladeCase Material:Thermoset PolyesterVoltage Rating:48 Volts DC MaximumInterrupt Rating:5,000 Amperes @12 Volts DC 3,000 Amperes @24 Volts DC 1,500 Amperes @42 Volts DCOperating Temperature Range:-25C° to +82C°WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product SKU: 20558
Product Brand: Blue Sea Systems
Product Currency: USD
Product Price: 65.02
Price Valid Until: 1970-01-01

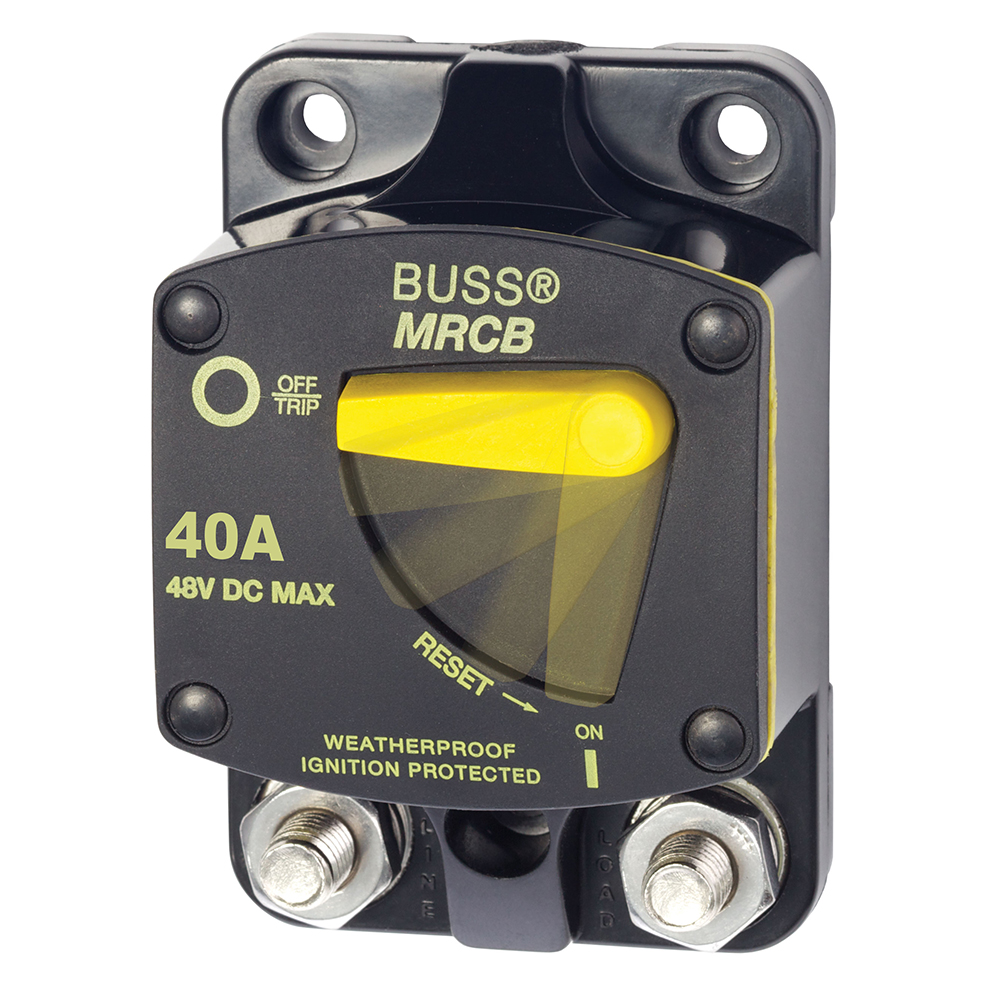

BLUE SEA 7138 CIRCUIT BREAKER 40A
187 – Series Thermal Circuit Breakers – Surface Mount
40 Amp Circuit Breaker
PN: 7138
Features:
- Combines switching and circuit protection into a single device
- All components meet SAE J1171 external ignition protection requirements
- Clear, single lever operation
- “Trip Free” design cannot be held “ON” during fault current condition
- Waterproof
- Recessed mounting holes for clean appearance
- Large clearance around terminal studs accept heavy gauge wire lugs
- Robust 5/16 terminals provide high torque connections
- Large lever with vertical/horizontal orientation provides indication of trip status
- Ignition protected – safe for installation aboard gasoline powered boats
| Specifications | |
| Circuit Breaker Class: | Type III – Switchable / Manual Reset – Trip Free |
| Type: | Thermally Responsive Bi-Metal Blade |
| Case Material: | Thermoset Polyester |
| Voltage Rating: | 48 Volts DC Maximum |
| Interrupt Rating: | 5,000 Amperes @12 Volts DC |
| 3,000 Amperes @24 Volts DC | |
| 1,500 Amperes @42 Volts DC | |
| Operating Temperature Range: | -25C° to +82C° |
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
You have questions please contact us
Additional information
| Weight | 0.6 lbs |
|---|---|
| Dimensions | 8 × 5 × 2 in |
| Brand | Blue Sea Systems |
| Manufacturer Part Number | 7138 |
| Model | 7138 |
| UPC | 632085171384 |
| Country | MEXICO |
| Type | Blue Sea Systems |
