BLUE SEA 4181 SS PUSH BUTTON SWITCH 15A OFF-(ON) BACKLIT
4181 Backlit Push Button Switch OFF/(ON) - 15A
Features:

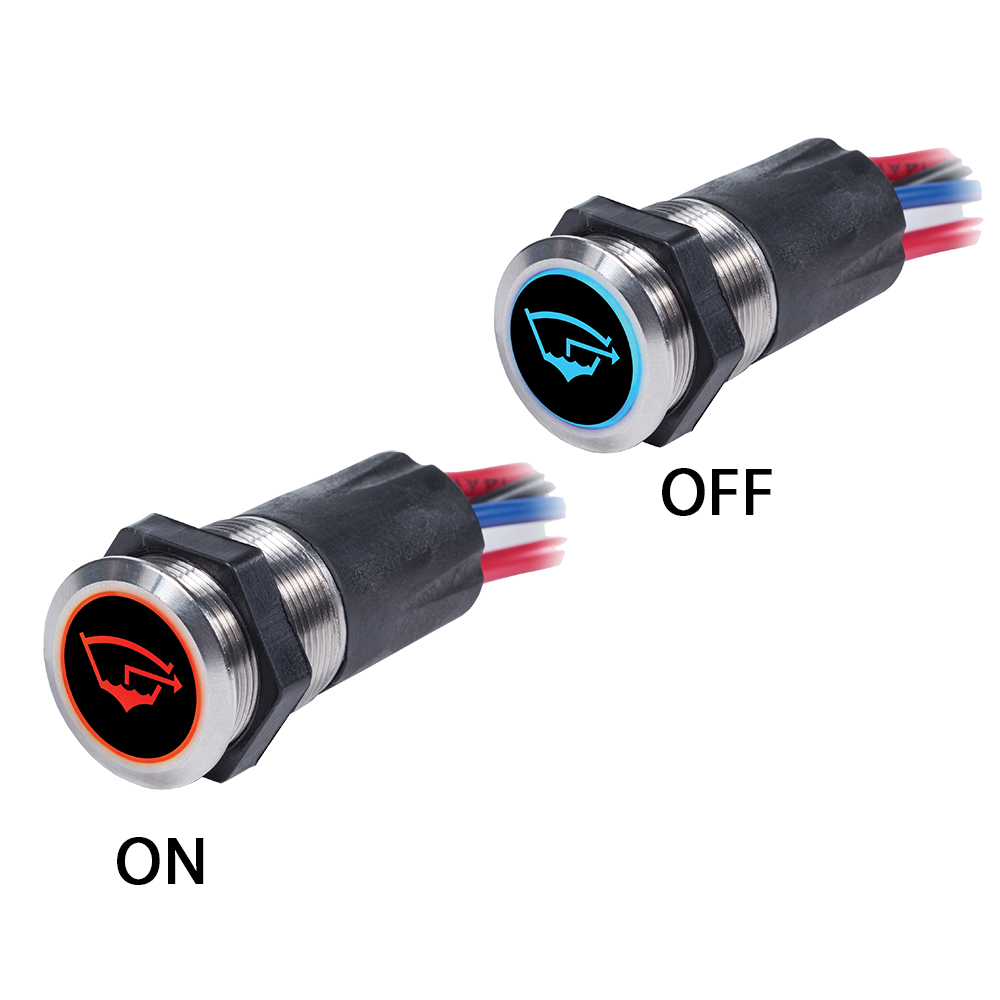

- Backlit button is blue when OFF and red when ON
- Five ICON labels included: Accessory, Lights, Anchor Light, Running Light, and Bilge Pump
- Additional 50 ICON label kit sold separately
Specifications:
- Action: OFF-(ON)
- Amperage: 15A @ 12V DC
- Nominal Voltage: 12V DC
- Maximum Voltage: 15V DC
- Maximum LED Operating Current: 20mA
- Switching Cycles: 10,000
- Temperature Range: -20°C to 55°C
- Termination: 3" - Bare Wire Pigtail
- Wire Size: Black & Blue Wires 18 AWG / Red & Red/White Wires 14AWG
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product SKU: 68730
Product Brand: Blue Sea Systems
Product Currency: USD
Product Price: 52.18
Price Valid Until: 1970-01-01
BLUE SEA 4181 SS PUSH BUTTON SWITCH 15A OFF-(ON) BACKLIT
4181 Backlit Push Button Switch OFF/(ON) – 15A
Features:
- Backlit button is blue when OFF and red when ON
- Five ICON labels included: Accessory, Lights, Anchor Light, Running Light, and Bilge Pump
- Additional 50 ICON label kit sold separately
Specifications:
- Action: OFF-(ON)
- Amperage: 15A @ 12V DC
- Nominal Voltage: 12V DC
- Maximum Voltage: 15V DC
- Maximum LED Operating Current: 20mA
- Switching Cycles: 10,000
- Temperature Range: -20°C to 55°C
- Termination: 3″ – Bare Wire Pigtail
- Wire Size: Black & Blue Wires 18 AWG / Red & Red/White Wires 14AWG
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
You have questions please contact us
Additional information
| Weight | 0.15 lbs |
|---|---|
| Dimensions | 10 × 3 × 2 in |
| Brand | Blue Sea Systems |
| Manufacturer Part Number | 4181 |
| Model | 4181 |
| UPC | 632085041816 |
| Country | CHINA |
| Type | Blue Sea Systems |
