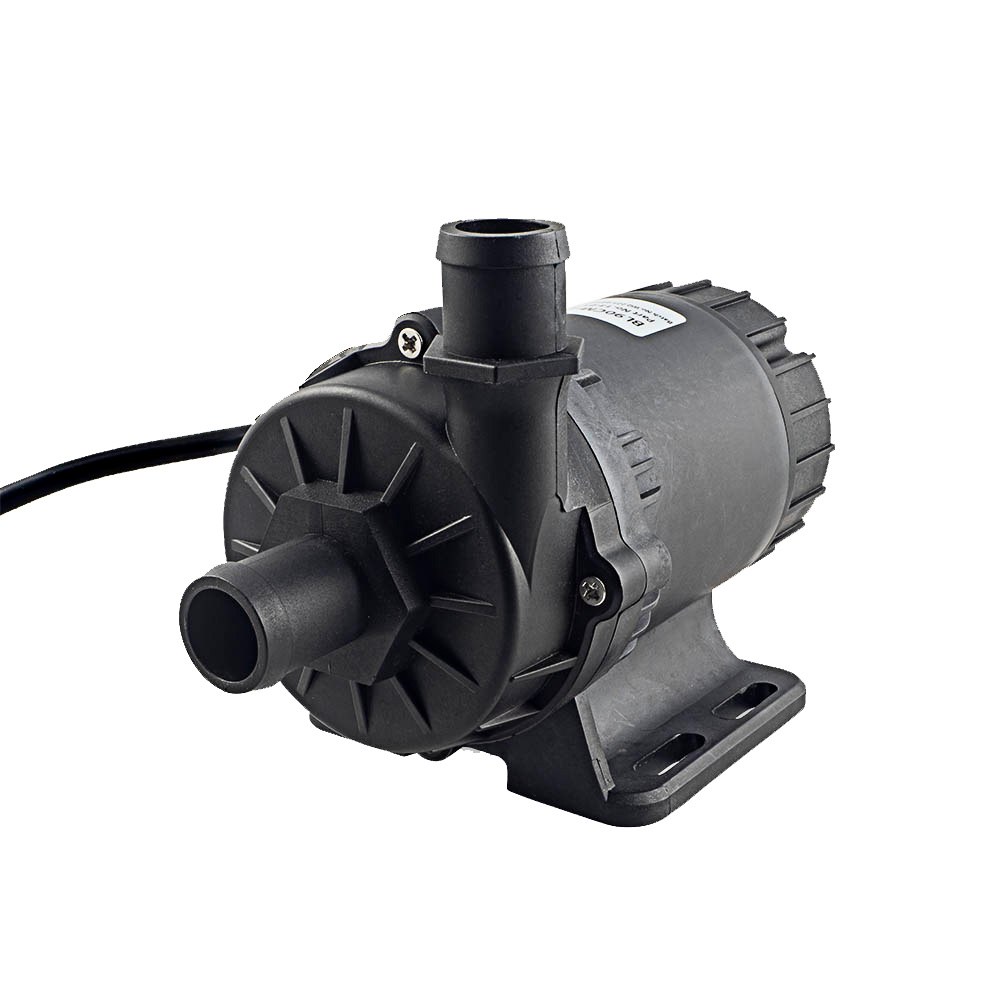

Albin Group DC Driven Circulation Pump w/Brushless Motor – BL90CM 12V

ALBIN PUMP 12V BRUSHLESS CIRCULATION PUMP BL90CM

 DC Driven Circulation Pump with Brushless Motor – BL90CM 12V

DC Driven Circulation Pump With Brushless Motor – BL90CM 12VThis circulation pump is for the circulation of water/antifreeze in heating or cooling systems on boats, buses, motor homes, and commercial vehicles. There are many advantages to this pump, such as its small size with high efficiency, maintenance-free, ceramic shaft, carbon fiber sleeve, completely waterproof (IP68), brushless DC control, and long service life.

Features:

• Motor brush-less magnetic isolated design
• For continuous duty
• Life span: 20,000 hours
• Materials of pump housing: ABS, PES/SPS7PA66
• Motor IP classification: IP 68
• Noise class: 35dB
• The max liquid temperature for continuous Duty is 80°C & Intermittent is 100°C

Specifications:

• Port size: (inch) 3/4″ / (mm) 20
• Weight: 0.89 kg
• Capacity at 0.1 bar: 51 l/min
• Capacity at 0.25 bar: 47 l/min
• Max load: 6.6 A
• Max power consumption: 80 W

*Includes pump and motor

You have questions please contact us
