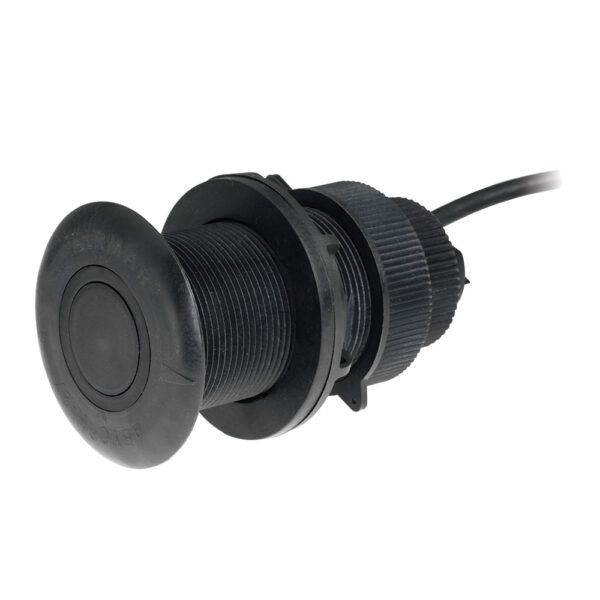

Airmar DT800 NMEA 2000 Thru-Hull Tilted Element Smart Sensor – 20°

AIRMAR DT800 NMEA 2000 20 DEGREE TILT PLASTIC

DT800 NMEA 2000 Thru-Hull Tilted Element Smart Sensor - 20°

• Function: Depth / Temperature, Material: Plastic, Fixed Tilt Angle: 20°
• Frequency: 235 kHz, Cone: 12°, Power: 100 Watts RMS
• Connector: 5-Pin NMEA 2000

Features:

• Low-profile, retractable, thru-hull transducer offers depth and temperature functions in a single, compact housing
• Tilted Element Transducer – unique design tilts ceramic element inside transducer housing, giving all the advantages of a fairing block without a hull protrusion
• Available in fixed 0°, 12° or 20° tilt – perfect for power and sail boat applications
• Low-profile housing compensates for hull deadrise, does not affect hull performance and provides accurate readings at high speeds
• Designed with Airmar's exclusive Broadband Ceramic Technology, 235 kHz element improves resolution without sacrificing sensitivity
• Smart™ Sensor with embedded microelectronics – transducer element and signal processor are only millimeters apart
• 235 kHz frequency prevents mutual interference with other echo sounders on vessel
• Retractable housing with self-closing valve minimizes water flow into the vessel when transducer is removed for servicing

Specifications:

• Mount: Thru-hull
• Fixed Element Tilt Angle: 20° (for 16° - 24° hull deadrise)
• Housing Material: Plastic
• Connector: 5-pin NMEA 2000®
• Cable Length: 20 ft.
• Frequency: 235 kHz
• Cone: 12°
• Power: 100 Watts RMS
• Depth Sensor Range: 1.6 - 594 ft.
• Acoustic Window Material: Urethane
• Compatible Hull Materials: Fiberglass or metal
• Hole Diameter for Installation: 2"
• Dimensions: 4.92" H x 2.94" OD

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Product SKU: 70692

Product Brand: Airmar

Product Currency: USD

Product Price: 395.85

Price Valid Until: 1970-01-01

AIRMAR DT800 NMEA 2000 20 DEGREE TILT PLASTIC

DT800 NMEA 2000 Thru-Hull Tilted Element Smart Sensor – 20°

• Function: Depth / Temperature, Material: Plastic, Fixed Tilt Angle: 20°
• Frequency: 235 kHz, Cone: 12°, Power: 100 Watts RMS
• Connector: 5-Pin NMEA 2000

Features:

• Low-profile, retractable, thru-hull transducer offers depth and temperature functions in a single, compact housing
• Tilted Element Transducer – unique design tilts ceramic element inside transducer housing, giving all the advantages of a fairing block without a hull protrusion
• Available in fixed 0°, 12° or 20° tilt – perfect for power and sail boat applications
• Low-profile housing compensates for hull deadrise, does not affect hull performance and provides accurate readings at high speeds
• Designed with Airmar’s exclusive Broadband Ceramic Technology, 235 kHz element improves resolution without sacrificing sensitivity
• Smart™ Sensor with embedded microelectronics – transducer element and signal processor are only millimeters apart
• 235 kHz frequency prevents mutual interference with other echo sounders on vessel
• Retractable housing with self-closing valve minimizes water flow into the vessel when transducer is removed for servicing

Specifications:

• Mount: Thru-hull
• Fixed Element Tilt Angle: 20° (for 16° – 24° hull deadrise)
• Housing Material: Plastic
• Connector: 5-pin NMEA 2000®
• Cable Length: 20 ft.
• Frequency: 235 kHz
• Cone: 12°
• Power: 100 Watts RMS
• Depth Sensor Range: 1.6 – 594 ft.
• Acoustic Window Material: Urethane
• Compatible Hull Materials: Fiberglass or metal
• Hole Diameter for Installation: 2″
• Dimensions: 4.92″ H x 2.94″ OD

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
