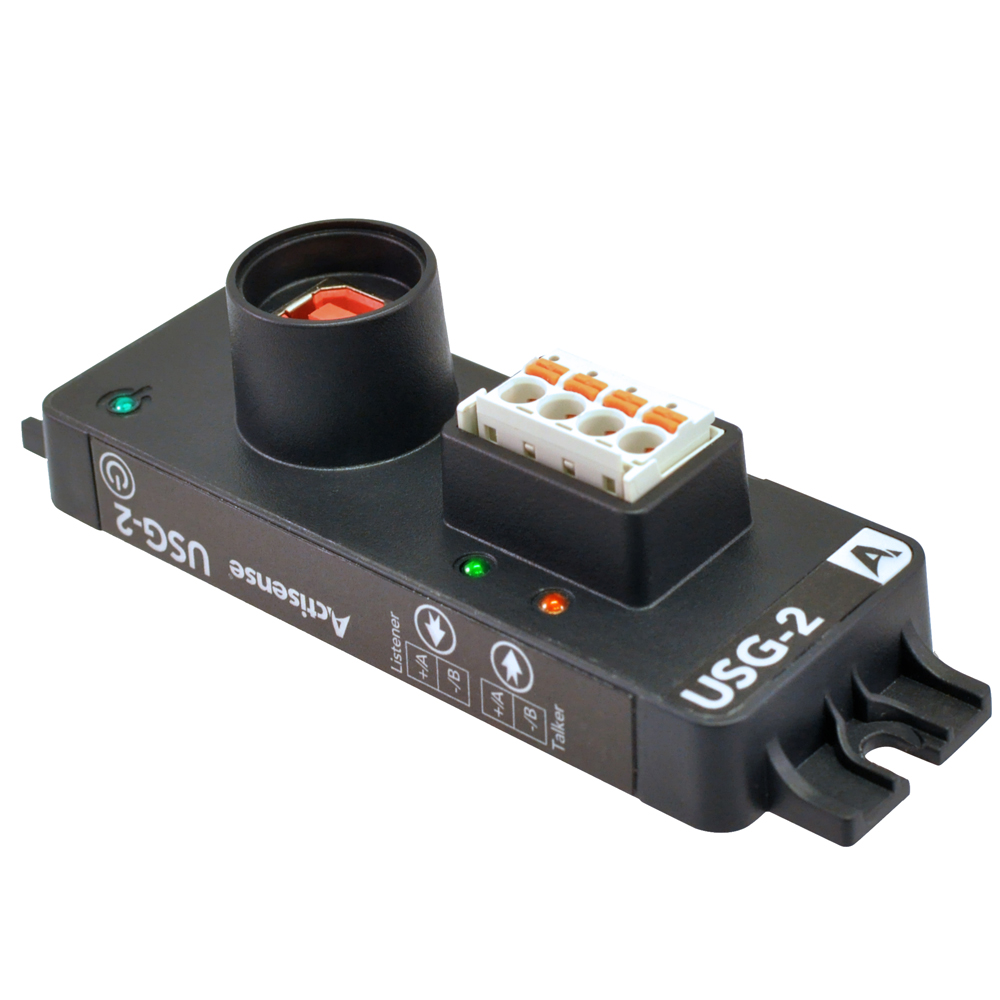

ACTISENSE USG-2 ISOLATED USB TO SERIAL GATEWAY FOR USE W/
USG-2 Isolated USB To Serial Gateway For Use w/NMEA0183,RS422 And RS232
The USG-2 converts a USB port into a bi-directional serial port suitable for
connecting to a marine standard NMEA 0183 data bus.
It provides a far safer connection when compared to standard USB to serial converters.Electrical isolation is provided by the ISO-DriveTM output and OPTO-isolated input making installation simple and free from groundloops.
The input uses the Actisense OPTO-isolation circuitry to protect any connected equipment from the most common system faults.The input can receive very low level signals that are often too small to be received by a PC erial port.
The high quality,shielded USB lead included with the USG-2 makes connection to a PC simple while providing a high level of water protection when connected to the custom designed USB socket.The pluggable screwless connector makes installation quick and easy, and the specifically designed DIN rail mount option ensures a reliable secure bulkhead mount for the USG-2.Multiple LEDs make diagnosing connection issues quick and easy.The blue power LED Illuminates solid blue when the USB driver has successfully loaded and the USG-2 is powered, while a green (receive) LED and an orange (transmit) LED indicate whether data is present.
Features:
- NMEA 0183, RS422
- RS232 compatible
- ISO-Drive™ technology
- Isolated input (2500V)
- Isolated output (1500V)
- Encapsulated electronics
- High retention USB socket
- Diagnostic LEDs
- Baud rates from 300 to 230400 bps
- Bulkhead mount,with optional DIN rail mount kit
- Pluggable screwless connector with locking latch & strain
Product SKU: 59427
Product Brand: Actisense
Product Currency: USD
Product Price: 205.91
Price Valid Until: 1970-01-01
ACTISENSE USG-2 ISOLATED USB TO SERIAL GATEWAY FOR USE W/
USG-2 Isolated USB To Serial Gateway For Use w/NMEA0183,RS422 And RS232
The USG-2 converts a USB port into a bi-directional serial port suitable for
connecting to a marine standard NMEA 0183 data bus.
It provides a far safer connection when compared to standard USB to serial converters.Electrical isolation is provided by the ISO-DriveTM output and OPTO-isolated input making installation simple and free from groundloops.
The input uses the Actisense OPTO-isolation circuitry to protect any connected equipment from the most common system faults.The input can receive very low level signals that are often too small to be received by a PC erial port.
The high quality,shielded USB lead included with the USG-2 makes connection to a PC simple while providing a high level of water protection when connected to the custom designed USB socket.The pluggable screwless connector makes installation quick and easy, and the specifically designed DIN rail mount option ensures a reliable secure bulkhead mount for the USG-2.Multiple LEDs make diagnosing connection issues quick and easy.The blue power LED Illuminates solid blue when the USB driver has successfully loaded and the USG-2 is powered, while a green (receive) LED and an orange (transmit) LED indicate whether data is present.
Features:
- NMEA 0183, RS422
- RS232 compatible
- ISO-Drive™ technology
- Isolated input (2500V)
- Isolated output (1500V)
- Encapsulated electronics
- High retention USB socket
- Diagnostic LEDs
- Baud rates from 300 to 230400 bps
- Bulkhead mount,with optional DIN rail mount kit
- Pluggable screwless connector with locking latch & strain
You have questions please contact us
Additional information
| Weight | 0.4 lbs |
|---|---|
| Dimensions | 7 × 6 × 2 in |
| Brand | Actisense |
| Manufacturer Part Number | USG-2 |
| Model | USG-2 |
| Type | Actisense |
