WICHARD 5/8 HR D SHACKLE
HR D Shackle - 16mm Diameter - 5/8"Features:Forged D shackle in HR stainless steel grade (17,4 PH)Outstanding working and breaking loadAn HR shackle can be up to 60% more resistant than a shackle in 316L stainless steelWLL: only for industrial applications (lifting i.e…)CE markingApplications:Applications requesting high loadsStandard applications of the shackleAttachment applications: blocks, head …Do not use it for mooring applications Specifications:Materials: HR 17.4 PH stainless steel gradeWorking load: (lb) 14990 / (kg) 6800 WLL: (lb) 8370 / (kg) 3800 Breaking load: (lb) 41880 / (kg) 19000 Weight: (lb) 1.023 / (g) 464 Dimensions:A: (inch) 2 13/64" / (mm) 56 B: (inch) 1 17/64" / (mm) 32 D diameter: (inch) 5/8" / (mm) 16 Caption:Working Load (WL): For nautical applicationsWorking Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5High Resistance (HR)*Sold as an Individual
Product SKU: 97707
Product Brand: Wichard Marine
Product Currency: USD
Product Price: 316.97
Price Valid Until: 1970-01-01

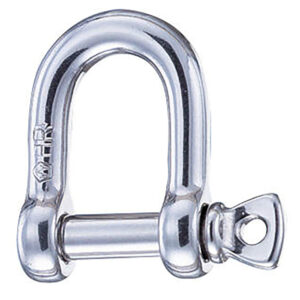

WICHARD 5/8 HR D SHACKLE
HR D Shackle – 16mm Diameter – 5/8″
Features:
- Forged D shackle in HR stainless steel grade (17,4 PH)
- Outstanding working and breaking load
- An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- Applications requesting high loads
- Standard applications of the shackle
- Attachment applications: blocks, head …
- Do not use it for mooring applications
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 14990 / (kg) 6800
- WLL: (lb) 8370 / (kg) 3800
- Breaking load: (lb) 41880 / (kg) 19000
- Weight: (lb) 1.023 / (g) 464
Dimensions:
- A: (inch) 2 13/64″ / (mm) 56
- B: (inch) 1 17/64″ / (mm) 32
- D diameter: (inch) 5/8″ / (mm) 16
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
You have questions please contact us
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 4 × 4 × 1 in |
| Brand | Wichard Marine |
| Manufacturer Part Number | 11208 |
| Model | 11208 |
| Type | Wichard Marine |
