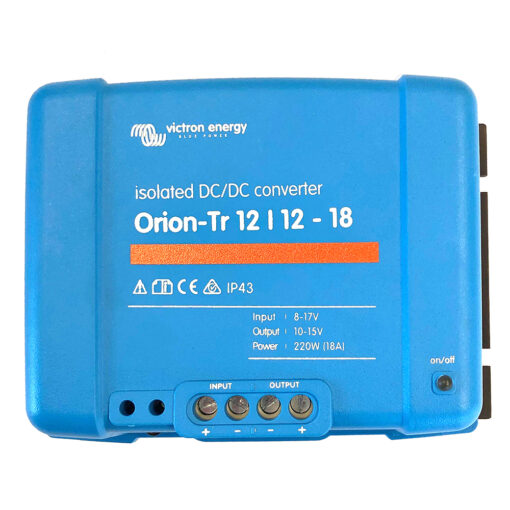

VICTRON ORION-TR DC CONVERTER 12/12-18A (220W) ISOLATED
Orion-TR 12/12-18A (220W) Isolated DC-DC ConverterRemote On/Off TerminalThe remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or for example the engine run/stop switch. All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output CurrentAn unlimited number of units can be connected in parallel. High Temperature Protected The output current will reduce at high ambient temperatures. IP43 Protection When installed with the screw terminals oriented downward. Screw Terminals No special tools are needed for installation. Input Fuse (not replaceable) On 12 V and 24 V input models only. Adjustable Output Voltage Not intended for battery charging (consider using an Orion-Tr Smart for battery charging).Specifications:Input Voltage Range: 8-17 VUnder Voltage Shut Down: 7 VUnder Voltage Restart: 7.5 VNominal Output Voltage: 12.2 VOutput Voltage Adjust Range: 10-15 VOutput Voltage Tolerance: +/- 0,2 VOutput Noise: 2 mV rmsCont. Output Current at Nominal Output Voltage and 40 Degrees C: 18 AMaximum Output Current (10 S) at Nominal Output Voltage: 25 AShort Circuit Output Current: 40 ACont. Output Power at 25 Degrees C: 280 WCont. Output Power at 40 Degrees C: 220 WEfficiency: 87 %No Load Input Current (2): < 80 mA Current Consumption: < 200uA when disabled via its remote portGalvanic Isolation: 200 VDC between input, output, and caseOperating Temperature Range: -20 to +55 Degrees C (derate 3 % per °C above 40 °C)Humidity: Max. 95 % non-condensingDC Connection: Screw terminalsMaximum Cable Cross-Section: 16 mm² AWG6Weight: 1.3 kg (3 lb)Dimensions (H x W x D): 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)Safety Standards: EN 60950Immunity Standards: EN 61000-6-3, EN 61000-6-1, EN 55014-2Automotive Directive Standards: ECE R10-5WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product.
Product SKU: 82868
Product Brand: Victron Energy
Product Currency: $
Product Price: 113.90
Price Valid Until: 1970-01-01
VICTRON ORION-TR DC CONVERTER 12/12-18A (220W) ISOLATED
Orion-TR 12/12-18A (220W) Isolated DC-DC Converter
Remote On/Off Terminal
The remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or for example the engine run/stop switch.
All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current
An unlimited number of units can be connected in parallel.
High Temperature Protected
The output current will reduce at high ambient temperatures.
IP43 Protection
When installed with the screw terminals oriented downward.
Screw Terminals
No special tools are needed for installation.
Input Fuse (not replaceable)
On 12 V and 24 V input models only.
Adjustable Output Voltage
Not intended for battery charging (consider using an Orion-Tr Smart for battery charging).
Specifications:
- Input Voltage Range: 8-17 V
- Under Voltage Shut Down: 7 V
- Under Voltage Restart: 7.5 V
- Nominal Output Voltage: 12.2 V
- Output Voltage Adjust Range: 10-15 V
- Output Voltage Tolerance: +/- 0,2 V
- Output Noise: 2 mV rms
- Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 18 A
- Maximum Output Current (10 S) at Nominal Output Voltage: 25 A
- Short Circuit Output Current: 40 A
- Cont. Output Power at 25 Degrees C: 280 W
- Cont. Output Power at 40 Degrees C: 220 W
- Efficiency: 87 %
- No Load Input Current (2): < 80 mA
- Current Consumption: < 200uA when disabled via its remote port
- Galvanic Isolation: 200 VDC between input, output, and case
- Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per °C above 40 °C)
- Humidity: Max. 95 % non-condensing
- DC Connection: Screw terminals
- Maximum Cable Cross-Section: 16 mm² AWG6
- Weight: 1.3 kg (3 lb)
- Dimensions (H x W x D): 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)
- Safety Standards: EN 60950
- Immunity Standards: EN 61000-6-3, EN 61000-6-1, EN 55014-2
- Automotive Directive Standards: ECE R10-5
