SAMLEX SCC-1208L 12V 8 AMPS SOLAR CHARGE CONTROLLER
Solar Charge Controller - 12V - 8AThe SCC-1208L Charge Controller is Micro-controller based for automatic, intelligent operation designed for 12 V nominal solar panels and 12 V battery systems. It has 3 Stage charging (Bulk, Absorption, Float) for 100% return of capacity and long battery life. It can be used with 2 types of batteries: Flooded/Web Cell or Sealed AGM. The SCC-1208L can manage up to 150 Watts of Solar Power.Features:Micro-controller based for automatic, intelligent operationDesigned for 12V nominal solar panels and 12V battery systems3 Stage charging (Bulk, Absorption, Float) for 100% return of capacity and long battery lifeFor use with 2 types of batteries: Flooded/Wet Cell or Sealed AGMTotally sealed, splash proof weather resistant design (Ingress Protection Rating IP65)Automatically turns on lights when dark and turns off during the dayMosfet based reverse current blocking prevents night-time battery discharge and lowers power lossProtections: Overload, Over-Temperature, Battery Under/Over Voltage, Reverse PolarityWide operating temperature range of -40°C to + 60°CSpecifications:Input: 12VAmps: 8 AmpsWeight: 0.28 (lbs) / 0.13 (kg)Dimensions: 3.8 x 1.8 x 1.0 (in)Dimensions: 9.65 x 4.57 x 2.54 (cm)Safety: FCC, CE, IP65Warranty: 5 Year LimitedApplications:Off-grid mobile rural systemsRural electrificationPower supply for remote equipmentMonitoring systems for the oil & gas industryTraffic, security, environment, and other remote monitoring and signaling systemsWater pumping systemsWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product SKU: 68833
Product Brand: Samlex America
Product Currency: $
Product Price: 60.00
Price Valid Until: 1970-01-01

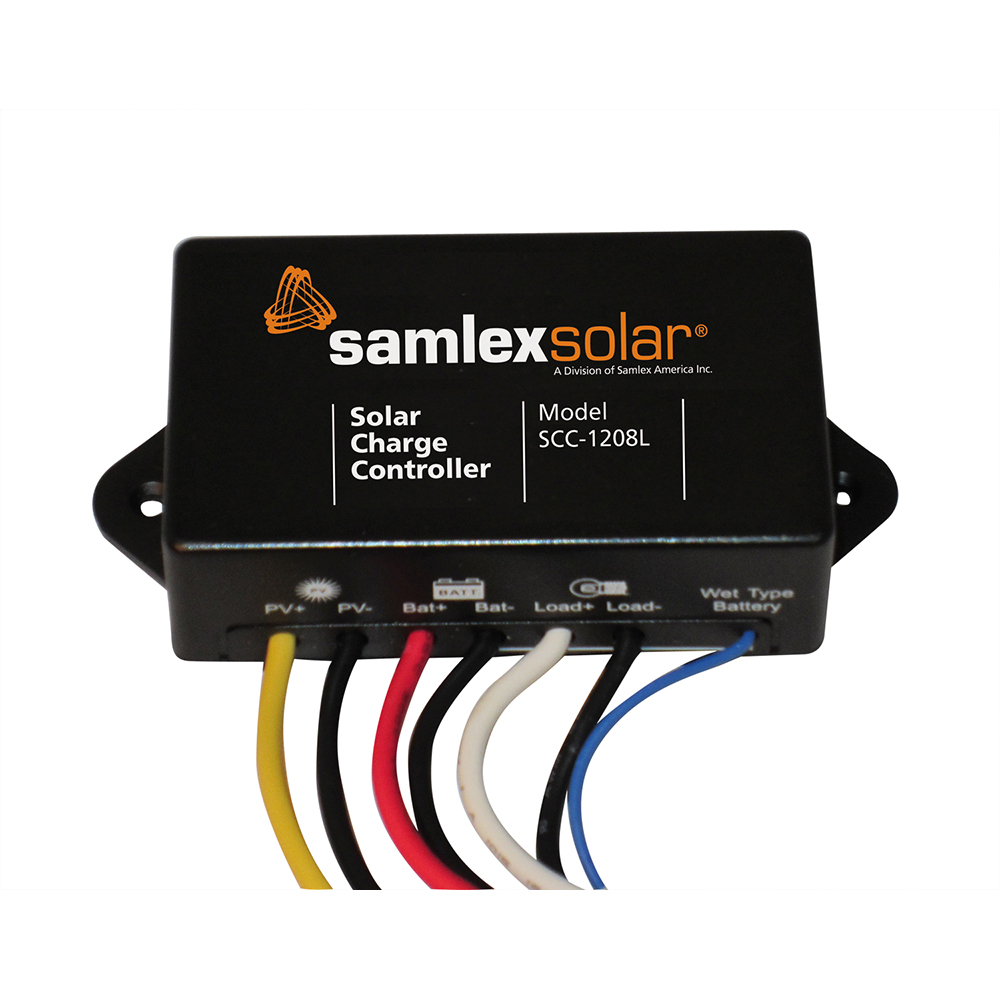

SAMLEX SCC-1208L 12V 8 AMPS SOLAR CHARGE CONTROLLER
Solar Charge Controller – 12V – 8A
The SCC-1208L Charge Controller is Micro-controller based for automatic, intelligent operation designed for 12 V nominal solar panels and 12 V battery systems. It has 3 Stage charging (Bulk, Absorption, Float) for 100% return of capacity and long battery life. It can be used with 2 types of batteries: Flooded/Web Cell or Sealed AGM. The SCC-1208L can manage up to 150 Watts of Solar Power.
Features:
- Micro-controller based for automatic, intelligent operation
- Designed for 12V nominal solar panels and 12V battery systems
- 3 Stage charging (Bulk, Absorption, Float) for 100% return of capacity and long battery life
- For use with 2 types of batteries: Flooded/Wet Cell or Sealed AGM
- Totally sealed, splash proof weather resistant design (Ingress Protection Rating IP65)
- Automatically turns on lights when dark and turns off during the day
- Mosfet based reverse current blocking prevents night-time battery discharge and lowers power loss
- Protections: Overload, Over-Temperature, Battery Under/Over Voltage, Reverse Polarity
- Wide operating temperature range of -40°C to + 60°C
Specifications:
- Input: 12V
- Amps: 8 Amps
- Weight: 0.28 (lbs) / 0.13 (kg)
- Dimensions: 3.8 x 1.8 x 1.0 (in)
- Dimensions: 9.65 x 4.57 x 2.54 (cm)
- Safety: FCC, CE, IP65
- Warranty: 5 Year Limited
Applications:
- Off-grid mobile rural systems
- Rural electrification
- Power supply for remote equipment
- Monitoring systems for the oil & gas industry
- Traffic, security, environment, and other remote monitoring and signaling systems
- Water pumping systems
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
You have questions please contact us
Additional information
| Weight | 0.4 lbs |
|---|---|
| Dimensions | 5 × 3 × 2 in |
| Brand | |
| Manufacturer Part Number | |
| Model | |
| UPC | |
| Country | |
| Type |
