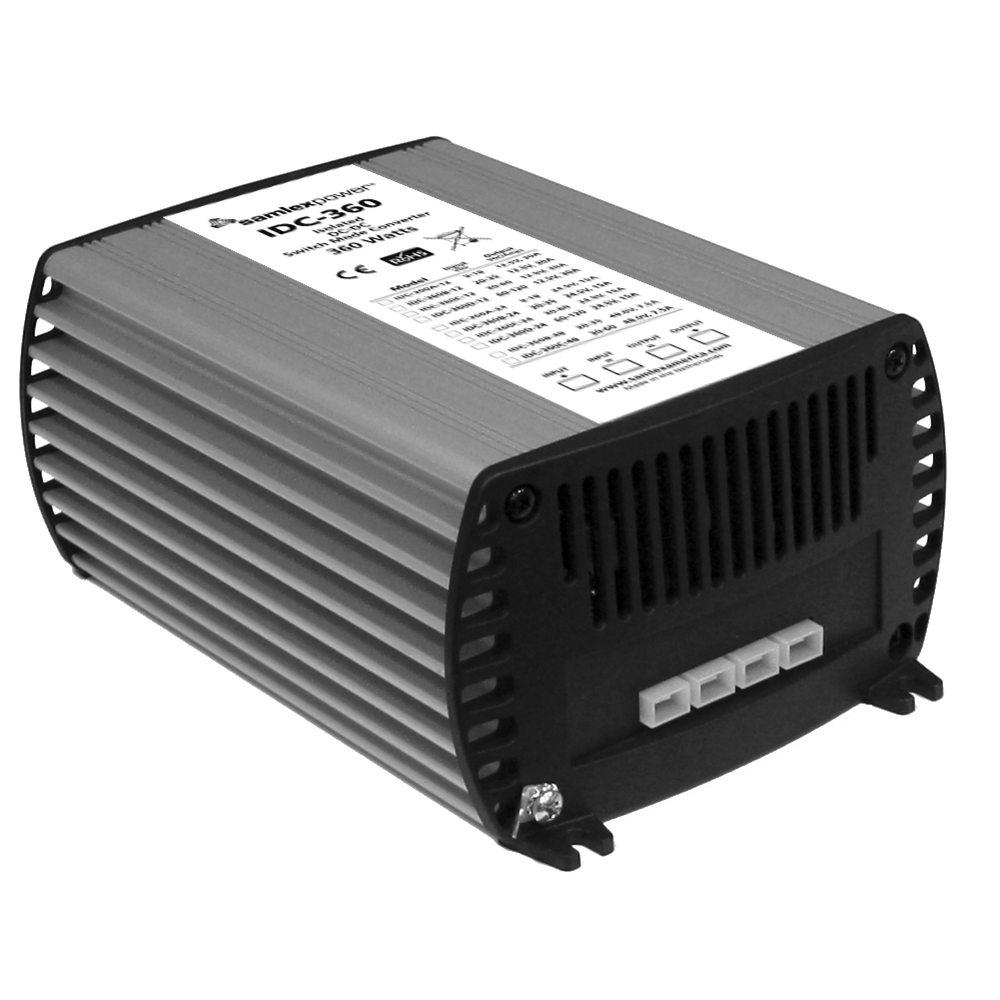

Samlex 360W Fully Isolated DC-DC Converter – 15A – 20-35V Input – 24V Output

SAMLEX IDC-360B-24 SWITCHIING DC-DC CONVERTER 20-35V INPUT

360W Fully Isolated DC-DC Converter – 15A – 20-35V Input – 24V Output

IDC-360 series is a complete line of high efficiency 360 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-360B-24 isolated DC-DC converter provides a highly regulated output DC voltage of 24.5 Volts for an input DC voltage range of 20-35 Volts and rated output current of 15 Amps. Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with 1/4” push-on flat blade “quick disconnect” connectors. IDC-360B-24 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95/54/EC.

Features:

• Fully Isolated
• Short Circuit Protected
• Current Limited
• CE Approved
• 2 Year Warranty

Specifications:

• Input: 20-35 VDC
• Output: 24 VDC
• Watts: 360
• Amps: 15 Amps
• Weight: 3.1 (lbs)
• Weight: 1.4 (kg)
• Dimensions: 5.23 x 7.5 x 3.27 (in)
• Dimensions: 132.8 x 190.5 x 83 (mm)
• Safety: CE
• Warranty: 2 Year Limited

Applications:

• Earth moving equipment
• Heavy trucks
• Buses
• Marine vehicles
• CB radios
• 24 Volt lighting systems
• AM/FM sound systems
