Samlex 20A Non-Isolated Step-Down 24VDC-12VDC Converter

20A Non-Isolated Step-Down 24VDC-12VDC Converter

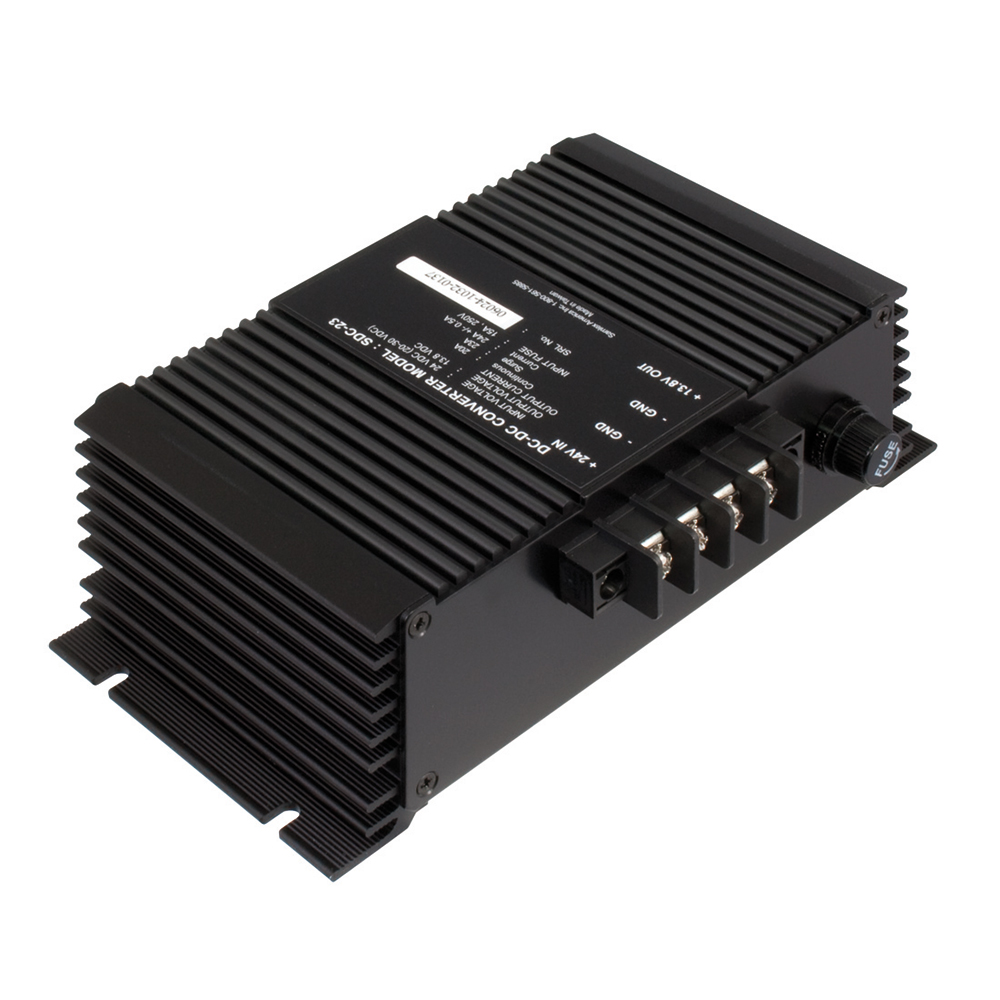

This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 35 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 20 Amps. The SDC-23 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overvoltage/short-circuit protection, temperature compensated current limit, output-side overvoltage protection, input-side overvoltage/ transient protection and input-side reverse polarity protection. The SDC-23 DC-DC converter is designed for heavy duty applications.

Features:

• Advanced switchmode design
• Mount in almost any location
• Compact and light weight
• Reverse polarity protection
• High efficiency
• Current limiting circuit
• Overvoltage crowbar circuit
• Non-Isolated for negative ground system

Specifications:

• Input: 20-30 VDC
• Output: 13.8 VDC
• Amps: 20 Amps
• Weight: 2.2 (lbs)
• Weight: 1 (kg)
• Dimensions: 7.75 x 4.75 x 2.4 (in)
• Dimensions: 19.7 x 12.1 x 6.1 (cm)
• Warranty: 2 Year Limited

Applications:

• Earth moving equipment
• Heavy trucks
• Buses
• Marine vehicles
• CB radios
• 12 Volt lighting systems
• AM/FM sound systems

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Product SKU: 67246

Product Brand: Samlex America

Product Currency: $

Product Price: 111.40
