Description
RONSTAN SERIES 40 BALL BEARING ORBIT BLOCK- SINGLE- BECKET-

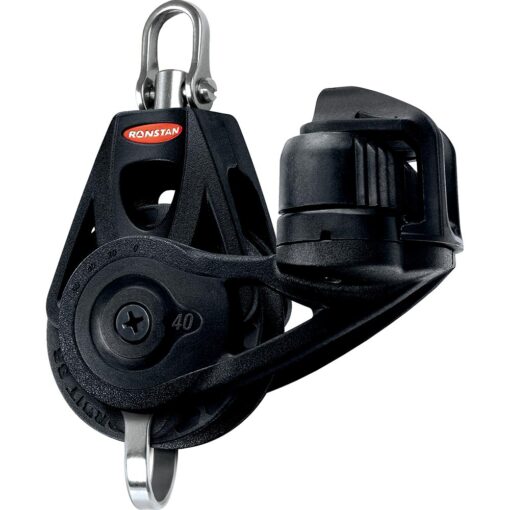

Series 40 Ball Bearing Orbit Block – Single – Becket – Cleat – Swivel Head
Features:
- Ultra Lightweight
- Low friction 2-stage Orbital ball bearing system
- Highest working load in its class
- Low profile and compact
- High performance cleating
Lightweight
Kilogram for kilogram of working load, BB and RT Orbit Blocks™ are the world’s lightest. The unique orbital design allows the bearing to only be in the active areas of the floating sheave. This minimizes the mass of the inactive return race and hub.
Weight and bulk are further reduced in the different block configurations. The ball bearing single and becket block has a through-sheave becket arrangement. The result? The lowest weight possible.
Multi-sheave blocks have only single intermediate cheeks and an ultra-light and efficient head arrangement. This gives a 30% weight saving advantage over the nearest competitor. Other brands just link together their single blocks. This results in unnecessary double cheeks between each sheave, held together by a heavy steel channel across the top of the block.
Highest Working Load In It’s Class
The orbital ball-bearing arrangement gives the largest possible bearing race diameter. This maximizes load performance. The proven Ronstan 2-stage bearing system features high compression grade acetal ball bearings and a secondary full-contact bearing. This gives minimum friction across the full working load range.
The floating sheave and bearing system is supported by a fiber-reinforced load frame. The design was computer modeled to be stress optimized.
Applications:
- Mainsheet systems on spinnaker sheet on dinghies to 5m (16ft)
- Spinnaker sheets on dinghies, sportsboats and small keel boats to 5m (16ft)
- Halyard, vang and backstay applications on boats to 8m (26ft)
- Control line applications on larger yachts
Materials:
- Ball Bearings – High compression strength carbon black Acetal.
- Stage 2 Bearing – Glass fibre reinforced, MoS2 impregnated Nylon
- Frame/Cheeks – Toughened, glass fibre reinforced Nylon
- Sheave – Carbon fiber reinforced, PTFE impregnated Nylon
You have questions please contact us
RONSTAN SERIES 40 BALL BEARING ORBIT BLOCK- SINGLE- BECKET-
Series 40 Ball Bearing Orbit Block - Single - Becket - Cleat - Swivel HeadFeatures:Ultra LightweightLow friction 2-stage Orbital ball bearing systemHighest working load in its classLow profile and compactHigh performance cleatingLightweightKilogram for kilogram of working load, BB and RT Orbit Blocks™ are the world’s lightest. The unique orbital design allows the bearing to only be in the active areas of the floating sheave. This minimizes the mass of the inactive return race and hub.Weight and bulk are further reduced in the different block configurations. The ball bearing single and becket block has a through-sheave becket arrangement. The result? The lowest weight possible.Multi-sheave blocks have only single intermediate cheeks and an ultra-light and efficient head arrangement. This gives a 30% weight saving advantage over the nearest competitor. Other brands just link together their single blocks. This results in unnecessary double cheeks between each sheave, held together by a heavy steel channel across the top of the block.Highest Working Load In It's ClassThe orbital ball-bearing arrangement gives the largest possible bearing race diameter. This maximizes load performance. The proven Ronstan 2-stage bearing system features high compression grade acetal ball bearings and a secondary full-contact bearing. This gives minimum friction across the full working load range.The floating sheave and bearing system is supported by a fiber-reinforced load frame. The design was computer modeled to be stress optimized.Applications:Mainsheet systems on spinnaker sheet on dinghies to 5m (16ft)Spinnaker sheets on dinghies, sportsboats and small keel boats to 5m (16ft)Halyard, vang and backstay applications on boats to 8m (26ft)Control line applications on larger yachtsMaterials:Ball Bearings - High compression strength carbon black Acetal.Stage 2 Bearing - Glass fibre reinforced, MoS2 impregnated NylonFrame/Cheeks - Toughened, glass fibre reinforced NylonSheave - Carbon fiber reinforced, PTFE impregnated Nylon
Product SKU: 70624
Product Brand: Ronstan
Product Currency: USD
Product Price: 99.19
Price Valid Until: 1970-01-01
Additional information
| Weight | 0.35 lbs |
|---|---|
| Dimensions | 7 × 4 × 2 in |
| Brand | |
| Manufacturer Part Number | |
| Model | |
| UPC | |
| Type |
