Raymarine I50 Speed Package w/ST900/P120 Thru-Hull

RAYMARINE I50 SPEED PACKAGE WITH ST900/P120 THRU HULL

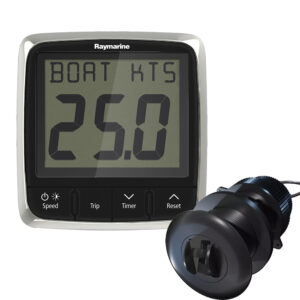

I50 Speed Package with ST900/P120 Thru-Hull

The i50 Speed instrument display is designed for easy viewing of your boat’s speed through the water or speed over the ground. The i50 Speed instrument can also display trip and log data as well as water temperature. Ideal for use on RIBs, powerboats, and small yachts, the compact yet surprisingly powerful SeaTalk i40 Depth instrument display can be easily seen, even when the lighting conditions are low thanks to its oversized digits and extra-sharp LCDs.

All i50 instruments are designed to fully integrate with Raymarine’s autopilots and other navigation equipment. Each i50 instrument can be configured as a Master display, hosting its transducer, or as a Repeater display, showing information from another source on the network. I50 instruments are SeaTalkng network-ready and can be easily adapted to connect to NMEA2000 or older SeaTalk networks.

Features:

• Oversized digits for easy viewing by day or night
• Red backlighting enhances night visibility
• SeaTalk NG, NMEA2000, and SeaTalk network compatible
• Built-in speed/temperature transducer interface
• Compact footprint
• Low power consumption
• Surface mount or optional trunnion mount kit

Specifications:

• Dimensions: Width: 110 mm (4.22 in), Height: 115 mm (4.52 in), Depth: 44 mm (1.7 in)
• Connections: 2 x SeaTalkng connections (compliant with SeaTalk), Transducer connections
• Relative Humidity: Maximum 93%
• Waterproof Rating: IPX6
• Storage Temperature: -30 °C to +70 °C (-22 °F to 158 °F)
• Operating Temperature: -20 °C to +55 °C (-13 °F to 131 °F)
• Current (Typical/Max): 45-65 mA (display only) / 200 mA maximum (transducer connected)c
• Nominal Supply Voltage: 12V DC
• Operating Voltage Range: 10V DC to 16V DC
• Power Consumption: < 1 W typical (display only), 2.4 W maximum (transducer connected)
• LEN (NMEA 2000 Load Equivalency Number): 4

What’s In The Box?

• i50 Instrument display
• Suncover (to match i70s, p70s, p70Rs, eS Series)
• Front bezel (to match i70s, p70s, p70Rs, eS Series)
• Gasket
• Suncover (to match a, c, e Series)
• Front bezel (to match a, c, e Series)
• 400mm (15.7 in) SeaTalkng spur cable
• SeaTalkng blanking plug
• Fixing screws x4
• Documentation
• ST900/P120 Speed/Temp transducer
