Newmar 32-12-10 DC Converter
Home / VEHICLES & PARTS > VEHICLE PARTS & ACCESSORIES > WATERCRAFT PARTS & ACCESSORIES

Newmar 32-12-10 DC Converter

  • 102605XL
  • 101870XL

$696.62 Original price was: $696.62.$480.43Current price is: $480.43.

Out of stock

Add to wishlist
SKU: 102302 Category: VEHICLES & PARTS > VEHICLE PARTS & ACCESSORIES > WATERCRAFT PARTS & ACCESSORIES Tag: Electrical | DC to DC Converters
  • 102605XL
  • 101870XL
Description

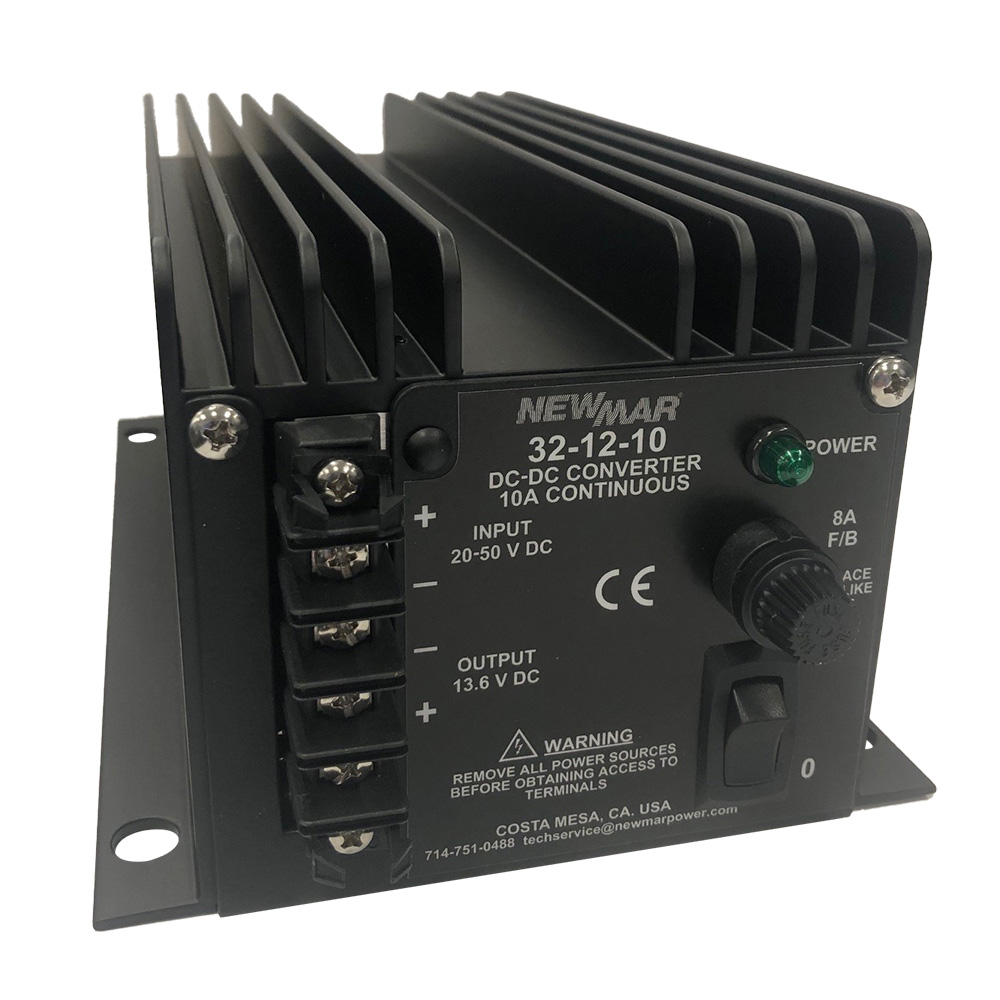

NEWMAR 32-12-10 DC CONVERTER
102302XL

32-12-10 DC ConverterConvert 20-50 VDC input to 12 VDC negative ground output for powering communication and navigation equipment on negative ground systems. (See Isolated Series for positive ground applications.)Features:Excellent Regulation: Output voltage maintained within 1% under all line and load conditions within the ratingThe heat generated by semi-conductors is extracted and dissipated by large heat sink fins that maximize air contact for cool operation and the long life of componentsPolyurethane conformal coating on PC boards and corrosion-resistant anodized aluminum cases with heavy-duty shock mounts assure survival in hostile environmentsNumerous Converter and Load Protection Circuits:Current limitingAutomatic thermal shutdownShort circuit proofReverse polarityOvervoltage protectionCarries CE markSpecifications:Input Voltage: 20-50Output Voltage: 13.6Output Amps (Intermittent): 10Output Amps (Continuous): 10Case Size (H x W x D): 4.5 x 5.9 x 11.0 inches (11.4 x 15.0 x 27.9 centimeters)Weight: 4 lb. (1.8 kg)Output: 13.6 VDC (internally adjustable 12.6 -14.5) or 24.5 VDC (or specify)Ripple: 150 mV P-P maximumRegulation: 1% Line/LoadSwitching Frequency: 40 kHzEfficiency: 85% – Typical.Isolation: Output/Chassis; Input/chassis: 250 VDCDuty Cycle Ratings*:Intermittent: 20 minutes max on time, 20% duty. current limit set at approx. 105% of intermittent rating.Continuous: 24 hours, 100% duty *24-12-3: 2-minute max. on timeIdle Current: Less than 100 mA (including power “ON” light)Operating Temp Specifications:0-50 degrees C, Derate Linearly From 100% @ 40 degrees C To 50% @ 50 degrees C.Thermal shutdown @ 70 degrees C Case TemperatureModel 24-12-3: Full output -25 degrees to +30 degrees C; Derate linearly from 100% @ +30 degrees C to 45% @ +50 degrees CMechanical Specifications:Powder-coated aluminum heat sink caseFront panel terminal blockHeavy-duty mounting flangeConformal coated PC boardOptions:Operation as a battery charger or parallel redundant operation* – derate to continuous duty rating (contact factory)Extreme vibration mounting kit. (Information below)Option: Extreme Vibration Mounting KitThe Extreme Vibration Mounting Kit is available to protect NEWMAR power converters from the extreme stresses of shock and vibration when mounted on high-vibration vehicles. The kit replaces the standard vibration kit provided with the unit and fits into the unit’s mounting flange to act as a ‘super shock absorber’ for electronics in high-vibration applications. It is available to fit all NEWMAR units from 2 to 70 lbs. Specify KIT L for units that weigh 2–15 lbs. and Kit H for units that weigh 16–7 lbs.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Product SKU: 102302

Product Brand: Newmar Power

Product Currency: $

Product Price: 500.86

Price Valid Until: 1970-01-01

NEWMAR 32-12-10 DC CONVERTER

32-12-10 DC Converter

Convert 20-50 VDC input to 12 VDC negative ground output for powering communication and navigation equipment on negative ground systems. (See Isolated Series for positive ground applications.)

Features:

  • Excellent Regulation: Output voltage maintained within 1% under all line and load conditions within the rating
  • The heat generated by semi-conductors is extracted and dissipated by large heat sink fins that maximize air contact for cool operation and the long life of components
  • Polyurethane conformal coating on PC boards and corrosion-resistant anodized aluminum cases with heavy-duty shock mounts assure survival in hostile environments

Numerous Converter and Load Protection Circuits:

  • Current limiting
  • Automatic thermal shutdown
  • Short circuit proof
  • Reverse polarity
  • Overvoltage protection
  • Carries CE mark

Specifications:

  • Input Voltage: 20-50
  • Output Voltage: 13.6
  • Output Amps (Intermittent): 10
  • Output Amps (Continuous): 10
  • Case Size (H x W x D): 4.5 x 5.9 x 11.0 inches (11.4 x 15.0 x 27.9 centimeters)
  • Weight: 4 lb. (1.8 kg)
  • Output: 13.6 VDC (internally adjustable 12.6 -14.5) or 24.5 VDC (or specify)
  • Ripple: 150 mV P-P maximum
  • Regulation: 1% Line/Load
  • Switching Frequency: 40 kHz
  • Efficiency: 85% – Typical.
  • Isolation: Output/Chassis; Input/chassis: 250 VDC

Duty Cycle Ratings*:

  • Intermittent: 20 minutes max on time, 20% duty. current limit set at approx. 105% of intermittent rating.
  • Continuous: 24 hours, 100% duty *24-12-3: 2-minute max. on time
  • Idle Current: Less than 100 mA (including power “ON” light)

Operating Temp Specifications:

  • 0-50 degrees C, Derate Linearly From 100% @ 40 degrees C To 50% @ 50 degrees C.
  • Thermal shutdown @ 70 degrees C Case Temperature
  • Model 24-12-3: Full output -25 degrees to +30 degrees C; Derate linearly from 100% @ +30 degrees C to 45% @ +50 degrees C

Mechanical Specifications:

  • Powder-coated aluminum heat sink case
  • Front panel terminal block
  • Heavy-duty mounting flange
  • Conformal coated PC board

Options:

  • Operation as a battery charger or parallel redundant operation* – derate to continuous duty rating (contact factory)
  • Extreme vibration mounting kit. (Information below)

Option: Extreme Vibration Mounting Kit

The Extreme Vibration Mounting Kit is available to protect NEWMAR power converters from the extreme stresses of shock and vibration when mounted on high-vibration vehicles. The kit replaces the standard vibration kit provided with the unit and fits into the unit’s mounting flange to act as a ‘super shock absorber’ for electronics in high-vibration applications. It is available to fit all NEWMAR units from 2 to 70 lbs. Specify KIT L for units that weigh 2–15 lbs. and Kit H for units that weigh 16–7 lbs.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
