Description

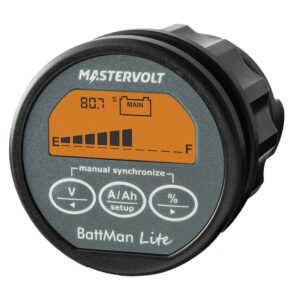

MASTERVOLT BATTMAN LITE BATTERY MONITOR 12/24V
BattMan Lite Battery Monitor – 12/24V
Battery monitor, 12/24 V DC with large, splash-proof display (IP65) and power bar.
An affordable battery monitor that does exactly that: providing critical information about the status of your battery bank under all circumstances. Moreover, it will warn you when your battery bank is empty.
General Specifications:
- Number of battery outlets: 2; service (fully), starter (voltage)
- Display/read-out: Voltage, current, amp-hours, battery capacity in %
- Languages on display: Universal
- Built-in depth: 72.5 mm/2.9 inch
- Dimensions: Ø 64 mm, depth 79 mm
- Dimensions shunt, hxwxd: 87 x 45 x 35 mm/3.4 x 1.8 x 1.4 inch
- Weight: 0.15 kg/0.3 lb
Technical Specifications:
- Max. Ah capacity: 9999 Ah
- Supply voltage: 9-35 V
- Voltage range: 0-35 V
- Current consumption (backlight off): 8 mA/12 V, 6 mA/24 V
- Current consumption (backlight on): 30 mA/12 V, 18 mA/24 V
- Voltage resolution: 0.1 V
- Voltage accuracy: ± 0.3%
- Shunt specification: 500 A/50 mV (service set)
- Current measurement range: 0-500 A
- Current accuracy: ± 0,4 %
- Battery alarm contact: Yes, potential free
- Remaining time indication: No
- Historical data: No
- MasterBus compatible: No
- Connection cable (6-wire) necessary: Yes
- Modular cable necessary: No
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
