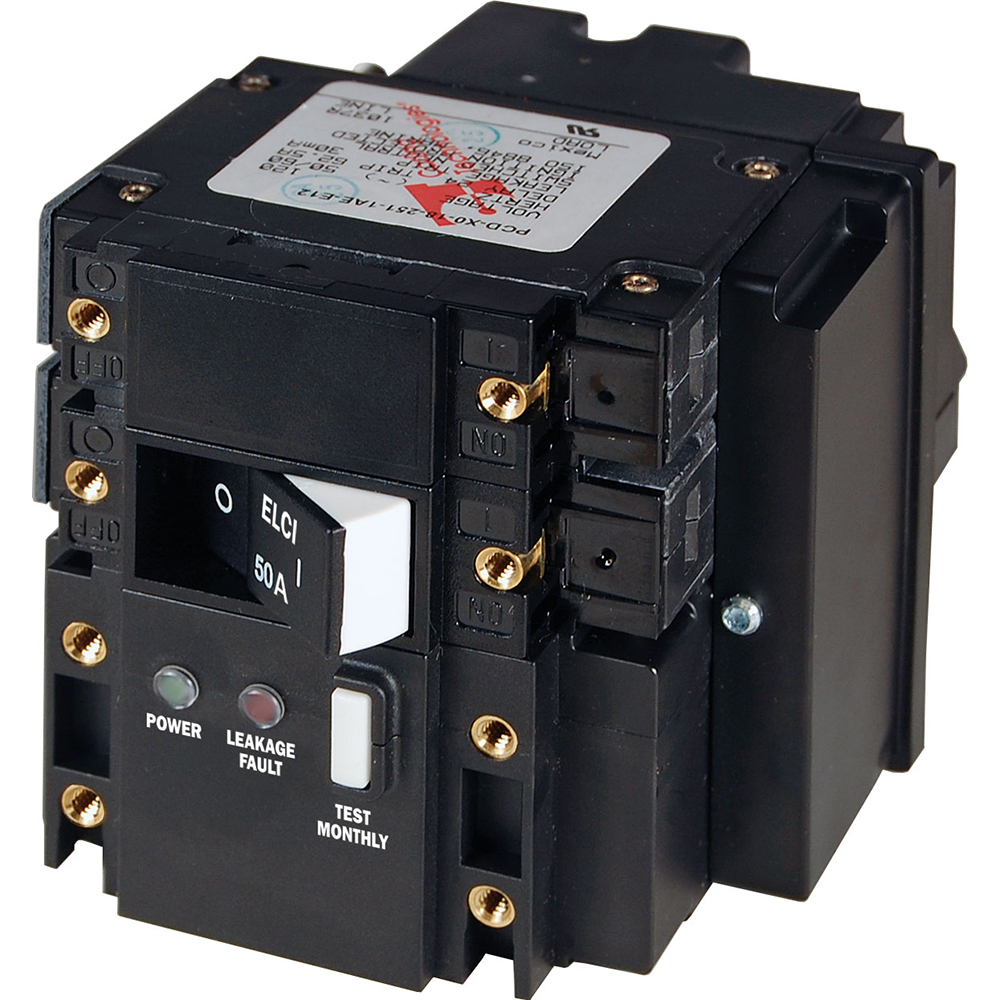

Blue Sea C-Series ELCI Main Circuit Breaker – Double Pole 120V AC 50A

BLUE SEA 3103 ELCI MAIN CIRCUIT BREAKER 50A 120V

C-Series ELCI Main Circuit Breaker – Double Pole 120V AC 50A

Features:

• Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
• Meets UL 1500 external ignition protection requirements
• Trips on short circuit, overload, or leakage to ground
• Front panel mount—installed in a power distribution panel

Specifications:

• Amperage: 50A
• Actuator Style: Flat Rocker
• Poles: 2
• Ignition Protected: Yes
• Max Voltage: 120VAC per pole
• Circuit Breaker Type: Magnetic Hydraulic – trip free
• Interrupt Capacity: 5000A
• Minimum Operating Temperature: -35 degrees C
• Max Operating Temperature: 66 degrees C
• Leakage Trip Amps: 30mA
