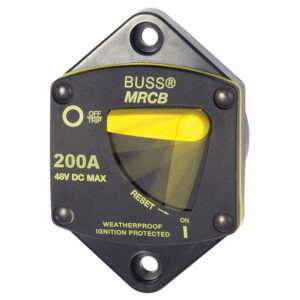

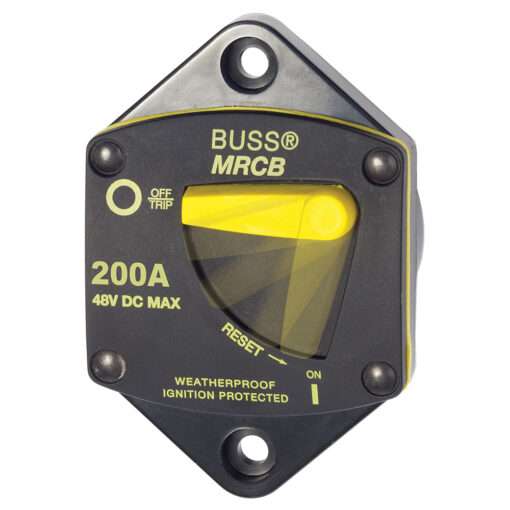

Blue Sea 7049 200 Amp Panel Mount 187 Series Circuit Breaker

7049 200 Amp Panel Mount 187 Series Circuit Breaker

Features:

• Combines switching and circuit protection into a single device*

• Clear, single lever operation

• "Trip Free" design cannot be held "ON" during fault current condition

• Waterproof

• Recessed mounting holes for clean appearance

• Large Clearance around terminal studs accecpt heavy gauge wire lugs

• Robust 5/16 M8 terminals provide high torque connections

• Large lever with vertical/horizontal orientation provides indication of trip status

• Ignition protected - Safe for installation aboard gasoline powered boats

Specifications:

• Interrupt Rating - 5,000 A@12V DC, 3,000A@24V DC, 1,500A@42V DC

• Maximum Voltage Rating - 48 Volts DC

• Operating Temperature Range - -40xC to 85xC

• Circuit Breaker Type - Thermally responsive bi-metal blade

• Circuit Breaker Class - Type III - switchable/manual reset - trip free

• Terminal Stud Size - 5/16"-18

• Terminal Stud Torque - 75 in-lb

• Mounting Holes - Accept #10 (M5) Screw

• Weight Lb (Kg) - 0.50 (0.23)

• Case Material - Thermoset Polyester

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Product SKU: 40597

Product Brand: Blue Sea Systems

Product Currency: USD

Product Price: 85.23
