Description

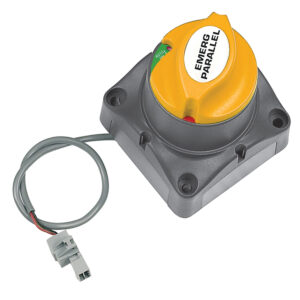

BEP DUAL OPERATION VSS AND EMERGENCY PARALLEL 275A
Emergency Parallel Switch - 12/24V - 275A
This Motorized Switch offers remotely activated, high current, emergency parallel connection suitable for emergency starting of large engines (up to 2500A for 10 seconds).
The emergency parallel functionality is conveniently operated via a momentary button on the dash, which when activated, will parallel the batteries for 10 minutes. Once the 10 minutes has passed, the switch turns off, removing the risk of start batteries becoming flattened following a parallel switch being inadvertently left on.
Designed and constructed for the harsh marine environment, utilizing tinned copper conductors, stainless steel nuts, and high temperature, fiber reinforced plastics to ensure longevity. The units are ignition protected, provide On/Off switching operation, and may be recessed or surface mounted.
Features:
- 12/24 volt operation (both battery banks must be same voltage)
- Manual override option
- 10 minute remotely activated emergency parallel function (no voltage sensitive function)
Technical Specifications:
- Volts - 12/24V
- Rating - 275A
- Dimensions (L x W x H) - 2.7" x 2.7" x 4"
In the Box:
- Parallel Switch
- Instruction manual
*Sold as an Individual
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product SKU: 58649
Product Brand: BEP Marine
Product Currency: USD
Product Price: 135.74
Price Valid Until: 1970-01-01
BEP DUAL OPERATION VSS AND EMERGENCY PARALLEL 275A
Emergency Parallel Switch – 12/24V – 275A
This Motorized Switch offers remotely activated, high current, emergency parallel connection suitable for emergency starting of large engines (up to 2500A for 10 seconds).
The emergency parallel functionality is conveniently operated via a momentary button on the dash, which when activated, will parallel the batteries for 10 minutes. Once the 10 minutes has passed, the switch turns off, removing the risk of start batteries becoming flattened following a parallel switch being inadvertently left on.
Designed and constructed for the harsh marine environment, utilizing tinned copper conductors, stainless steel nuts, and high temperature, fiber reinforced plastics to ensure longevity. The units are ignition protected, provide On/Off switching operation, and may be recessed or surface mounted.
Features:
- 12/24 volt operation (both battery banks must be same voltage)
- Manual override option
- 10 minute remotely activated emergency parallel function (no voltage sensitive function)
Technical Specifications:
- Volts – 12/24V
- Rating – 275A
- Dimensions (L x W x H) – 2.7″ x 2.7″ x 4″
In the Box:
- Parallel Switch
- Instruction manual
*Sold as an Individual
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
You have questions please contact us
Additional information
| Weight | 0.8 lbs |
|---|---|
| Dimensions | 4 × 3 × 3 in |
| Brand | BEP Marine |
| Manufacturer Part Number | 80-701-0018-00 |
| Model | 80-701-0018-00 |
| UPC | 843687000655 |
| Country | NEW ZEALAND |
| Type | BEP Marine |
